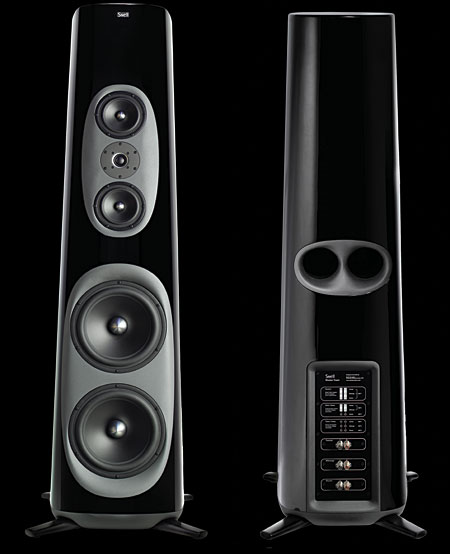

Snell Illusion loudspeaker Specifications

Sidebar 1: Specifications

Description: Three-way, reflex-loaded, floorstanding loudspeaker. Drive-units: 1" (25mm) silk-dome tweeter, two 5.25" (135mm) magnesium-cone midrange units, two 10" (250mm) magnesium-cone woofers. Crossover frequencies: 250Hz, 2.5kHz. Frequency response: 27Hz–40kHz, ±3dB. Sensitivity: 89dB/2.83V/m. Impedance: 4 ohms. Recommended power: 250–1000Wpc. Maximum output level per pair: 111dB.
Dimensions: 59" (1499mm) H by 15" (381mm) W by 21" (533mm) D. Weight: 178 lbs (77kg).
Finishes: High-gloss automotive black under multicoated, hand-rubbed clear lacquer; other custom colors using high-gloss automotive paint, add 20% to cost.
Serial Numbers Of Units Reviewed: CF0109, CF0110.
Price: $50,000/pair. Approximate number of dealers: 15. Warranty: 5 years, transferable.
Manufacturer: Snell Acoustics, PO Box 3717, 300 Jubilee Drive, Peabody, MA 01961-3717. Tel: (978) 538-6262 Fax: (978) 538-6266. Web:

Snell Acoustics
PO Box 3717, 300 Jubilee Drive
Peabody, MA 01961-3717
(978) 538-6262
