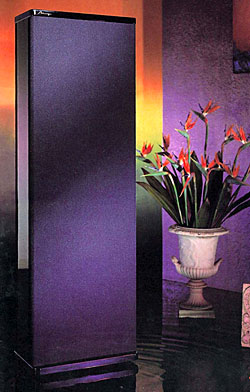

Mirage M-1si loudspeaker Specifications

Sidebar 4: Specifications

Description: Three-way, reflex-loaded, bipolar loudspeaker system. Drive-units: two 1" (25.5mm) titanium hybrid-dome tweeters, two 5" (127mm) injection-molded polypropylene-cone midranges, two 8" (203mm) Polyflex treated, carbon-filled polypropylene-cone woofers with 1.5" (38mm) voice-coils. Crossover frequencies: 400Hz, 2kHz. Frequency response: 25Hz–33kHz ±2dB (on-axis), 25Hz–20kHz ±2dB (30° off-axis). Usable bass response: –10dB at 17Hz. Sensitivity: 82dB at 2.83V (1m), anechoic, 86dB in-room. Nominal impedance: 6 ohms, 4 ohms minimum. Amplifier requirements: 150–500Wpc RMS.
Dimensions: 59.8" (1523mm) H by 19.3" (491mm) W by 9.5" (242mm) D. Weight: 185 lbs (84kg) each.
Serial numbers of units tested: 003188 Left & Right.
Price: $5500/pair (1993); no longer available (2007). Approximate number of dealers: 100.
Manufacturer: Mirage Loudspeakers, Division of Audio Products International Corp., 3641 McNicoll Avenue, Scarborough, Ontario M1X 1G5, Canada. Tel: (416) 321-1800. Fax: (416) 321-1500. Web: www.miragespeakers.com.

Mirage Loudspeakers
3641 McNicoll Avenue
Scarborough, Ontario M1X 1G5
(416) 321-1800
