Audio Note AN-E Lexus Signature loudspeaker Page 2

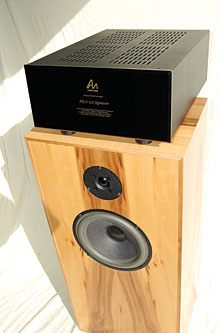

I could write at least 1000 words on the AN-E's appearance and not be done with the subject. Aesthetically, the Lexus Signature is a refreshingly simple thing, yet the depth and complexity in the grain of its flamey maple veneer—every surface comprises two flip-matched pieces—make it look as rich as it is serene. There's something else that sets the AN-E's cabinetry apart from the norm, although it took me a while to realize what it was: Apart from the two drivers, the front baffle is undisturbed by anything else, including the visual blight of those cheap-looking plastic sockets for a grille that no one wanted in the first place.


Before I began making serious notes on all of the serious listening that lay ahead, I used the AudioControl SA3050 spectrum analyzer to help fine-tune the Audio Notes' placement in my main listening room, and to give graphic evidence of their best-case performance. Bear in mind that Peter Qvortrup intends for these speakers to be installed close to the wall behind them—preferably in the corners—for maximum bass reinforcement (footnote 3). I tried that, and while I was amazed by their extension—flat to 25Hz!—I simply didn't care for their spatial presentation that way, being more used to a nearfield experience with my Quad electrostatic panels. I proceeded to move the Es away from their corners a little at a time, listening and measuring to ensure that other aspects of their response didn't suffer as well. (I have nothing but sympathy for the manufacturer whose products are reviewed in an incorrect manner and then condemned for the shortcomings that ensue.) I can say with confidence that an AN-E Lexus Signature, positioned approximately 4' from the wall behind it and a little more than 2' from the sidewall, exhibited the same basic frequency response as when standing in the corner—except, of course, for that bottom octave.

As to which: In my room, with the AN-Es out of the corners, it was possible to get a generally smooth response curve, flat down to 40Hz. The only significant shortcomings were a dip centered at 2.5kHz, and a more severe one at 50Hz that may have been room-related.

The first notes I wrote about the AN-E Lexus Signatures—which their distributor had already broken in during various shows and demonstrations—centered around the fact that they sounded "immediate, tactile, emotive, and above all, musically right [I underlined the last word so forcefully that the ink came out on the page below], all without being in-your-face, overbearing, or anything even approaching bright or brittle." A month and a half later, my enthusiasm has only increased.

Listening to "Time Has Told Me," from Nick Drake's Five Leaves Left (CD, Island 422 842 915-2), through the Audio Notes was an absolutely wonderful experience. The realistic sibilance of Drake's voice in the middle eight was pleasantly startling, and every note in Richard Thompson's electric guitar part was a joy. And on good recordings of more straightforward rock—try almost any song from Classic Records' great LP reissue of Neil Young's Greatest Hits (Reprise 48935-1)—the sound of the electric bass was deep, full, and strong, with believable timbre and excellent clarity of attack. The Es were also excellent in their sense of sheer impact, as in the percussion on that album's "Heart of Gold": That sound was more forceful and dramatic through the Audio Notes than either my Quad ESL-989s or my comparatively bass-shy Lowther horns.

Throughout their time here I was consistently impressed by how loudly the Audio Notes could play, and by how utterly big they could sound when doing so with orchestral music. There was something of a disconnect, seeing those not-terribly-large speakers with their 1" tweeters in front of me, yet hearing them make flutes sound like real instruments moving reasonable amounts of air, and not like precise little images in some audio nerd's fantasy-ass "soundstage." The crescendo at the end of János Starker and Antal Dorati's recording of Dvorák's Cello Concerto (a recent and brilliant Speakers Corner LP reissue of Mercury SR90303) showed that off especially well—as did Ruggiero Ricci and Ølvin Fjelstadt's wonderful recording of the Sibelius Violin Concerto, also on a Speakers Corner LP (Decca SXL 2077).

Also on orchestral music, the overall spatial quality of the Audio Note AN-E Lexus Signatures was closer than usual to the way I hear things in the concert hall—although it must also be said that a great many speakers are "better" at stereo imaging, in the accepted sense, than these (not the least of which being my own Quad ESL-989s). With Cecile Ousset's early-1980s recording of Poulenc's Piano Concerto (LP, EMI ASD 1077851), the Audio Note speakers suggested that the piano was clearly in front of the woodwinds, the woodwinds were more or less in the center of things, the violins were off to the left somewhere (the whole section seemed to be at an angle relative to the rest of the orchestra), and the brass instruments, which Poulenc used to such wonderful, colorful effect in this piece, were off on the other side and a little ways back. And that's about all. But I found the experience to be satisfying because it was completely real and no more; on the other hand, if you're the sort of listener who uses a hi-fi as a homing device for the sounds of loose cufflinks and bows hitting music stands, these might not be for you.

If that sounds glib, I assure you that I haven't been glib enough: The AN-E told me more about the changes in Mlle. Ousset's intensity—having met her and heard her live, I know how powerful a performer she can be—than the vast majority of speakers I've auditioned, the only exceptions being my Lowthers and a few other horns. I'll take emotion over location any old day.

All the above applies to the AN-E Lexus Signatures' performance in my regular listening room, which measures 12' by 18' with an 8' ceiling. I also tried them in my significantly larger living room (20' by 27'), where I did wind up placing the speakers very close to the long wall behind them (though not in the corners), toed-in rather drastically and separated from one another by a little more than 14'. If they sounded big in my smaller room, they were positively huge in the larger one—yet their spatial abilities, such as they were, didn't suffer at all. As a matter of fact, given the opportunity to spread the sound of a drum kit over several feet, certain good pop and jazz recordings revealed imaging details I'd never before noticed. And fine old mono recordings—including a fun Italian CD of Birgit Nilsson and Hans Hotter performing Wagner's Die Walküre at Bayreuth under Joseph Keilberth (Melodram MEL 36102)—emanated from the exact center of the space between the speakers, good physical scale notwithstanding: This wasn't the amorphous sonic blob that certain other speakers present in that space.

Piano recordings were also immensely enjoyable through the Audio Notes in the big room, where the instrument was allowed a greater-than-average sense of physical presence, while at the same time avoiding an exaggeration of its size. The only drawback: With the sound spread out like that, it was easier to pick up on the kinds of small frequency-response glitches that gave some notes in the left hand a bit more or less prominence than others. I don't think the average listener would consider the Lexus Signature to be severely colored, and it's surely more neutral than, say, the Hørning Perikles ("Listening," February 2006), a fine speaker in its own right. But people who are sensitive to departures from perfectly flat frequency response should consider themselves forewarned.

On one of their last nights here, back in my smaller listening room, I used the Audio Note AN-E Lexus Signatures to play David Grier's I've Got the House to Myself (CD, Dreadnought 0201), and skipped to the Civil War–era fiddle tune "The Girl I Left Behind Me." Eight or so bars in, my attention was completely captured by how real the performance sounded—not in the Quad sense of heightened neutrality, transparency, and spatial precision (fine though those things are!), but real in the sense that the notes started, flowed, and stopped in a manner that was eerily convincing, for hi-fi. It was also dynamic as all get-out.

Then, at almost the same moment, my wife walked into the hi-fi room from where she was scouring pans or some such thing, and asked, "What's this?" I told her it was the most recent David Grier CD. She paused for a moment, then said—and I swear this is true—"For a minute I thought it was you playing." ("The Girl I Left Behind Me" is in my own humble picking repertoire, although I know that my efforts and Grier's are about as far apart as you can get and still be on the same planet. In fact, now that I think about it, I heard something else in my wife's voice that night: an implied question, wondering how my playing had got so much better all of a sudden.)

I don't mean to suggest that the Lexus Signature is the sort of product that impresses every time out; there are lots of things like that in the audio world, some of which are charming or truthful or soulful enough that their appeal lasts longer than a few months, though the majority of which are not. The Audio Notes are on a different plane altogether: easy, adaptable, and, in the best sense, mostly invisible. That they manage all that while being compatible with the very-low-power amps that some of us love is a heck of a thing.

Who would've thought? Who would've guessed that a speaker so unassuming, and so steeped in quiet tradition, might be the one that a whole subset of our hobby has been looking for all this time?

Anyone with this kind of money who's looking for a very musical and exceptionally efficient loudspeaker simply must try the Audio Note AN-E Lexus Signature: It's joined the Lowther horns and Quad electrostats as one of the very few speakers I know I could live with and love, indefinitely. (Interesting how the youngest of the three basic designs is already a quarter-century old—and the oldest is close to three times that!) Similarly, it seems at least reasonable to ask if other, less expensive models in the same E line—which range in price down to $4300/pair, for the 94dB-sensitive AN-E LX—might also deserve the attention of single-ended-triode enthusiasts.

I used to wonder if there'd ever come a day when I could write about a SET amplifier without framing it as an oddity: an electric car, a green cocktail, an American who doesn't have a credit card. The answer is yes—but only when speakers like this are more common.

Footnote 3: For the newbie: This isn't a horn effect, but rather a simple means of countering the difficulty that a small loudspeaker has when it tries to disperse low-frequency sounds toward the listener. (As notes descend below the frequency whose half-wavelength equals the diameter of the radiating surface, dispersion becomes increasingly spherical and nondirect.) To place a loudspeaker near one or more room boundaries is to close off that many paths to the meandering low-frequency waveform, and thus increase the likelihood that bass energy will make its way to the listening area.—Art Dudley
Audio Note
US distributor: Audio Federation
Boulder, CO 80308
(303) 546-6503

Jack L's picture

...... Peter Qvortrup builds this model's crossovers into individual outboard enclosures." quoted Art Dudley.

Outboard x-over is not new at all. Back over 2 decade or so, B&W produced a DM serie 2-way small floor loudspeaker with a metal-cased outboard x-over.

Well prior to this B&W, I already upgraded my KEF 2-way stand loudspeakers at home by taking out the lousy tiny factory X-over board & rebuilt it to by-wiring, replacing all the cheapie electrolytic capacitors with high power non-polar metal-film polypropylene capacitors. I placed this outboard x-over housed in an non-metellic box right behind my tube power amp so that the speaker cable wiring between the x-over box & the power amp are shortened to minimum.

It works like a chime since day one of the bi-wiring outboard upgrade.
Nite & day improvement in the sound.

Jack L
