Cayin A-50T integrated amplifier Specifications

Sidebar 1: Specifications

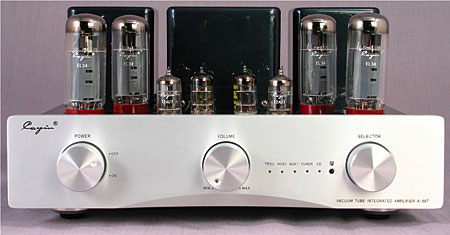

Description: Vacuum-tube, remote-controlled integrated amplifier with four line-level inputs. Tube complement: four Mullard EL34, two 12AX7EH, two 12AUX7EH. Output transformer taps: 4, 8 ohms. Power output into 8 ohms: 35W Ultralinear (15.3dBW), 16W Triode (12dBW). Frequency response: 10Hz–50kHz, ±1dB. Input sensitivity: 370mV. Input impedance: 100k ohms. THD: 1.0% (1kHz). Signal/noise: 89dB. Power consumption: 280W.
Dimensions: 14" (360mm) W by 12" (310mm) H by 7" (180mm) D. Weight: 28.6 lbs (13kg).
Serial Number Of Unit Reviewed: 05060811.
Price: $1295. Approximate number of dealers: 45. Warranty: 90 days tubes, 3 years parts & labor.
Manufacturer: Zhuhai Spark Electronic Equipment Co., 1195 East Jiuzhou Avenue, Zhuhai City, Guangdong Province, China. Tel: (86) 0756-382-8711. US distributor: VAS Industries, 1 Bethany Road, Building 1, Suite 16, Hazlet, NJ 07730. Tel: (732) 888-3288. Fax: (732) 888-2988. Web:

Zhuhai Spark Electronic Equipment Co.
US distributor: VAS Industries
1 Bethany Road, Building 1, Suite 16
Hazlet, NJ 07730
(732) 888-3288
