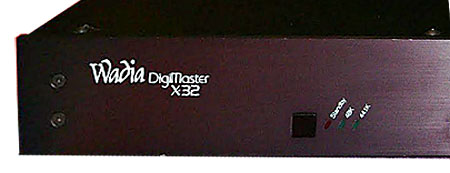

Wadia Digimaster X-32 digital processor Specifications

Sidebar 1: Specifications

Description: Decoding software: DigiMaster. Resampling rate: 32x. Resolution: 18 bits. Power bandwidth (–3dB): DC–20kHz. Passband ripple: none (monotonic). CPU power: 36-MIPS (Million Instructions Per Second). Inputs: two coaxial S/PDIF (Sony/Philips Digital Interface Format), one EIAJ optical fiber. Input sampling rates supported: 44.1kHz, 48kHz. Math resolution: 36-bit. Output buffer: monolithic "sledgehammer" with 400mA peak output current and 1300V/µs slew rate. Output level: 8dBV at full modulation. Channel isolation: >110dB at 1kHz. Interchannel phase error at 10kHz: <0.5°. Enclosure: 16-gauge steel. Power consumption: 30W standby, 45W operation.
Dimensions: 17" W by 2.5" H by 13.5" D.
Price: $1995. Approximate number of dealers: 70.
Manufacturer: Wadia Digital Corporation, 511 Second Street, Hudson, WI 54016. Tel: (715) 386-8116. Web: www.wadia.com.

Wadia Digital Corporation
511 Second Street
Hudson, WI 54016
(715) 386-8116
