Okto dac8 Stereo D/A processor Measurements

Sidebar 3: Measurements

I measured the Okto dac8 Stereo with my Audio Precision SYS2722 system (see the January 2008 "As We See It"). Apple's USB Prober utility identified the Okto as "dac8STEREO" from "OKTO RESEARCH" with the serial number string "000000." The USB port operated in the optimal isochronous asynchronous mode, and Apple's AudioMIDI utility revealed that the dac8 Stereo accepted 16- and 24-bit integer data sampled at all rates from 44.1kHz to 384kHz. The AES/EBU and coaxial S/ PDIF inputs accepted data sampled at rates up to 192kHz. The TosLink inputs were limited to sample rates of 96kHz and below.

The dac8 Stereo's maximum output level at 1kHz with the balanced outputs or the headphone outputs feeding a high 100k ohm load was 4.22V. The processor preserved absolute polarity (ie, was noninverting) from all its outputs. The balanced output impedance was the specified 50 ohms at all audio frequencies. Although the front-panel headphone jack's output impedance is specified as <0.1 ohm, I measured 8 ohms. Even so, the dac8 Stereo should have no problem driving low-impedance headphones.

As mentioned in the subjective part of the review, the dac8 Stereo offers a choice of seven FIR (finite impulse response) reconstruction filters for PCM data, labeled FRLP, SRLP, FRMP, SRMP, AFRLP, HFRMP, and BW (see the main text for what acronyms stand for). Fig.1 shows the AFRLP filter's impulse response with 44.1kHz data. It is typical of a conventional linear-phase filter with symmetrical ringing before and after the single full-scale sample. The impulse responses of the BW and FRLP filters were identical, while the SRLP filter had a much shorter impulse response (fig.2). The FRMP filter's impulse response (fig.3) offered a classic minimum-phase response, with all the ringing following the single high sample. The SRMP filter had less post-ringing than FRMP (fig.4), while the HFRMP's impulse response introduced a small amount of preringing (fig.5).

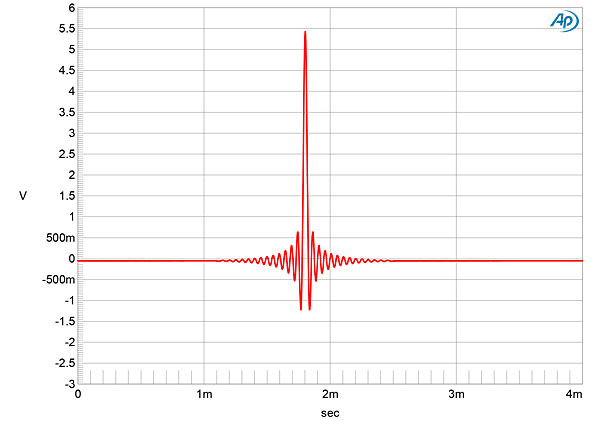

121Oktofig01

Fig.1 Okto dac8 Stereo, AFRLP filter, impulse response (one sample at 0dBFS, 44.1kHz sampling, 4ms time window).

121Oktofig02

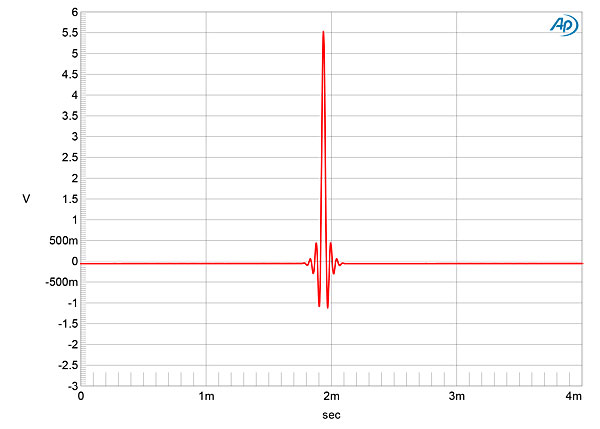

Fig.2 Okto dac8 Stereo, SRLP filter, impulse response (one sample at 0dBFS, 44.1kHz sampling, 4ms time window).

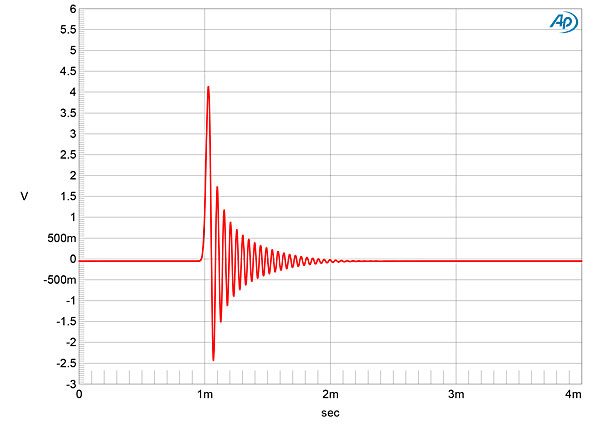

121Oktofig03

Fig.3 Okto dac8 Stereo, FRMP filter, impulse response (one sample at 0dBFS, 44.1kHz sampling, 4ms time window).

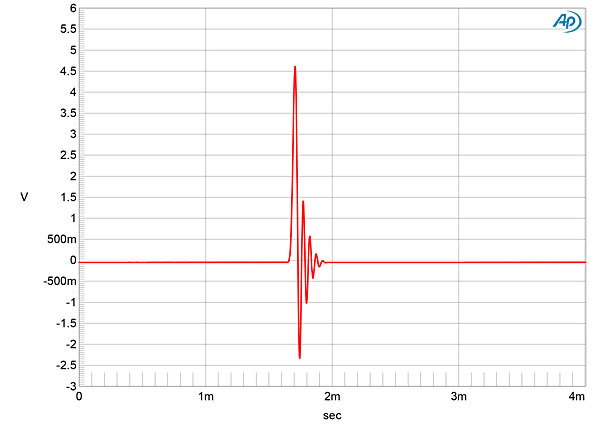

121Oktofig04

Fig.4 Okto dac8 Stereo, SRMP filter, impulse response (one sample at 0dBFS, 44.1kHz sampling, 4ms time window).

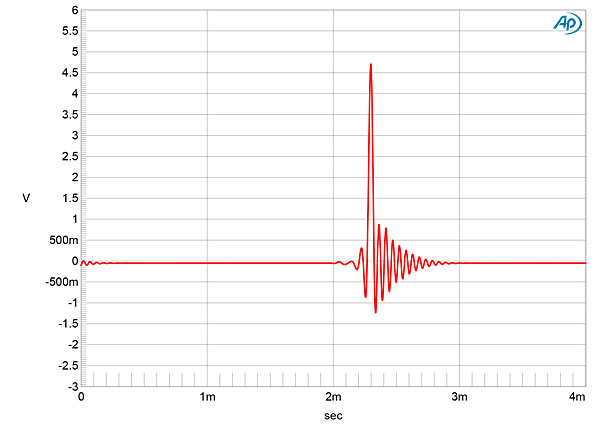

121Oktofig05

Fig.5 Okto dac8 Stereo, HFRMP filter, impulse response (one sample at 0dBFS, 44.1kHz sampling, 4ms time window).

The AFRLP filter's ultrasonic rolloff with 44.1kHz data (fig.6, magenta and red traces) confirms that it is an apodizing filter, as it reaches full stop-band attenuation at half the sample rate, shown by the vertical green line. The aliased image at 25kHz of a full-scale tone at 19.1kHz (cyan, blue) is suppressed by more than 100dB, though a higher-level, higher-order image can be seen at 69.1kHz (88.2–19.1kHz). The harmonics associated with the 19.1kHz tone are all very low in level. The BW and HFRMP filters behaved identically to the AFRLP filter except that the aliased image at 69.1kHz was absent (fig.7). Stop-band attenuation with the FRLP and FRMP filters was close to 24kHz, with no aliased images present, while the slower ultrasonic rolloff of the SRLP and SRMP filters allowed the image at 25kHz of the 19.1kHz tone to be readily seen (fig.8).

121Oktofig06

Fig.6 Okto dac8 Stereo, AFRLP filter, wideband spectrum of white noise at –4dBFS (left channel red, right magenta) and 19.1kHz tone at 0dBFS (left blue, right cyan) into 100k ohms with data sampled at 44.1kHz (20dB/vertical div.).

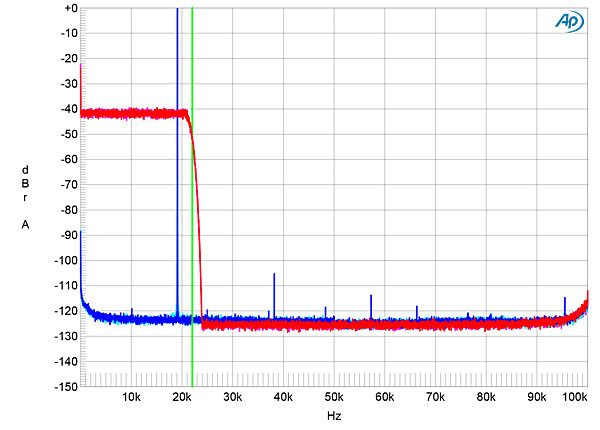

121Oktofig07

Fig.7 Okto dac8 Stereo, BW and HFRMP filters, wideband spectrum of white noise at –4dBFS (left channel red, right magenta) and 19.1kHz tone at 0dBFS (left blue, right cyan) into 100k ohms with data sampled at 44.1kHz (20dB/vertical div.).

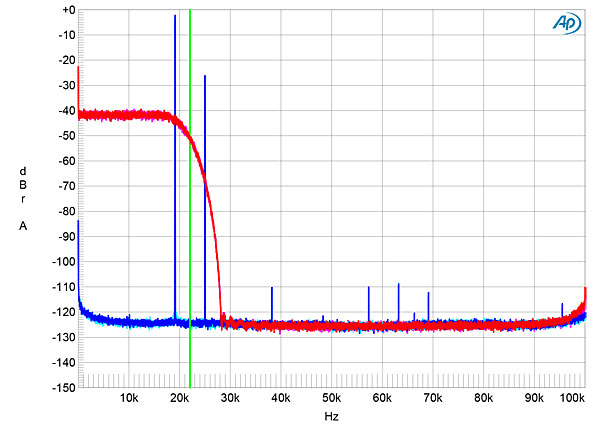

121Oktofig08

Fig.8 Okto dac8 Stereo, SRLP filter, wideband spectrum of white noise at –4dBFS (left channel red, right magenta) and 19.1kHz tone at 0dBFS (left blue, right cyan) into 100k ohms with data sampled at 44.1kHz (20dB/vertical div.).

Fig.9 compares the responses in the octave from 15kHz to 30kHz of the AFRLP, FRLP, and SRLP filters. The first two are flat up to 20kHz; the third starts to roll off above 17kHz, reaching –3dB at 20kHz. The HFRMP filter also starts rolling off early with 44.1kHz data (fig.10, green and gray traces), and some passband ripple can be seen with data sampled at 44.1, 96, and 192kHz. Some ripple was also present with the AFRLP filter but was absent with the other filters. Channel separation was superb, at >122dB in both directions below 3kHz, decreasing to a still superb 113dB at 20kHz.

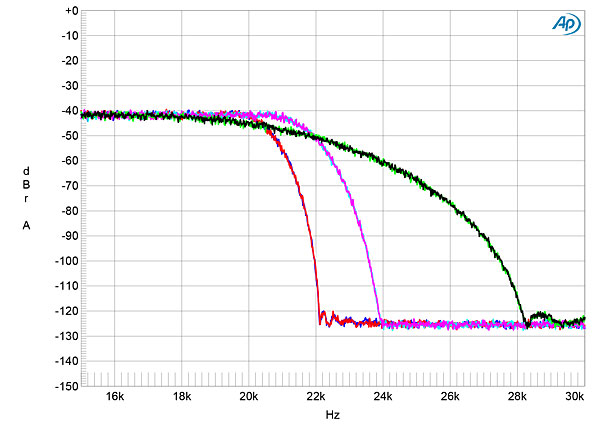

121Oktofig09

Fig.9 Okto dac8 Stereo, ultrasonic rolloff with wideband white noise at –4dBFS of AFRLP filter (left channel blue, right red), FRLP filter (left cyan, right magenta), and SRLP filter (left green, right gray) (linear frequency scale 15–30kHz, 20dB/vertical div.).

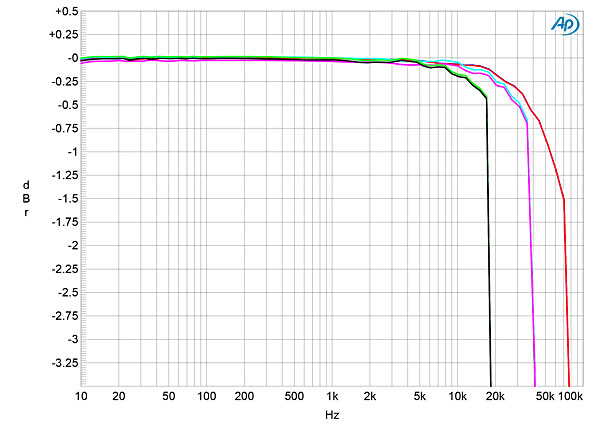

121Oktofig10

Fig.10 Okto dac8 Stereo, HFRMP filter, frequency response at –12dBFS into 100k ohms with data sampled at: 44.1kHz (left channel green, right gray), 96kHz (left cyan, right magenta), and 192kHz (left blue, right red) (1dB/vertical div.).

The DAC Stereo's noise floor was free from any power supply–related spuriae (fig.11). In fact, the noise floor with a full-scale 24-bit tone in this graph (blue and red traces) is actually that of the analyzer. Repeating the spectral analysis with 24-bit "digital black" data (cyan, magenta) revealed that the actual noise floor lay close to –160dBFS. An increase in bit depth from 16 to 24, with dithered data representing a 1kHz tone at –90dBFS, therefore dropped the dac8 Stereo's noise floor by 30dB (fig.12). This implies a resolution of 21 bits, which is both one of the highest I have encountered and equals that of the MBL N31 I reviewed in February 2018, the Weiss DAC502 I reviewed in August 2020, and the HoloAudio May I reviewed in September 2020.

121Oktofig11

Fig.11 Okto dac8 Stereo, spectrum with noise and spuriae of dithered 1kHz tone at 0dBFS with 24-bit data (left channel blue, right red) and with 24-bit "digital black" (left cyan, right magenta) (20dB/vertical div.).

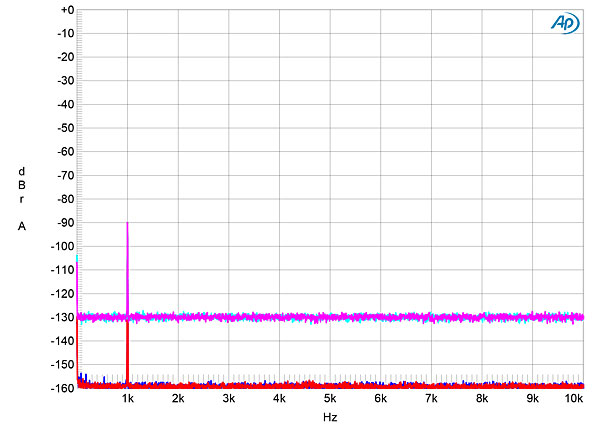

121Oktofig12

Fig.12 Okto dac8 Stereo, spectrum with noise and spuriae of dithered 1kHz tone at –90dBFS with: 16-bit data (left channel cyan, right magenta), 24-bit data (left blue, right red) (20dB/vertical div.).

The Okto DAC's linearity error was negligible to below –130dBFS (fig.13), and when I played undithered data representing a tone at exactly –90.31dBFS, the waveform was symmetrical, with negligible DC offset and the three DC voltage levels described by the data free from noise (fig.14). With undithered 24-bit data (fig.15), the dac8 Stereo's very low analog noise floor means it can output a clean sinewave, even at this very low signal level.

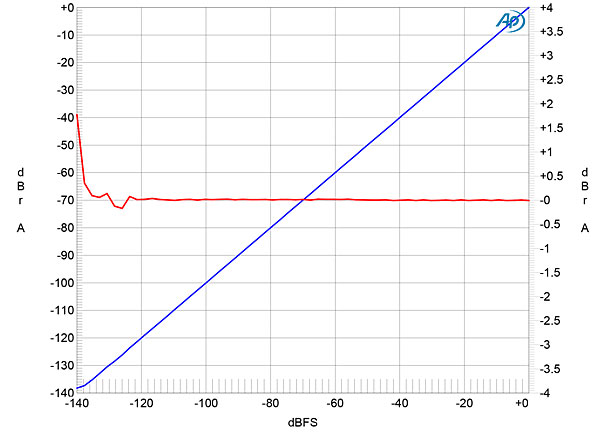

121Oktofig13

Fig.13 Okto dac8 Stereo, left channel, 1kHz output level vs data level in dBFS (blue, 20dB/vertical div.); linearity error (red, 0.1dB/small vertical div.).

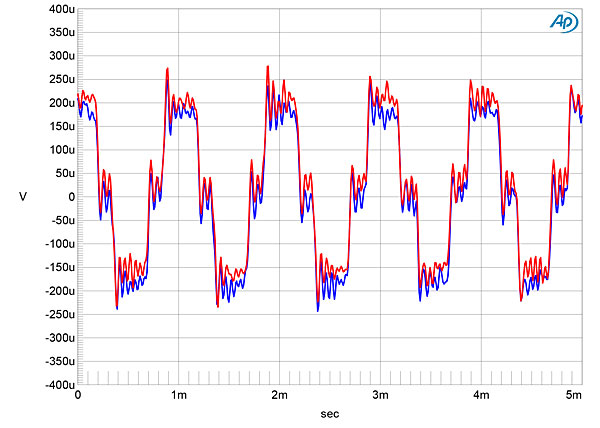

121Oktofig14

Fig.14 Okto dac8 Stereo, waveform of undithered 1kHz sinewave at –90.31dBFS, 16-bit data (left channel blue, right red).

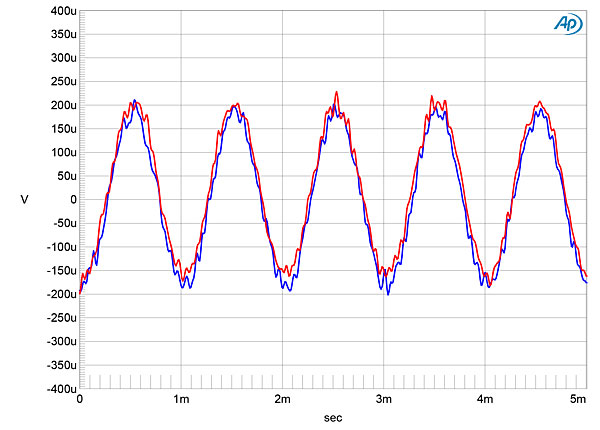

121Oktofig15

Fig.15 Okto dac8 Stereo, waveform of undithered 1kHz sinewave at –90.31dBFS, 24-bit data (left channel blue, right red).

The dac8 Stereo produced very low levels of harmonic distortion with full-scale data, challenging the resolution of my SYS222 analyzer. I therefore used the magazine's sample of Audio Precision's higher-performance APx555. The result is shown in fig.16. The third harmonic is the highest in level at just –120dB (0.0001%), with the second harmonic lying at –130dB (0.00003%) and some higher-order harmonics even lower in level. This spectrum was taken into the high, 100k ohm load. When I reduced the load impedance to the punishing 600 ohms, the level of the third harmonic stayed the same, though the second harmonic rose by a few dB. Intermodulation distortion with an equal mix of 19 and 20kHz tones, each lying at –6dBFS, was similarly very low (fig.17), with the difference tone at 1kHz lying at –130dB (0.00003%). This graph was taken with the AFRLP filter; the SRLP and SRMP filters allowed the aliased images of the primary tones to rise in level (fig.18), but the intermodulation products were still vanishingly low in level.

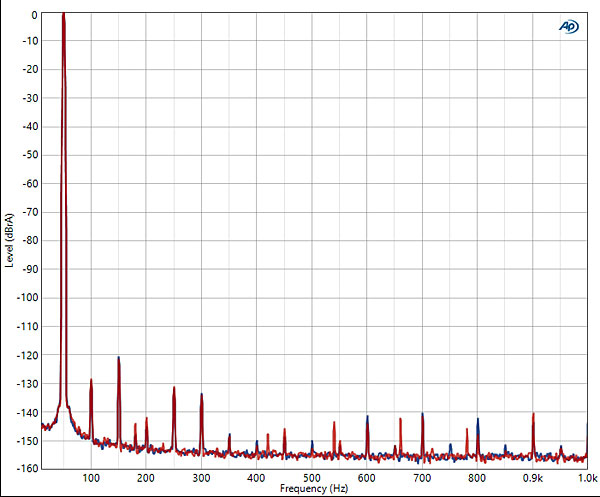

121Oktofig16

Fig.16 Okto dac8 Stereo, 24-bit data, spectrum of 50Hz sinewave, DC–1kHz, at 0dBFS into 200k ohms (left channel blue, right red; linear frequency scale).

121Oktofig17

Fig.17 Okto dac8 Stereo, AFRLP filter, 24-bit data, HF intermodulation spectrum, DC–30kHz, 19+20kHz at 0dBFS into 100k ohms, 44.1kHz data (left channel blue, right red; linear frequency scale).

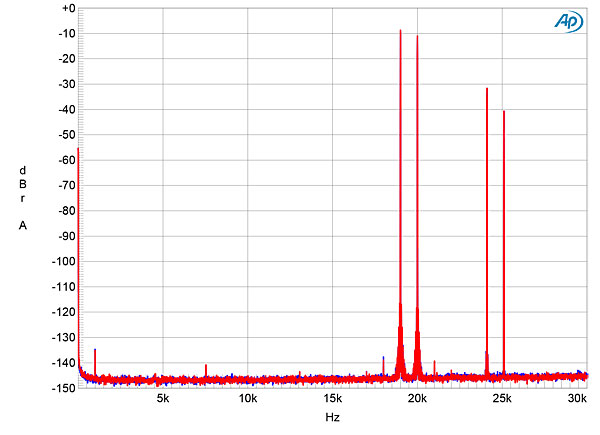

121Oktofig18

Fig.18 Okto dac8 Stereo, SRMP filter, 24-bit data, HF intermodulation spectrum, DC–30kHz, 19+20kHz at 0dBFS into 100k ohms, 44.1kHz data (left channel blue, right red; linear frequency scale).

Only when I examined the dac8 Stereo's rejection of word-clock jitter via its AES/EBU and S/PDIF inputs did it stumble a little. Fig.19 shows the spectrum of the dac8 Stereo's output when it was fed high-level, optical 16-bit J-Test data; the S/PDIF and AES/EBU inputs are similar. All the odd-order harmonics of the undithered low-frequency, LSB-level squarewave lie at the correct levels, indicated by the sloping green line, but a cluster of power supply–related sidebands can be seen surrounding the high-level tone at one-quarter of the sample rate. These sidebands disappeared with USB data (fig.20).

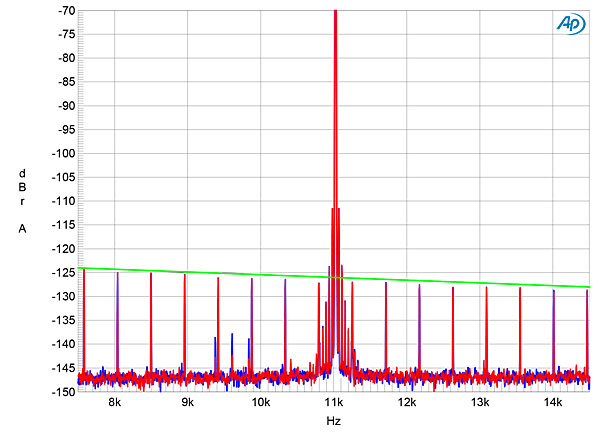

121Oktofig19

Fig.19 Okto dac8 Stereo, high-resolution jitter spectrum of analog output signal, 11.025kHz at –6dBFS, sampled at 44.1kHz with LSB toggled at 229Hz: 16-bit TosLink data (left channel blue, right red). Center frequency of trace, 11.025kHz; frequency range, ±3.5kHz.

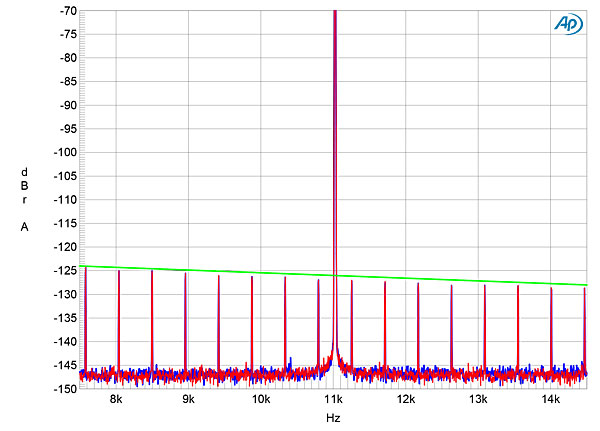

121Oktofig20

Fig.20 Okto dac8 Stereo, high-resolution jitter spectrum of analog output signal, 11.025kHz at –6dBFS, sampled at 44.1kHz with LSB toggled at 229Hz: 16-bit USB data sourced from MacBook Pro (left channel blue, right red). Center frequency of trace, 11.025kHz; frequency range, ±3.5kHz.

Okto's dac8 Stereo performed supremely well on the test bench.—John Atkinson
