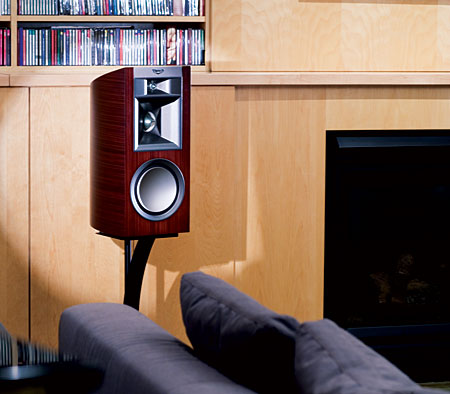

Klipsch Palladium P-17B loudspeaker Specifications

Sidebar 1: Specifications

Description: Three-way, stand-mounted, reflex-loaded loudspeaker. Drive-units: 0.75" (19mm) titanium-diaphragm compression tweeter with 90° by 60° Tractrix horn; 4.5" (114mm) aluminum-diaphragm compression mid-frequency driver with 90° by 60° Tractrix horn; 7" (178mm) aluminum-Rohacell-Kevlar cone woofer. Crossover frequencies: 600Hz, 3.4kHz. Enclosure material: constrained-layer MDF. Frequency response: 51Hz–24kHz, ±3dB. Power handling: 150W continuous, 600W peak. Sensitivity: 94dB/2.83V/m. Nominal impedance: 4 ohms. Maximum acoustic output (2 speakers in room): 115dB.
Dimensions: 19.7" (506mm) H by 9.1" (234mm) W by 13.4" (343mm) D. Weight: 30 lbs (13.6kg).
Finishes: Zebra-grain Linia veneer in Natural, Merlot, or Espresso stain.
Price: $4000/pair. Approximate number of dealers: 5.
Manufacturer: Klipsch Group, Inc., 3502 Woodview Trace, Suite 200, Indianapolis, IN 46268. Tel: (800) 544-1482, (317) 860-8100. Fax: (317) 860-9170. Web: www.klipsch.com.
