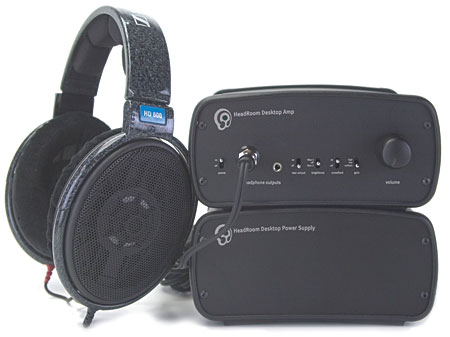

HeadRoom Desktop D/A headphone amplifier Specifications

Sidebar 1: Specifications

Description: Desktop headphone amplifier/line preamplifier with optional D/A module. Amplifier: Operating voltage: ±15VDC. Operating current: 50mA from each supply. Input impedance: approx. 70k ohm. Output impedance: approx. 0.5 ohm. Maximum output: 250mA. Maximum voltage gain: 19dB. DAC: Supported data formats: 16–24-bit/44.1, 48, 96kHz. Supported physical interfaces: TosLink, coaxial, USB.
Dimensions: 6.25" (160mm) W by 3.25" (83mm) H by 6.25" (160mm) D. Weight: 1.4 lbs (0.6kg).
Serial Number Of Unit Reviewed: None visible.
Prices: $2095 (total, fully loaded Desktop amp with Max electronics module, Max DAC, Alps RK50 stepped attenuator, Desktop power supply). Options: Desktop headphone amplifier, standard: $599. Electronics modules: Desktop, standard; Home, $199; Max, $499. DACs: Desktop, $249; Home, $299; Max, $399. Alps RK50 stepped attenuator: $199. Desktop Power Supply, $399. Approximate number of dealers: mail-order only. Warranty: 2 years, parts & labor.
Manufacturer: HeadRoom, 2020 Gilkerson Drive, Bozeman, MT 59715. Tel: (800) 828-8184 (US), (406) 587-9466 (international). Fax: (406) 587-9484. Web: www.headphone.com.
