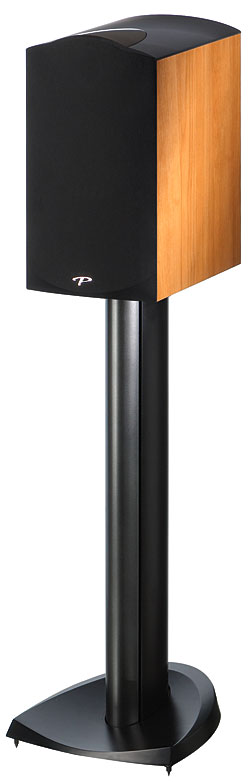

Paradigm Reference Studio/20 loudspeaker Specifications

Sidebar 1: Specifications

Description: Two-way, reflex-loaded, stand-mounted loudspeaker. Drive-units: 1" (25mm) ferrofluid-cooled G-PAL–dome tweeter with die-cast chassis, 7" (178mm) S-PAL–cone woofer with 11/2" (38mm) voice-coil and die-cast chassis. Crossover: second-order electro-acoustic at 2.0kHz. Frequency response: 54Hz–22kHz, ±2dB (on axis), 54Hz–20kHz, ±2dB (30° off axis). Low-frequency extension: 36Hz (DIN). Sensitivity: 90dB room, 87dB anechoic. Impedance: compatible with 8 ohms. Recommended amplification: 15–150W. Maximum input power: 100W.
Dimensions: 15" (381mm) H by 8.25" (210mm) W by 12.7" (323mm) D (height includes spikes or outrigger feet). Internal volume: 0.5 cubic feet (15 liters). Shipping Weight: 43 lbs (19.5kg) per pair.
Finishes: Cherry, Rosenut, Black Ash.
Serial Numbers Of Units Reviewed: 65446, 65452.
Price: $998/pair. Approximate number of dealers: 350.
Manufacturer: Paradigm Electronics Inc., 205 Annagem Boulevard, Mississauga, Ontario L5T 2V1, Canada. Tel: (905) 564-1994. Fax: (905) 564-8726. Web:

Paradigm Electronics Inc.
205 Annagem Boulevard
Mississauga, Ontario L5T 2V1
(905) 564-1994
