Linn Majik 109 loudspeaker Specifications

Sidebar 1: Specifications

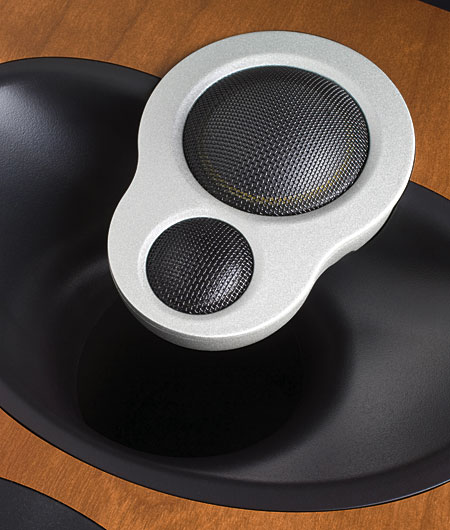

Description: Three-way, reflex-loaded stand-mounted loudspeaker. Drive-units: 0.75" (19mm) fabric-dome supertweeter, 1.2" (30mm) polyurethane elastomer soft-dome tweeter, 5" hand-coated paper-cone woofer. Crossover frequencies: 1.5kHz, 6kHz. Crossover options: conventional passive or fully Aktiv. Frequency range: 72Hz–>20kHz (65Hz–>20kHz Aktiv version). Impedance: 4 ohms (7 ohms each drive-unit, Aktiv version). Sensitivity: 88dB/W/m (1kHz).
Dimensions: 12.75" (327mm) H by 7.5" (192mm) W by 10" (256mm) D. Weight: 13 lbs (5.9kg). Dedicated stands: 23.4" (600mm) H by 9.75" (250mm) W by 12.5" (320mm) D. Weight: 13 lbs (5.92kg).
Finishes: Black Ash, American Cherry, Maple, White.
Serial Numbers Of Units Reviewed: 1172639.
Price: $1590/pair. Approximate number of dealers: 15.
Manufacturer: Linn Products Ltd., Glasgow Road, Waterfoot, Eaglesham, Glasgow G76 0EQ, Scotland, UK. Tel: (44) (0)141-307-7777. Fax: (44) (0)141-644-4262. Web: US distributor: Tannoy North America, #1-335 Gage Avenue, Kitchener, ON N2M 5E1, Canada. Tel: 519-745-1158. Web:

Linn Products Ltd.
US distributor: Tannoy North America
#1-335 Gage Avenue
Kitchener, ON N2M 5E1, Canada
