California Audio Labs Tercet Mk.III CD player Measurements

Sidebar 3: Measurements

The Tercet's maximum output level was a fraction over spec at 2.079V, sourced from a low 52 ohms, which implies the Tercet should be able to drive reasonably long or overly capacitive cables. As shown by the impulse response (fig.1), the output is polarity-correct, while the squarewave response (fig.2) reveals by its flat tops that the digital filter overflows at its maximum level, a tradeoff said to increase low-level resolution. The player's frequency response (fig.3) was flat within the audio band, though a slight 0.3dB de-emphasis error at 10kHz exists (fig.4). Channel separation was okay at better than 70dB below 8kHz.

291CAL3fig1

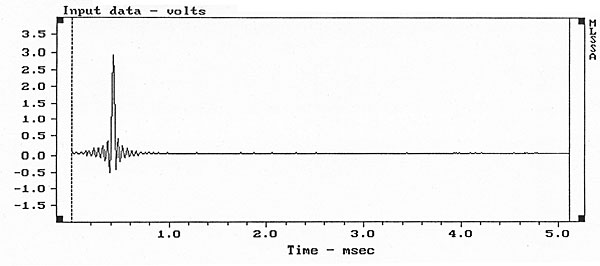

Fig.1 CAL Tercet Mk.III, impulse response (5ms window).

291CAL3fig2

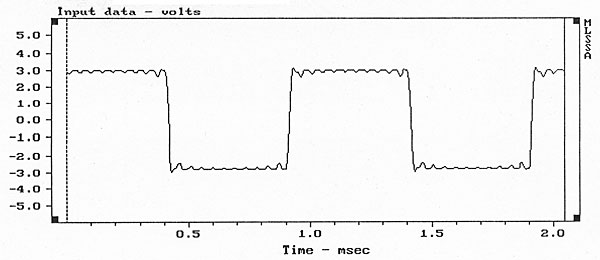

Fig.2 CAL Tercet Mk.III, 1kHz squarewave at 0dBFS (2ms window).

291CAL3fig3

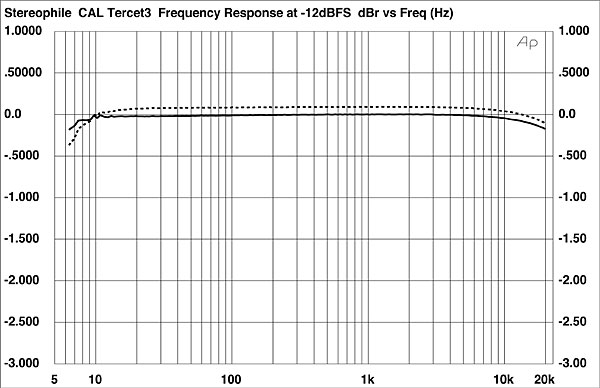

Fig.3 CAL Tercet Mk.III, frequency response at –12dBFS (right channel dashed, 0.5dB/vertical div.).

291CAL3fig4

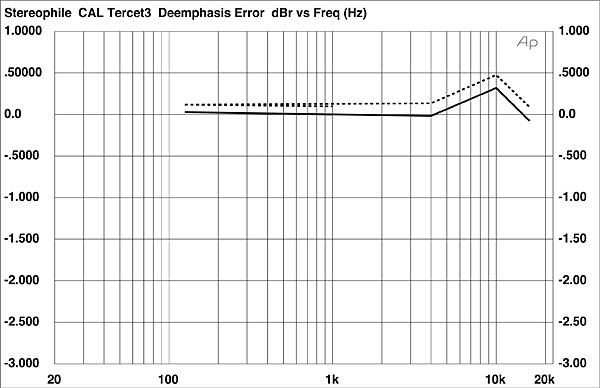

Fig.4 CAL Tercet Mk.III, deemphasis error (right channel dashed, 0.5dB/vertical div.).

Sweeping a bandpass filter from 20kHz to 30Hz while the Tercet was reproducing a dithered 1kHz tone at –90.31dB gave the spectra shown in fig.5. Some inconsequential 60Hz hum can be seen; more important, both channels feature too low a level at –90dB, together with serious second-harmonic distortion, suggesting that the Tercet's DACs had not been properly aligned (despite the claimed "hand-trimming"). (As this test tone is dithered, any distortion seen will be due to the player's conversion system.) This poor alignment was confirmed by looking at the linearity from –60dB to –120dB using the dithered 500Hz tone on the CBS Test CD. Fig.6 shows the left channel's linearity which, while a little better than the right channel's, can hardly be said to resemble a straight line. The waveform of an undithered tone at –90.31dB, which should reproduce as a simple, three-stepped shape, toggling between –1, 0, and +1, instead can be seen to feature a degree of frequency doubling, due to the –1 level actually being a little higher than 0 (fig.7).

291CAL3fig5

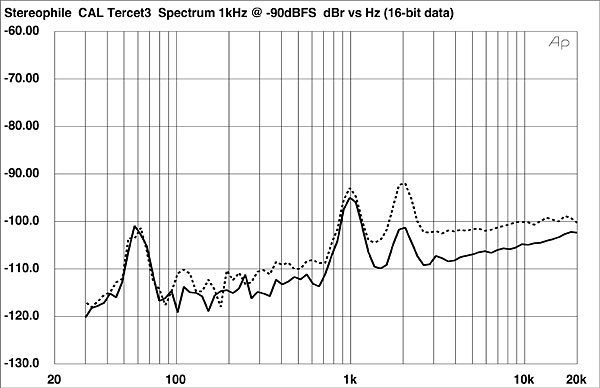

Fig.5 CAL Tercet Mk.III, spectrum of dithered 1kHz tone at –90.31dBFS, with noise and spuriae (1/3-octave analysis, right channel dashed).

291CAL3fig6

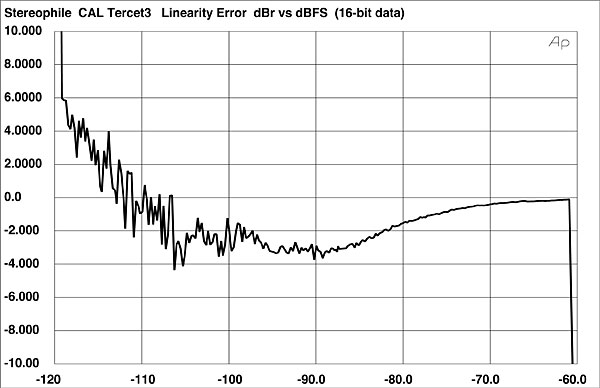

Fig.6 CAL Tercet Mk.III, left-channel departure from linearity (5dB/vertical div.).

291CAL3fig7

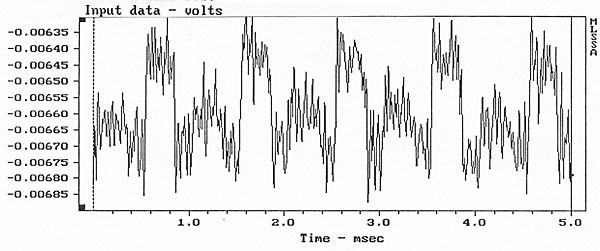

Fig.7 CAL Tercet Mk.III, waveform of undithered 1kHz sinewave at –90.31dBFS (left channel).

Often such departures from linear behavior also result in increased distortion. The Tercet was excellent in this respect, however, as can be seen from the spectrum of its output while reproducing a 1:1 mix of 19 and 20kHz tones (fig.8, which has a linear frequency scale). Although slight spurs at 18kHz and 21kHz can be seen to either side of the main two tones, the intermodulation product at 1kHz, shown by the cursor position, is buried in the measuring system's noise at –78.6dB. It's possible that this clean distortion performance correlates with GL's finding that the Tercet offered a musically involving sound, though many other factors are involved, of course.—John Atkinson

291CAL3fig8

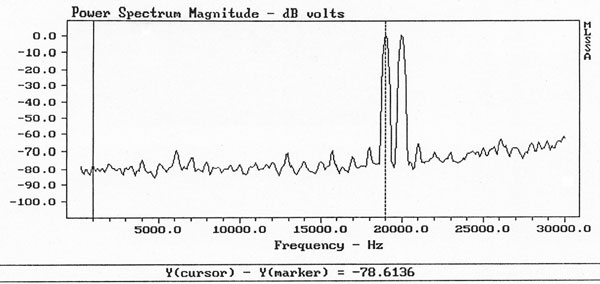

Fig.8 CAL Tercet Mk.III, HF intermodulation spectrum, 300Hz–30kHz, 19+20kHz at 0dBFS (linear frequency scale).
