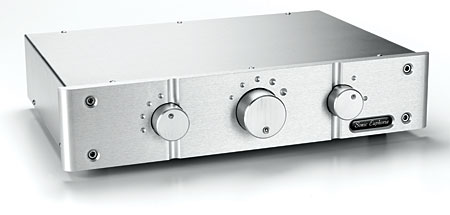

Sonic Euphoria PLC passive line stage Specifications

Sidebar 1: Specifications

Description: Autotransformer-based passive line stage. Inputs: 4 unbalanced line (RCA). Outputs: 2 variable-level unbalanced (RCA), 1 fixed-level unbalanced (RCA). Balanced version adds 2 balanced inputs (XLR), replaces outputs with 3 balanced (XLR), 1 unbalanced (RCA), all variable-level. Attenuation levels: 24, 2dB each; half-step switch provides 1dB offset. Voltage gain: configurable, unity to 10dB (4dB standard).
Dimensions: 17" (435mm) W by 4" (100mm) H by 13" (330mm) D. Weight: 16–21 lbs (4.4–9.5kg), depending on configuration; add 2 lbs (1kg) for shipping weight.
Finishes: Silver, black.
Serial Number Of Unit Reviewed: 40404.
Price: $1295 single-ended, $1995 balanced. Remote control, $250; WBT RCA upgrade, $40/pair; additional inputs/outputs, $40/pair. Approximate number of dealers: 1 (sold only direct, via Jeff's Sound Values). Warranty: 2 years, transferable; 30-day, money-back trial period.
Manufacturer: Sonic Euphoria, 205 W. 35th Street, Suite F, National City, CA 91950. Tel: (619) 585-1500. Fax: (619) 585-1559. Web:

Sonic Euphoria
205 W. 35th Street, Suite F
National City, CA 91950
(619) 585-1500
