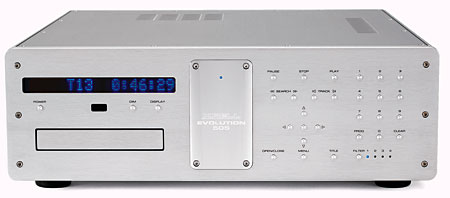

Krell Evolution 505 SACD/CD player Specifications

Sidebar 1: Specifications

Description: SACD/CD player with wireless IR remote control. Plays SACD, CD,CD-R, 44.1kHz WAV, AAC, DVD-R/RW/+R. Outputs: digital S/PDIF via RCA, TosLink; 1 pair CAST via 4-pin bayonet connectors; 1 pair balanced (XLR); 6 single-ended (RCA). Control inputs: RS-232 port via 9-pin D-subminiature connector, 12VDC trigger input, Krell CAN Link. Frequency response: 20Hz–20kHz, +0/–0.5dB. Signal/noise ratio (A-weighted): 105dB. THD: 20Hz–20kHz, –82dB. Power consumption: 61W.
Dimensions: 17.3" (438mm) W by 6" (153mm) H by 17.3" (438mm) D. Weight: 29 lbs (13.2kg) net, 37 lbs (16.8kg) shipping.
Finishes: Aluminum: silver or black.
Serial Numbers Of Unit Reviewed: 18008030360, 18007010184.
Price: $10,000. Approximate number of dealers: 90. Warranty: 5 years, parts & labor; 3 years, mechanical.
Manufacturer: Krell Industries, 45 Connair Road, Orange, CT 06477-3650. Tel: (203) 298-4000. Fax: (203) 891-2028. Web:

Krell Industries
45 Connair Road
Orange, CT 06477-3650
(203) 298-4000
