AudioQuest DragonFly Red & Black USB D/A headphone amplifiers Measurements

Sidebar 3: Measurements

I measured the AudioQuest DragonFly Red and Black with my Audio Precision SYS2722 system (see the January 2008 "As We See It"). I performed a full set of tests on both converters with WAV and AIFF test-tone files sourced from an iPad 2 with a 30-pin-to-USB "camera connection kit" adapter. I then repeated some of the testing, playing the same files with Pure Music 3.0 on my MacBook Pro running on battery power, and on my iPhone 6 using a Lightning-to-USB adapter. AudioQuest's Stephen Mejias warned me that the DragonFlys' rejection of jitter would be optimized after they'd been powered up for 24 hours, so before I did any testing, I left both plugged into USB ports on one of the PCs in my lab for 36 hours.

Apple's USB Prober utility identified the DragonFlys as "AudioQuest DragonFly Red v1.0" and "AudioQuest DragonFly Black v1.5," both from "AudioQuest." Both converters' USB ports operated in the optimal isochronous asynchronous mode, and Apple's AudioMIDI utility revealed that they accepted 24-bit integer data sampled at all rates from 44.1 to 96kHz. The DragonFlys' maximum output levels at 1kHz into a high 100k ohms load were 1.19V (Black) and 2.04V (Red). Both DragonFlys preserved absolute polarity (ie, were non-inverting), and both offered a very low output impedance of <1 ohm.

Fig.1 shows the DragonFly Red's impulse response with 44.1kHz data. (The Black's impulse response was identical.) It is typical of a minimum-phase reconstruction filter, with all the ringing following the single full-scale sample. This filter has a very sharp rolloff above the audioband (fig.2, magenta and red traces), with the aliasing image at 25kHz of a full-scale tone at 19.1kHz (cyan, blue) being suppressed by >110dB. This graph was taken with the Red, and the harmonics associated with the 19.1kHz tone all lie below –80dB. The Black's reconstruction filter offers similar rejection above the audioband (fig.3), but the harmonics of the 19.1kHz tone are all higher in level, at –57dB (0.14%).


Fig.1 AudioQuest DragonFly Red, impulse response (one sample at 0dBFS, 44.1kHz sampling, 4ms time window).


Fig.2 AudioQuest DragonFly Red, wideband spectrum of white noise at –4dBFS (left channel red, right magenta) and 19.1kHz tone at 0dBFS (left blue, right cyan) into 100k ohms with data sampled at 44.1kHz (20dB/vertical div.).


Fig.3 AudioQuest DragonFly Black, wideband spectrum of white noise at –4dBFS (left channel red, right magenta) and 19.1kHz tone at 0dBFS (left blue, right cyan) into 100k ohms with data sampled at 44.1kHz (20dB/vertical div.).

Fig.4 shows the Red's frequency response with data sampled at 44.1 and 96kHz. The smooth rolloff above the audioband is broken by a sharper drop just below half of each rate. Channel separation at 1kHz was excellent, at 110dB R–L and 115dB L–R, but decreased to 75 and 87dB, respectively, at 20Hz. I measured the channel separation with the DragonFly Red connected to the iPad 2. This increase in crosstalk at low frequencies is usually due to increasing power-supply impedance, so I repeated the test with the MacBook Pro, only to get an identical result.

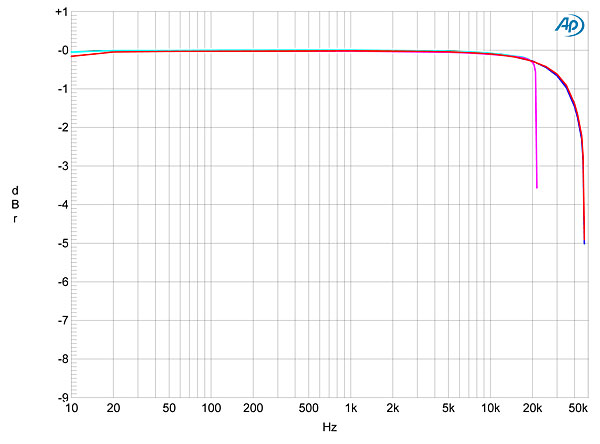

Fig.4 AudioQuest DragonFly Red, frequency response at –12dBFS into 100k ohms with data sampled at: 44.1kHz (left channel cyan, right magenta), 96kHz (left blue, right red) (1dB/vertical div.).

An increase in bit depth from 16 to 24, with dithered data representing a 1kHz tone at –90dBFS, dropped the Red's noise floor by almost 12dB (fig.5), suggesting a resolution of around 18 bits—good for a DAC powered by an iPhone or iPad, and a little better than that of the original DragonFly, particularly at low frequencies. Repeating this test with the Black (fig.6) suggested that the less expensive DragonFly offers 17 bits' worth of resolution, though this is still good enough to allow it to decode a 24-bit tone at –120dBFS (fig.7). When I played undithered data representing a tone at exactly –90.31dBFS, the waveform was symmetrical, with no DC offset, but the three DC voltage levels described by the data were obscured by high-frequency noise (fig.8).


Fig.5 AudioQuest DragonFly Red, spectrum with noise and spuriae of dithered 1kHz tone at –90dBFS with: 16-bit data (left channel cyan, right magenta), 24-bit data (left blue, right red) (20dB/vertical div.).


Fig.6 AudioQuest DragonFly Black, spectrum with noise and spuriae of dithered 1kHz tone at –90dBFS with: 16-bit data (left channel cyan, right magenta), 24-bit data (left blue, right red) (20dB/vertical div.).


Fig.7 AudioQuest DragonFly Black, spectrum with noise and spuriae of dithered 1kHz tone at –120dBFS with 24-bit data (left channel blue, right red) (20dB/vertical div.).


Fig.8 AudioQuest DragonFly Red, waveform of undithered 1kHz sinewave at –90.31dBFS, 16-bit data (left channel blue, right red).

So far, all testing had been performed with the high 100k ohm load, and the Red produced very low harmonic distortion with this load (fig.9). However, the DragonFlys will mainly be used with headphones, which have impedances ranging from 20 to 300 ohms—and with the Red, things went a tad gnarly into low impedances. With 300 ohms, I had to reduce the signal level to –3dB to avoid clipping the output; and into 30 ohms, the signal had to be brought down to –5dB to reduce the harmonic distortion to an appropriately low level (fig.10), the second and third harmonics now lying close to –80dB (0.01%). It's fair to note that a level of –5dB was still way too loud for me to bear with the Red driving my Ultimate Ear 18 Pros, whose impedance ranges from 12 to 30 ohms.


Fig.9 AudioQuest DragonFly Red, 16-bit data, spectrum of 50Hz sinewave, DC–1kHz, at 0dBFS into 100k ohms (left channel blue, right red; linear frequency scale).


Fig.10 AudioQuest DragonFly Red, 24-bit data, spectrum of 1kHz sinewave, DC–1kHz, at –5dBFS into 30 ohms (left channel red; linear frequency scale).

With its lower maximum output level, the DragonFly Black coped better with low impedances, though the harmonic distortion was generally a little higher than that of the Red (fig.11), with the third harmonic the highest in level, at –73dB (0.025%). Both DragonFlys offered low levels of intermodulation distortion, though again, the Black (fig.12) performed a little worse than the Red (fig.13) when reproducing an equal mix of 19 and 20kHz tones, the combined waveform peaking at 0dBFS.


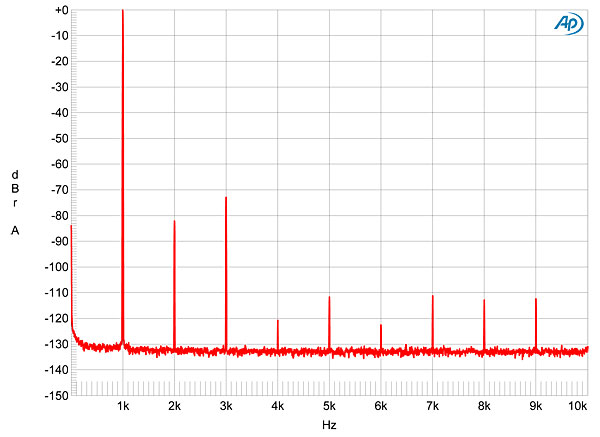

Fig.11 AudioQuest DragonFly Black, 24-bit data, spectrum of 1kHz sinewave, DC–1kHz, at 0dBFS into 30 ohms (left channel red; linear frequency scale).


Fig.12 AudioQuest DragonFly Black, 24-bit data, HF intermodulation spectrum, DC–30kHz, 19+20kHz at 0dBFS into 300 ohms, 44.1kHz data (left channel blue, right red; linear frequency scale).


Fig.13 AudioQuest DragonFly Red, 24-bit data, HF intermodulation spectrum, DC–30kHz, 19+20kHz at 0dBFS into 300 ohms, 44.1kHz data (left channel blue, right red; linear frequency scale).

Even after 36 hours of burn-in, the DragonFly Red's rejection of word-clock jitter was disappointing. When I fed it 16-bit J-Test data, the lowest-frequency sidebands, at ±229Hz, were slightly accentuated (fig.14; the correct levels are shown by the green line); of more concern was the symmetrical modulation of the noise floor just over 3kHz to either side of the spectral spike that represents the high-level tone at one-quarter the sample rate. This graph was taken with the DragonFly Red driven by the MacBook Pro and it turned out that behavior was due to an interaction between the Audio Precision's input stage and the Red's ESS headphone amplifier. (See "Manufacturers' Comments.") Fig.15 shows a spectral analysis taken with 24-bit J-Test data sourced from the iPad2 and the Red's output digitized with an Ayre QA-9 ADC; the spectrum is now much cleaner. The DragonFly Black performed better with J-Test data analyzed with the Audio Precision (fig.16), though a low-level spurious tone can be seen at 12kHz.


Fig.14 AudioQuest DragonFly Red, high-resolution jitter spectrum of analog output signal, 11.025kHz at –6dBFS, sampled at 44.1kHz with LSB toggled at 229Hz: 16-bit USB data sourced from MacBook Pro (left channel blue, right red). Center frequency of trace, 11.025kHz; frequency range, ±3.5kHz.


Fig.15 AudioQuest DragonFly Red, high-resolution jitter spectrum of analog output signal digitized with Ayre QA-9, 11.025kHz at –6dBFS, sampled at 44.1kHz with LSB toggled at 229Hz: 24-bit USB data sourced from iPad 2 (left channel blue, right red). Center frequency of trace, 11.025kHz; frequency range, ±3.5kHz.

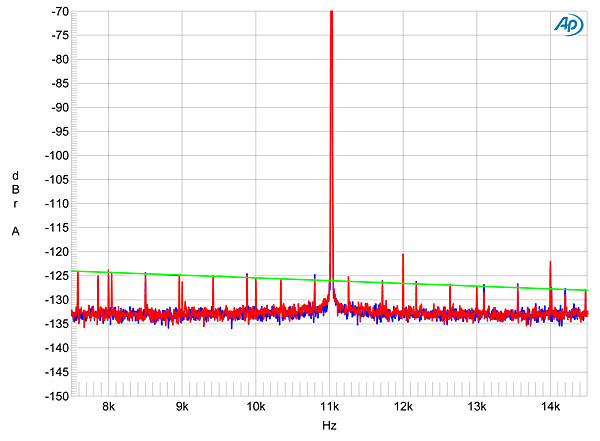

Fig.16 AudioQuest DragonFly Black, high-resolution jitter spectrum of analog output signal, 11.025kHz at –6dBFS, sampled at 44.1kHz with LSB toggled at 229Hz: 16-bit USB data sourced from iPad 2 (left channel blue, right red). Center frequency of trace, 11.025kHz; frequency range, ±3.5kHz.

AudioQuest's DragonFly Red and Black performed well on the test bench. The Black's measured performance is especially commendable when you consider that it costs just $99! The higher maximum output level of the Red will be a benefit when it's used to feed a preamplifier, but will not be a factor when it drives the lower impedances typical of headphones.—John Atkinson
