Marantz Model 40n integrated amplifier Measurements

Sidebar 3: Measurements

I measured the Marantz Model 40n with my Audio Precision SYS2722 system. For the digital-input measurements, I used TosLink data and the HEOS app on my iPhone to play back test-tone WAV files on a USB stick plugged into the rear-panel port.

The Marantz's single-ended line inputs preserved absolute polarity at both the loudspeaker and headphone outputs. The volume control operated in accurate 0.5dB steps, and the maximum gain was 40.6dB at the loudspeaker outputs and 40.7dB at the headphone output. The power amplifier stage offered a fixed gain of 24dB. The input impedance at both the line inputs and the power amplifier inputs was 15k ohms at all audio frequencies.

The Model 40n's output impedance at the headphone output was a relatively high 320 ohms. The loudspeaker output impedance, including the series impedance of 6' of spaced-pair cable, was 0.1 ohm at 20Hz and 1kHz, increasing slightly to 0.12 ohm at 20kHz. The small-signal bandwidth was extremely wide, the response into 8 ohms (fig.1, blue and red traces) down less than 3dB at 200kHz. Into 2 ohms (green trace), the output was –3dB at 100kHz. Frequency-response variations into our simulated loudspeaker load (gray trace) were negligible. This graph was taken with the volume control set to its maximum ("100"); the excellent channel matching was preserved at lower settings of the control. The extended ultrasonic response meant that the Marantz's reproduction of a 10kHz squarewave featured very short risetimes (fig.2). Commendably, no overshoot or ringing was visible. The bass and treble controls offered a maximum boost and cut of close to 10dB (fig.3).

822Mar40fig01

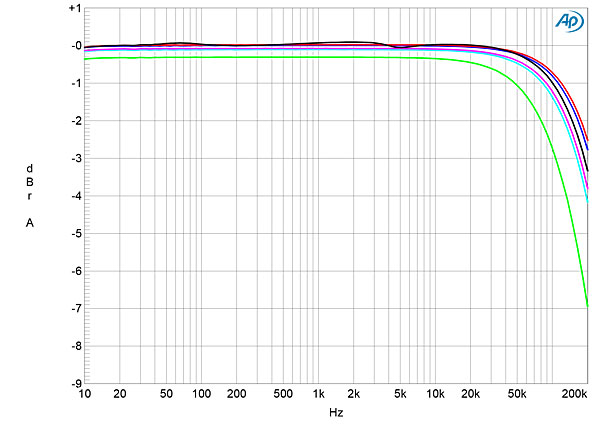

Fig.1 Marantz Model 40n, volume control set to "100," frequency response at 2.83V into: simulated loudspeaker load (gray), 8 ohms (left channel blue, right red) 4 ohms (left cyan, right magenta), 2 ohms (green) (1dB/vertical div.).

822Mar40fig02

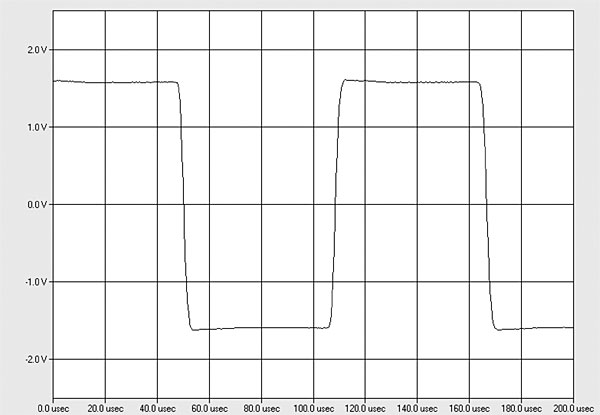

Fig.2 Marantz Model 40n, small-signal 10kHz squarewave into 8 ohms.

822Mar40fig03

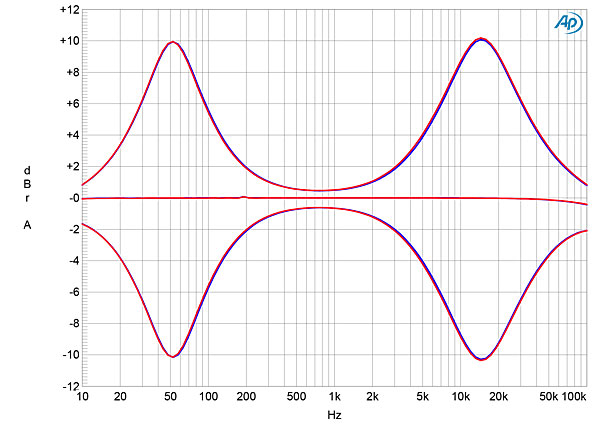

Fig.3 Marantz Model 40n, frequency response at 2.83V into 8 ohms with treble and bass controls turned off and set to maximum and minimum (left channel blue, right red, 2dB/vertical div.)

Channel separation was excellent, at 90dB in both directions below 3kHz and still close to 80dB at 20kHz. With the line inputs shorted to ground and the volume control set to its maximum, the Model 40n's unweighted, wideband signal/noise ratio was a good 71.7dB ref. 2.83V into 8 ohms (average of both channels). This ratio improved to 82dB when the measurement bandwidth was restricted to the audioband and to 84.7dB when A-weighted. While spuriae at the supply frequency of 60Hz and its harmonics were present in the amplifier's output (fig.4), their levels were all very low, even with the volume control set to its maximum.

822Mar40fig04

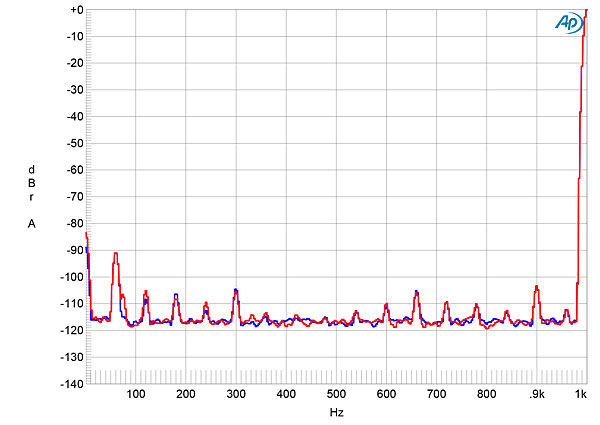

Fig.4 Marantz Model 40n, spectrum of 1kHz sinewave, DC–1kHz, at 1Wpc into 8 ohms, volume control set to "100" (left channel magenta, right red; linear frequency scale).

Marantz specifies the Model 40n's maximum power as 70Wpc into 8 ohms (18.45dBW) and 100Wpc into 4 ohms (17dBW). We specify clipping power as when the THD+noise reaches 1%. By that measure, and with both channels driven, the Marantz amplifier exceeded its specified powers, clipping at 74Wpc into 8 ohms (fig.5, 18.7dBW) and 120Wpc into 4 ohms (fig.6, 17.8dBW). I didn't test clipping power into 2 ohms, as the amplifier isn't specified into that load. (A notice on the rear panel says "Impedance: 4–16 ohms.")

822Mar40fig05

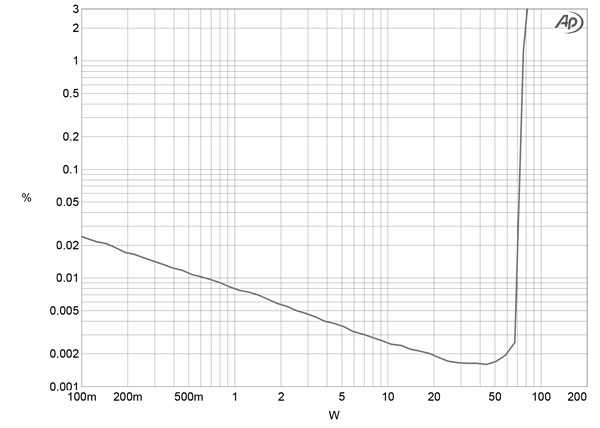

Fig.5 Marantz Model 40n, distortion (%) vs 1kHz continuous output power into 8 ohms.

822Mar40fig06

Fig.6 Marantz Model 40n, distortion (%) vs 1kHz continuous output power into 4 ohms.

The distortion lies below the noisefloor at powers below a few tens of watts, so I examined how the THD+N varied with frequency at 20V, which is equivalent to 50W into 8 ohms and 100W into 4 ohms (fig.7). The distortion is very similar into both 8 ohms (blue and red traces) and 4 ohms (cyan and magenta traces), and while there is a slight increase in the top two audio octaves, the distortion is extremely low.

822Mar40fig07

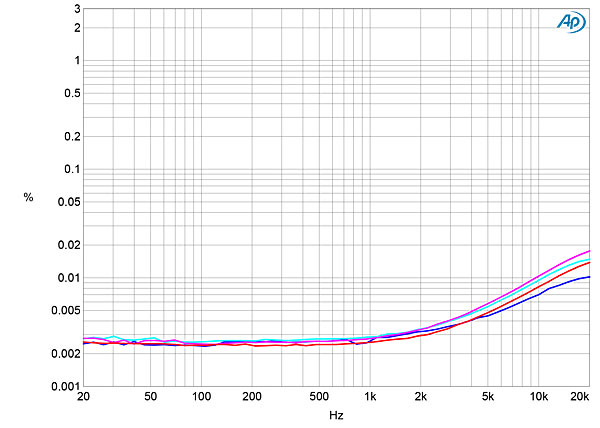

Fig.7 Marantz Model 40n, THD+N (%) vs frequency at 20V into: 8 ohms (left channel blue, right red), 4 ohms (left cyan, right magenta).

The distortion waveform at this output voltage was dominated by random noise, even when I averaged 32 readings (fig.8). Spectral analysis (fig.9) indicated that the second harmonic was the highest in level into 8 ohms, but at –103dB (0.0007%), this is negligible. At the same voltage into 4 ohms (fig.10), the third harmonic was now the highest in level but at close to –100dB (0.001%) is still negligible. Tested with an equal mix of 19 and 20kHz tones at 100W peak into 4 ohms, the intermodulation distortion products all lay at or below –90dB (fig.11).

822Mar40fig08

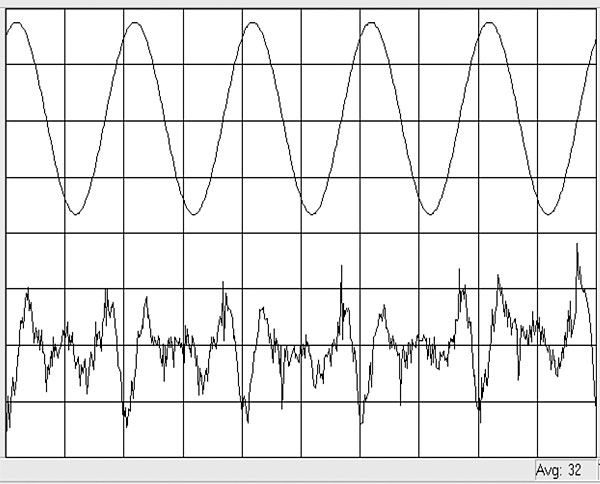

Fig.8 Marantz Model 40n, 1kHz waveform at 50W into 8 ohms, 0.0066% THD+N (top); distortion and noise waveform with fundamental notched out (bottom, not to scale).

822Mar40fig09

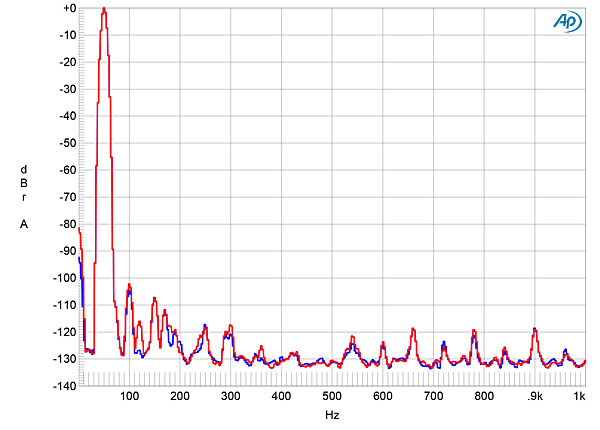

Fig.9 Marantz Model 40n, spectrum of 50Hz sinewave, DC–1kHz, at 50Wpc into 8 ohms (left channel blue, right red; linear frequency scale).

822Mar40fig10

Fig.10 Marantz Model 40n, spectrum of 50Hz sinewave, DC–1kHz, at 100Wpc into 4 ohms (left channel blue, right red; linear frequency scale).

822Mar40fig11

Fig.11 Marantz Model 40n, HF intermodulation spectrum, DC–30kHz, 19+20kHz at 100W peak into 4 ohms (left channel blue, right red; linear frequency scale).

Turning to the Marantz Model 40n's digital-input performance, the optical and coaxial S/PDIF inputs locked to data sampled at up to 192kHz. The Marantz's digital inputs all preserved absolute polarity. With the volume control set to its maximum, a 1kHz digital signal at –40dBFS resulted in a level at both the loudspeaker and headphone outputs of 2.2V. This implies that the D/A circuit has close to 20dB of excess gain. Data at 0dBFS would drive the amplifier into clipping unless the volume control was set to –20dB ("60" on the front-panel display). I used this volume control setting for the digital input measurements, and to avoid damaging the power amplifier stage with high-level digital data, I examined the digital inputs' behavior at the headphone output, which mutes the loudspeaker outputs.

The Marantz amplifier offers a choice of two reconstruction filters, referred to as F1 and F2. F1's impulse response with 44.1kHz data (fig.12) is typical of a very short linear-phase filter, with just one cycle of ringing on either side of the single sample at 0dBFS. F2's impulse response (fig.13) has ringing on both sides of the single high sample, but with considerably more ringing after than before. This impulse response is identical to the "hybrid" filter offered by ESS DAC chips (footnote 1). With 44.1kHz-sampled white noise (fig.14, red and magenta traces), the F1 filter's response rolled off slowly above 20kHz, not reaching full stop-band suppression until 37kHz, well above half the sample rate (vertical green line). The aliased image at 25kHz of a 19.1kHz tone at 0dBFS (blue and cyan traces) is suppressed by just 12dB, therefore, but the distortion harmonics of the 19.1kHz tone are all very low in level. Repeating this analysis with the F2 filter (fig.15), the ultrasonic rolloff was much faster, resulting in considerably greater suppression of the aliased image at 25kHz. However, there is an odd boost in the noisefloor above 65kHz.

822Mar40fig12

Fig.12 Marantz Model 40n, TosLink input, F1 filter, impulse response (one sample at 0dBFS, 44.1kHz sampling, 4ms time window).

822Mar40fig13

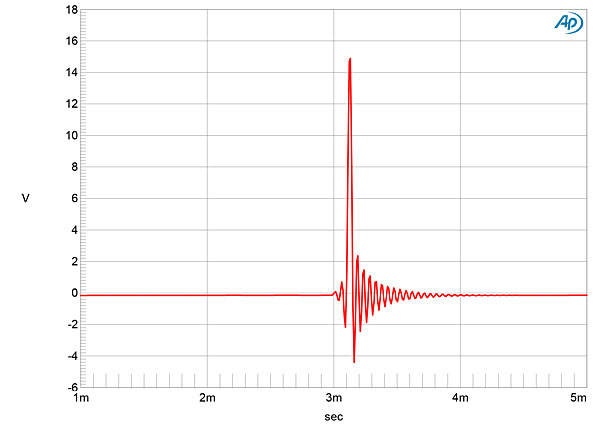

Fig.13 Marantz Model 40n, TosLink input, F2 filter, impulse response (one sample at 0dBFS, 44.1kHz sampling, 4ms time window).

822Mar40fig14

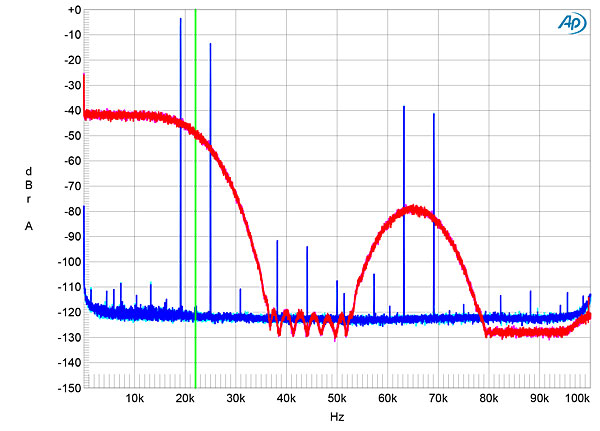

Fig.14 Marantz Model 40n, TosLink input, F1 filter, wideband spectrum of white noise at –4dBFS (left channel red, right magenta) and 19.1kHz tone at 0dBFS (left blue, right cyan), with data sampled at 44.1kHz (20dB/vertical div.).

822Mar40fig15

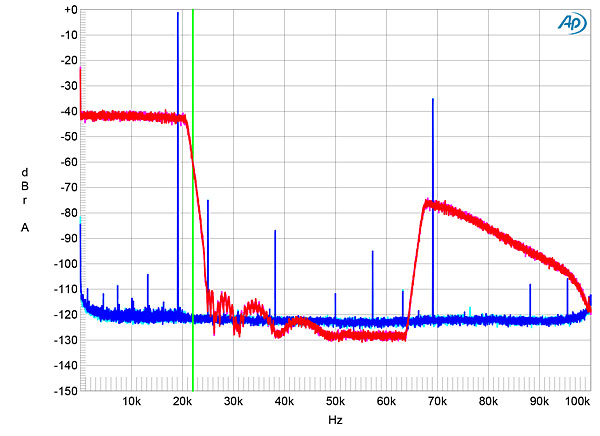

Fig.15 Marantz Model 40n, TosLink input, F2 filter, wideband spectrum of white noise at –4dBFS (left channel red, right magenta) and 19.1kHz tone at 0dBFS (left blue, right cyan), with data sampled at 44.1kHz (20dB/vertical div.).

With F1 active and 44.1kHz data (fig.16, green and gray traces), the digital-input frequency response rolled off gently above 12kHz, reaching –3dB at 20kHz. The levels of the two channels were perfectly matched. With 96kHz (cyan, magenta) and 192kHz (blue, red) data, the audioband output was flat, with then a gentle rolloff starting below half of each sample rate. With the F2 filter (fig.17), the audioband response was flat, with then a sharp rolloff just below half of each sample rate.

822Mar40fig16

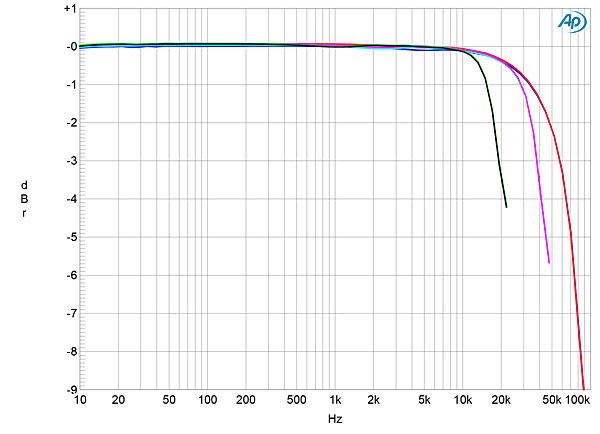

Fig.16 Marantz Model 40n, TosLink input, F1 filter, volume control set to –20dB, frequency response at –12dBFS into 100k ohms with data sampled at: 44.1kHz (left channel green, right gray), 96kHz (left channel cyan, right magenta), 192kHz (left blue, right red) (1dB/vertical div.).

822Mar40fig17

Fig.17 Marantz Model 40n, TosLink input, F2 filter, volume control set to –20dB, frequency response at –12dBFS into 100k ohms with data sampled at: 44.1kHz (left channel green, right gray), 96kHz (left channel cyan, right magenta), 192kHz (left blue, right red) (1dB/vertical div.).

I examined the resolution of the Model 40n's digital inputs by looking at the spectrum at the headphone output with a dithered 1kHz tone at –90dBFS with 16- and 24-bit data (fig.18). The noisefloor dropped by 15dB with 24-bit data, which implies that the Marantz offers between 18 and 19 bits of resolution. However, this graph was taken with the volume control set to –20dB. To examine the ultimate resolution, I repeated the 24-bit analysis with the volume control set to its maximum. The noisefloor dropped by another 6dB, but the improved resolution will be academic given the digital input's gain architecture. The waveform of a tone at exactly –90.31dBFS with undithered 16-bit data was reproduced with the three DC voltage levels described by the data unobscured by noise (fig.19). With undithered 24-bit data (not shown), the result was a relatively clean sinewave.

822Mar40fig18

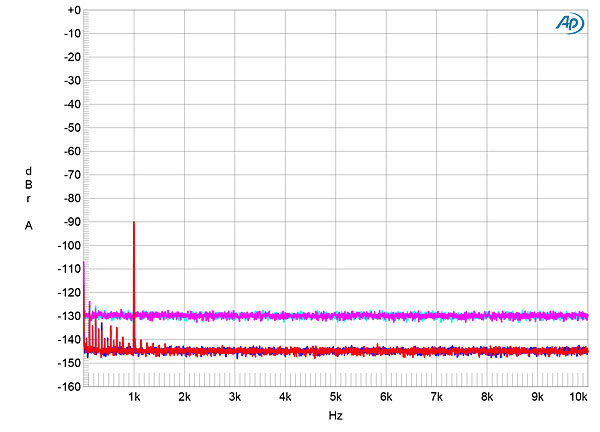

Fig.18 Marantz Model 40n, TosLink input, volume control set to –20dB, spectrum with noise and spuriae of dithered 1kHz tone at –90dBFS with: 16-bit data (left channel cyan, right magenta), 24-bit data (left blue, right red) (20dB/vertical div.).

822Mar40fig19

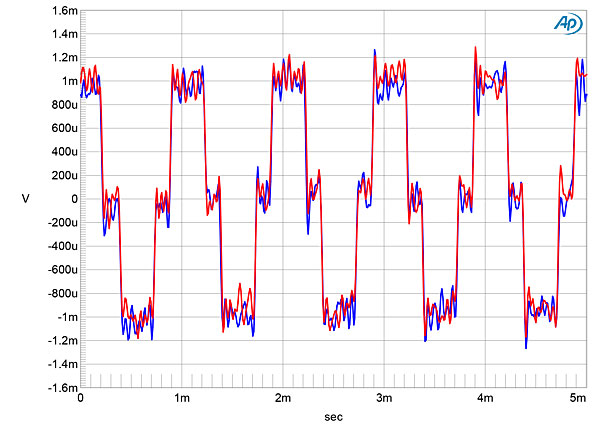

Fig.19 Marantz Model 40n, TosLink input, waveform of undithered 1kHz sinewave at –90.31dBFS, 16-bit data (left channel blue, right red).

Intermodulation distortion via the Marantz amplifier's digital inputs with F1 active (fig.20) was very low in both channels. While the ultrasonic aliased images of the tones are suppressed by just 10–12dB, the higher-order audioband images all lie close to –120dB. With F2, the difference product at 1kHz lay at just –114dB (0.0002%, fig.21).

822Mar40fig20

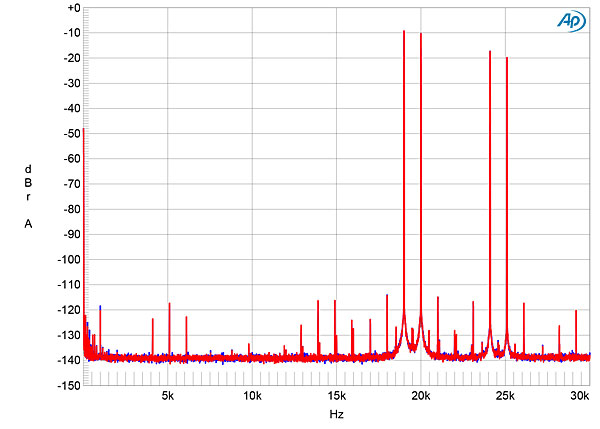

Fig.20 Marantz Model 40n, TosLink input, Filter 1, volume control set to –20dB, HF intermodulation spectrum, DC–30kHz, 19+20kHz at 0dBFS into 100k ohms, 44.1kHz data (left channel blue, right red; linear frequency scale).

822Mar40fig21

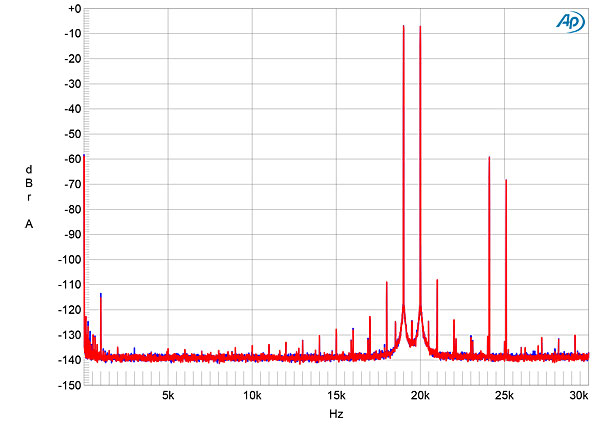

Fig.21 Marantz Model 40n, TosLink input, Filter 1, volume control set to –20dB, HF intermodulation spectrum, DC–30kHz, 19+20kHz at 0dBFS into 100k ohms, 44.1kHz data (left channel blue, right red; linear frequency scale).

I tested the Model 40n for its rejection of word-clock jitter via its TosLink input using 16- and 24-bit J-Test data sampled at 44.1kHz. Other than those closest to the frequency of the tone at one-quarter the sample rate, the odd-order harmonics of the 16-bit J-Test signal's LSB-level, low-frequency squarewave were all close to the correct levels (fig.22, sloping green line). However, some broadening of the noisefloor around Fs/4 spectral component can be seen, most likely due to jitter with a low-frequency, random noise spectrum. This broadening was also evident with 24-bit J-Test noisefloor data (not shown).

822Mar40fig22

Fig.22 Marantz Model 40n, TosLink input, volume control set to –20dB, high-resolution jitter spectrum of analog output signal, 11.025kHz at –6dBFS, sampled at 44.1kHz with LSB toggled at 229Hz: 16-bit data (left channel blue, right red). Center frequency of trace, 11.025kHz; frequency range, ±3.5kHz.

To look at the Marantz's moving magnet phono input, I connected a separate ground wire from the terminal on the amplifier's chassis to the ground of the Audio Precision analyzer. I examined the phono input's behavior primarily at the headphone output, again to avoid damaging the amplifier's output stages with high-level signals.

The phono input preserved absolute polarity. The maximum gain, with the volume control set to its maximum, was 84.8dB at both the headphone output and loudspeaker outputs, so the gain of the phono section is 44.2dB. This gain value means that clipping is possible with high-level LP signals; owners should make sure the volume control isn't set near the maximum when using the phono input. I performed most of the phono-input tests with the control set to –20dB. (The exception was the overload testing, when I reduced the control by another 20dB to make sure I was looking at input overload rather than output clipping.)

The M40n's phono input impedance was 39k ohms at 20Hz, 46k ohms at 1kHz, and 40k ohms at 20kHz, values appropriate for moving magnet cartridges. The RIAA correction (fig.23) was well-matched between the channels but featured a broad rise in the midrange that reached +0.45dB at 150Hz. The phono input's unweighted, wideband S/N ratio, measured with the input shorted to ground, was a very good 69.7dB (average of both channels) referred to an input signal of 1kHz at 5mV. Restricting the measurement bandwidth to 22Hz–22kHz increased the ratio to an excellent 83dB, while switching an A-weighting filter into circuit further increased the ratio to 87.7dB.

822Mar40fig23

Fig.23 Marantz Model 40n, phono input, response with RIAA correction (left channel blue, right red) and with subsonic filter (left green, right gray.) (1dB/vertical div.).

The Marantz phono input's overload margins were commendably high from 20Hz to 20kHz, at 24.4dB ref. 1kHz at 5mV. The phono stage's distortion was very low, with all the second and third harmonics lying close to –100dB (0.001%, fig.24), even with a 1kHz tone 16dB higher than the nominal MM output level of 5mV. High-order intermodulation distortion with an equal mix of 19kHz and 20kHz tones, at a peak input level equivalent to 1kHz at 30mV, lay below –100dB (not shown), with the second-order difference product at 1kHz lying at –94dB (0.003%).

822Mar40fig24

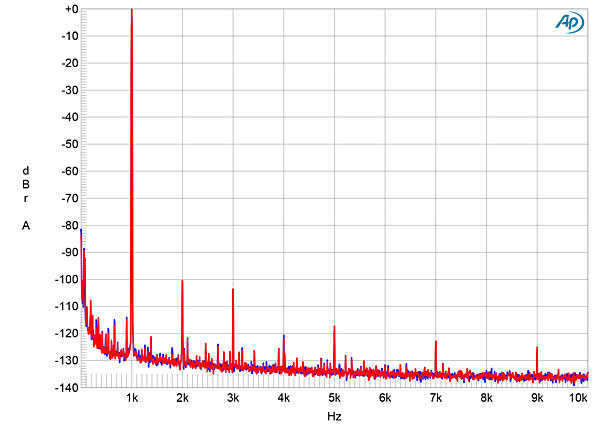

Fig.24 Marantz Model 40n, MM phono input, spectrum of 1kHz sinewave, DC–10kHz, for 30mV input (left channel blue, right red, linear frequency scale).

The Marantz Model 40n offers uniformly excellent measured performance from all its inputs. But I remain puzzled why its digital inputs, in common with almost all integrated amplifiers I have tested, offer considerably higher gain than necessary.—John Atkinson
