Sonnet Morpheus D/A processor Page 2

Though it's named after the Roman god of sleep, I found nothing lethargic about the Morpheus. I'm happy to report that, like some other R-2R DACs I've heard, it takes music out from behind the glass wall of "digital sound" and renders it in a vivid, fleshed-out manner. R-2R DACs often get knocked for rolled-off frequency extremes and a sound that has a generalized way with detail, but this one managed to dig out copious detail from every recording I played and brought to the game a pristinely extended treble and authoritative bass—strengths associated with delta-sigma DACs. More than any digital source I've heard, the Morpheus unites two aspects of musical reproduction that are thought to belong to these rival design philosophies: it sounds extended, neutral, and resolute while excelling at capturing the music's presence, weight, and texture. I listened to the Morpheus with its volume control bypassed, as I preferred the results using my Shindo Aurieges preamplifier.

1121sonnet.Sinatra

To get a sense of how the Morpheus resolved spatial information, I put on the title track from Frank Sinatra Sings for Only the Lonely (24/48 FLAC MQA stream, Capitol/Tidal): When Bill Miller came in with his slightly schmaltzy part, his piano sounded like it was located about 10' behind and slightly to the left of the left speaker, an effect that most DACs I've lived with can't muster. The Morpheus consistently projected a soundstage that was taller, wider, and deeper than the plane of the speakers and placed singers and instruments in that space in a solid and tangible way.

When I first listened to the Dutch DAC using its USB input, I was surprised at how similar the Morpheus sounded to my Denafrips Terminator (footnote 2), another hybrid R-2R DAC. The much larger Terminator, which costs about $1000 more than the Morpheus's retail price of $3399, boasts a more reassuring bass and springier dynamic contrasts (perhaps owing to its more robust power supplies and chassis), but these differences are slight, and otherwise there isn't much to separate their performance.

A more meaningful difference between the two DACs lies in how they present data from their respective digital inputs. With the Terminator, I find myself torn between the sound of its USB and I2S inputs. With the Morpheus, I found the USB input to be my least favorite way to listen. Music played through its AES3 input sounded more vivid, but things got really interesting when I swapped in the I2S module.

To use an I2S input, you need a companion device with an I2S output. So, Sonnet sent along its matching Hermes Digital Bridge, which also functions as a Roon endpoint.

1121sonnet.dylan

Through the I2S input, instruments became less homogenized, each sounding more distinct and colorful, and everything in the soundfield grew more precise, solid, and well-organized. The improvement was easy to discern and not at all minor—imagine switching from a budget Pentax lens to a Leica Summicron. On track after track, I found myself surprised at having my attention drawn to musically significant details I hadn't appreciated before. Listening to "Lay Lady Lay" from Bob Dylan's Nashville Skyline (AIFF rip from Sony Records International SICP 30481), I was delighted by the absurd yet inspired decision to have drummer Kenny Buttrey play a cowbell and bongos on a country ballad; the sound of his drumstick on the cowbell sounded so eerily present that it made me grin. (A studio janitor who came into the drum booth to empty the ashtrays—and held the instruments while Buttrey played them—happened to be Kris Kristofferson.)

Hardly a month goes by when I don't listen at least once to J.S. Bach's Cantatas, BWV 82 and 199 (16/44.1 FLAC stream, Nonesuch/Qobuz) by the late, sorely missed mezzo-soprano Lorraine Hunt Leiberson. Her performance of "Ich Habe Genug" ("I Have Enough") builds toward a kind of rapture; no singer I've heard has embodied more deeply the meaning of the cantata's words. The Morpheus was able to reveal the warmth in Hunt Leiberson's voice, her uncanny articulation, and the dynamic shifts with which she enacts Bach's spiritual drama.

On "Home at Last" from Aja (AIFF rip from MCA Records 088 112 056-2), in which the narrator compares himself to Odysseus resisting the deadly song of the Sirens, I was struck by the playing of British jazz pianist and vibist Victor Feldman, who had recorded with Miles Davis, Sonny Rollins, and Quincy Jones. Here, Feldman uses the keyboard as a percussion instrument, accenting the rhythm with surprising force. I marveled at the Morpheus's ability to unravel the complex arrangement and allow me to follow Feldman's piano until the end, especially the way it frames the guitar solo, the most delicious bit of playing in Walter Becker's recorded output.

1121sonnet.lavette

The review unit arrived with the optional MQA card ($199). Not wanting to get into the endless squabble about the merits of this technology, I will simply report that when the Morpheus performed the final unfold of "Strange Fruit" from Bettye LaVette's Blackbirds (24/96 FLAC MQA stream, Verve/Tidal), the soul singer's aging yet still immensely expressive voice leaped up between the speakers with audibly more of its raspy, colorful personality intact than it did when I disabled the MQA processing. (Here, I was using the AES3 input; for some reason, the MQA card never managed to quite work with the I2S module.)

In my system, the Hermes Digital Bridge replaced a number of more-expensive components: Sonore's opticalRendu and opticalModule, two Sonore Audiophile Linear external power supplies, a Denafrips Iris digital-to-digital converter—the I2S source—and the attendant cables, all of which retail for well over $3000. I was eager to try the Morpheus via its I2S input with this more expensive playback chain.

When I first connected the Denafrips Iris to the Morpheus's I2S input, I heard nothing but silence. Frustratingly, there is no standard for I2S over an Ethernet cable, and the pinouts on the Iris's output don't match the ones on the Morpheus's input. According to Ruijtenberg, if you want to take advantage of the Morpheus's superb I2S input, you have to use the Hermes. Period.

1121sonnet.2

Unsatisfied with this predicament, I reached out to Rob Fritz of Audio Art Cable, the Sonnet retailer who'd sent me the review samples. One of his customers uses a Denafrips Iris with his Morpheus and connects them with a cable from Phasure Audio, another Dutch company, which provides cables with customizable pinouts. This customer, a generous man named Gil Pena, sent me his Phasure ET^2 Cable. Sure enough, the most satisfying playback I squeezed out of the Morpheus was using the Sonore/Denafrips/Phasure/Morpheus playback chain. This combination of source components made music in a noticeably more composed manner: The Hermes sounded a little lightweight and splashy in comparison.

Conclusion

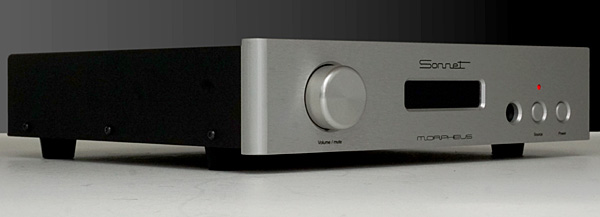

Throughout my time with the Sonnet Morpheus, this thoughtfully designed Dutch DAC continued to upend my assumptions, combining seemingly incompatible virtues: It resolved massive amounts of information while reproducing my favorite music in a natural, embodied manner that never sounded strident. It made listening to even early or poor recordings musically meaningful and fun. The Morpheus may not have made my jaw drop on first look or listen, but over time it offered more insight into my music and the way I listen, and more pleasure, than any digital source I've lived with—some of which cost far more than the Morpheus's eminently reasonable price of $3399.

Note however that this optimal performance was achieved via the I2S input—so I suggest budgeting for the Sonnet Hermes, or for a different source with an I2S output and possibly a custom cable.

I hated handing the Morpheus to the FedEx guy—so much that I ended up buying one.


Footnote 2: See Herb Reichert's Gramophone Dreams #40. Denafrips has replaced the Terminator with the Terminator II; the price remains the same.
COMPANY INFO
Sonnet Digital Audio Bv
Daviottenweg 9, 5222 BH
's-Hertogenbosch
Netherlands
+31(0)36-7856259
ARTICLE CONTENTS

COMMENTS
windansea's picture

I keep on hearing about musicality of R2R DACs, but of the various components in the signal chain, I say the DAC ranks with cables as least-detectable element, with speakers then amp as most detectable. I sure wish Stereophile would include a little bit of ABX DBT analysis to tease out the significance of any differences. For example, if a delta-sigma DAC has oversampling turned off, does it sound indistinguishable from an R2R DAC? Is it actually the oversampling that lessens "musicality"?

That said, I've yet to listen to an R2R DAC yet, so I'll confess my ignorance.

Axiom05's picture

A Delta-Sigma DAC requires oversampling since the DAC is only working with a "few" bits at a time. For me, the main interest of a NOS DAC is so one can use something like HQPlayer and explore oversampling and digital filtering in the software. You can use a powerful computer to do this part and with a NOS DAC you don't have an additional digital filter to "stack" on top of.

Archimago's picture

While an SDM DAC will still convert the PCM input to typically multi-bit SDM, that doesn't mean it can't turn off the oversampling applied.

You can still get a "stair-stepped" NOS 44.1kHz playback (for example) with various DACs like the RME ADI-2 series or even the old TEAC UD-501.

Demonstrated here:
TEAC UD-501 - TI/BB PCM1795 "Advanced Segment" DAC:
http://archimago.blogspot.com/2021/10/revisiting-teac-ud-501-dac-2013-thdn.html

RME ADI-2 Pro FS R Black Edition - AKM AK4493 DAC:
http://archimago.blogspot.com/2020/09/measurements-rme-adi-2-pro-fs-r-black_26.html

georgehifi's picture

Seeing this has an output stage (100ohms and over 2v) that can drive any poweramp, it's a real shame it was not used direct using the the two preset switches to match for the loudest it can do into an amp. As this way to me it would be even better, as "the best preamp is no preamp"

Cheers George

Jack L's picture

Hi

Bingo !

Why add more harmonic & phase distortion of any premp to the music signals when a DAC with low impedance & 2V+ O/P can drive direct any power amps ???????

That's exactly what I've been doing with my 24bit/192KHz DAC - hookup to my design/built linestage with PASSIVE bypass switch ON, for a couple years now !!

YES, "the best preamp is NO preamp" !!!!!!!!

So my CD/DVD & streaming music go DIRECT to my all-triode SET via my DAC + passive linestage. The music sounds soooo transparent, fast, detailed with livelike performance environment. No problem of lacking power at all.

I never want to switch the linestage back to active mode again. It simply loses the sonic beauty & powerfullness of the above passive mode.

Listening is believing

Jack L

PS: That said above, I am still an vinyl addict !

Jack L's picture

Hi

"Great minds think alike" quoted d Belchien 1618.

Fully agreed to yr above statement. Why let harmonic & phase distortions add to the music signals passing through an active linestage preamp ???

Be a smart audio consumers by listening to the music performance in stead of the audio store salespersons' sales pitch.

I heard enough 'myths' rumouring any power amps can't deliver full powers without a preamp. Technically it is bullshit. Any CD/DVD players/DAC do deliver more than enough output voltage (2Vrms++) to drive any power amps (commercial made & home-brews like mine) to full output power. Period.

I've been using true passive line-amp since day one many many years back & then phono-preamp with its active linstage switchable to passive bypass. All are my DIYed design/built.

In passive mode, the music improvement over active mode of the same amp is sooo obvious: wide OPEN, airy, crystalline transparent, detail & FAST transient !! FYI, it is the fast transient response (shortest time the music signals swing from zero to their peak levels) gives our ears/brain the perception of the powerfulness (strength & latten energy) of the music performance that active mode come short !!

Playing vinyl does make such sonic difference even more pronounced. I know as I've compared the music by switching back & forth the passive bypass switch so often.

Listening is believing

Jack L

Panos.G's picture

Hi Alex,

Great article and insight on the Sonnet DAC.

I see you used a 3rd party ethernet (RJ45) I2S cable (Phasure ET^2) to connect the Denafrips Iris DDC to the Morpheus. My question here is, do you think that would also work for Singxer SU-6 or for Denafrips Hermes ?
Cause as it seems the I2S connection is the way to go, to get the full benefit of this DAC.

Many thanks
Panos

Nez7's picture

Hi, I am thinking about buying the Sonnet Morpheus as well s getting a Denafrips Hermes DDC to output the i2s signal. Can anyone point me to the specific i2s cable that is compatible with these components?

My understanding is the Sonnet uses an unconventional i2s input so an off the shelve generic i2s cable won't work.
