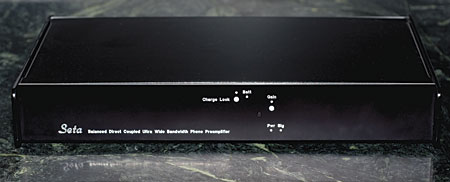

Seta Model L phono preamplifier Specifications

Sidebar 1: Specifications

Description: Solid-state phono preamplifier with flat and RIAA-equalized inputs. Inputs: XLR (balanced); RCA (balanced; functions as single-ended/balanced adapter). Outputs: XLR (balanced), RCA (single-ended). RIAA compensation curve (with Hardware RIAA Correction Module) accuracy: ±0.1dB.Voltage gain (add 12dB for Hardware RIAA Option): 43, 46, 48, 52dB. Frequency response: DC–5MHz, –3dB at all gain settings. Maximum input resistance: 2k ohms; rear-panel rotary switches for selecting 25, 50, 100, 150, 200, 500, 1k ohms; custom-value plug-in resistors can also be installed internally. Distortion: <0.001%, 10Hz–40kHz. S/N Ratio (A-weighted RMS) >85dB with 100 ohm termination. Output impedance: <40 ohms.
Dimensions: 12" (310mm) W by 2" (50mm) H by 7" (180mm) D. Weight: 6.5 lbs (3kg).
Price: $3799 (2010–2019); $5899 (2020); $4898 with internal RIAA compensation module (2010–2019), $7598 with internal RIAA compensation module (2020). Approximate number of dealers: Sold direct. Warranty: 1 year parts & labor.
Manufacturer: Channel D, Trenton, NJ. Tel: (609) 393-3600. Web: www.channld.com.

COMPANY INFO
Channel D
Trenton, NJ.
(609) 393-3600
