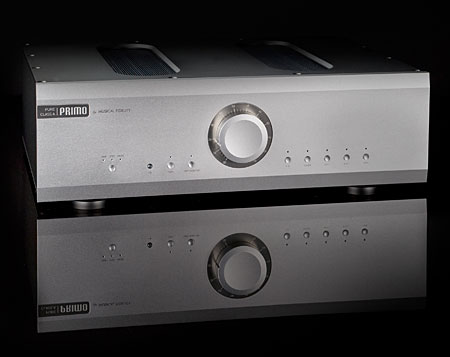

Musical Fidelity AMS Primo line preamplifier Specifications

Sidebar 1: Specifications

Description: Tubed, two-channel line preamplifier. Tube complement: 14 ECC81. Frequency response: 5Hz–50kHz, –0.5dB. Maximum output: 32V RMS. Output impedance: 600 ohms. Input impedance: 150k ohms, line inputs center-tapped. THD+noise, 20Hz–20kHz: <0.005% typical. Signal/noise: >105dB (no reference level quoted). Input sensitivity (full output): 8V. Overload margin: 30dB. Channel separation: 105dB.
Dimensions: 18.8" (483mm) W by 5.9" (150mm) H by 16" (410mm) D. Weight: 37 lbs (16.8kg).
Finishes: Silver, Black.
Serial Number Of Unit Reviewed: PR0013 (MAR 2009).
Price: $10,999. Approximate number of dealers: 25. Warranty: 5 years parts & labor.
Manufacturer: Musical Fidelity Ltd., 15-17 Fulton Road, Wembley, Middlesex HA9 0TF, England, UK. Tel: (44) (0)181-900-2866. Fax: (44) (0)181-900-2983. Web: www.musicalfidelity.com. US distributor: Tempo Sales & Marketing, PO Box 541443, Waltham, MA 02454. Tel: (617) 314-9296. Fax: (617) 336-3486.
