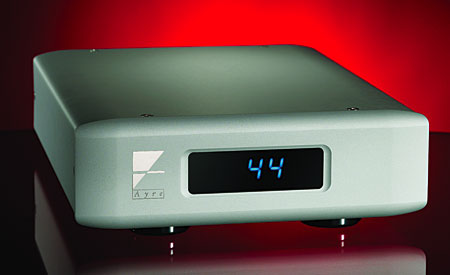

Ayre Acoustics QB-9 USB DAC Specifications

Sidebar 1: Specifications

Description: Asynchronous transfer mode, USB-input, oversampling (16x) digital-to-analog converter with minimum-phase digital filter. Input: USB 1.1–compliant. Sample rates supported: 44.1, 48, 88.2, 96kHz. Word lengths supported: up to 24 bits. Maximum output levels: 2.05V RMS (unbalanced outputs), 4.10V RMS (balanced outputs). Frequency ranges: DC–20kHz (at 44.1kHz), DC–22kHz (at 48kHz), DC–40kHz (at 88.2kHz), DC–44kHz (at 96kHz). Signal/noise: 110dB (unweighted, no reference level given).
Dimensions: 8.5" (216mm) W by 3" (76mm) H by 11.5" (290mm) D. Weight: 5 lbs (2.25kg).
Finish: Black or clear anodized aluminum.
Serial Number Of Unit Reviewed: 18A0151 (auditioning), 18A0002 (measuring).
Price: $2500. Approximate number of dealers: 45.
Manufacturer: Ayre Acoustics, Inc., 2300-B Central Avenue, Boulder, CO 80301. Tel: (303) 442-7300. Fax: (303) 442-7301. Web: www.ayre.com.

Ayre Acoustics
2300-B Central Avenue
Boulder, CO 80301
(303) 442-7300
