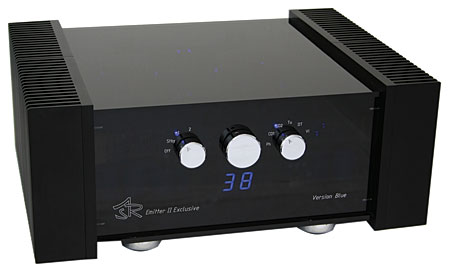

ASR Emitter II Exclusive integrated amplifier Specifications

Sidebar 1: Specifications

Description: Solid-state, multi-chassis, integrated amplifier with remote control. Maximum output power: 280Wpc into 8 ohms (24.5dBW), 500Wpc into 4 ohms (24dBW), 900Wpc into 2 ohms (23.5dBW), 1400Wpc into 1 ohm (22.4dBW). Frequency response: 0.2Hz–500kHz, –3dB. Distortion: <0.02%, 50mW to 1dB under maximum RMS output at 1kHz; <0.1%, 20Hz–20kHz. Input impedance: 10k ohms. Input sensitivity (for 150W into 8 ohms): level "61," 2.0V; level "76," 400mV. Voltage Gain: up to 28dB in position 1, up to 43dB in position 2, depending on volume setting. Signal/Noise Ratio: >90dB ref. 1W/8 ohms.
Dimensions: Amplifier: 22.4" (570mm) W by 9.1" (230mm) H by 17.3" (440mm) D. Weight: 103 lbs (47kg). Two power supplies (each): 16.9" (430mm) W by 5.9" (150mm) H by 15.6" (400mm) D. Weight: 70.6 lbs (32kg). Battery pack: 16.9" (430mm) W by 5.9" (150mm) H by 15.6" (400mm) D. Weight: 57.3 lbs (26kg).
Serial Number Of Unit Reviewed: USFEIIX02.
Price: $24,900 with battery supply. Approximate number of dealers: 7.
Manufacturer: ASR Audio Systeme, Hohe Strasse 700, House 5A, D-35 745 Herborn, Germany. Tel: (49) 27-72-649-880. Fax: (49) 27-72-40-488. Web: US distributor: Fanfare International, Inc., 500 East 77th St. Suite 2923, New York, NY 10162. Tel: (212) 734-1041. Fax: (212) 734-7735. Web:

ASR Audio Systeme
US distributor: Fanfare International
500 East 77th St. Suite 2923
New York, NY 10162
(212) 734-1041
