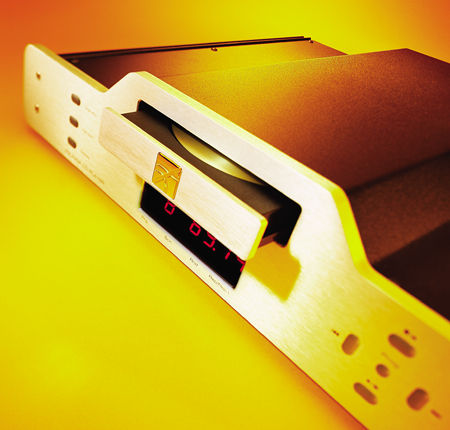

Simaudio Moon Equinox CD player Specifications

Sidebar 1: Specifications

Description: Remote-controlled CD player with one set of single-ended analog outputs (RCA), one S/PDIF digital output (RCA). Maximum output level: 2V. Frequency response: 20Hz-20kHz, -0.3dB; 2Hz-72kHz, -3dB. Channel separation: >109dB. Signal/noise: >108dB ref. 0dBFS. THD: <0.001% at 1kHz, 0dBFS (A-weighted). IMD: <0.005%. Slew rate: 50V/µs. Low-level linearity: <1dB to below -110dBFS. Intrinsic jitter: <50ps RMS. Output impedance: 100 ohms. Power consumption: 8W at idle.
Dimensions: 17" (435mm) W by 4.25" (110mm) H by 14" (360mm) D. Shipping weight: 22 lbs (10kg).
Finish: Black with aluminum front panel.
Serial number of unit reviewed: F417068.
Price: $2000. Approximate number of dealers: 70.
Manufacturer: Simaudio, 95 Chemin de Tremblay, Unit 3, Boucherville, Quebec J4B 7K4, Canada. Tel: (450) 449-2212. Fax: (450) 449-9947. Web:

95 Chemin de Tremblay, Unit 3
Boucherville, Quebec J4B 7K4
(450) 449-2212
