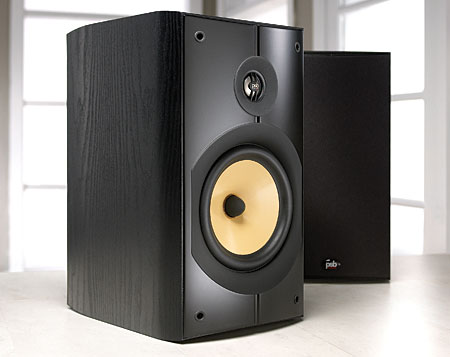

PSB Image B6 loudspeaker Specifications

Sidebar 1: Specifications

Description: Two-way, port-loaded, stand-mounted loudspeaker. Drive-units: ferrofluid-cooled, 1" (25mm) titanium-dome tweeter with neodymium magnet, 6.5" (165mm) clay/ceramic-filled polypropylene-cone woofer with rubber surround. Crossover Type: 4th-order Linkwitz-Riley. Crossover frequency: 1.8kHz. Frequency response: 59Hz–20kHz, ±1.5dB (on axis at 0°); 45Hz–23kHz, ±3dB (on axis at 0°); 59Hz–10kHz, ±3dB (off axis at 30°). Low-frequency cutoff: –10dB, 40Hz. Sensitivity (2.83V/W/m, IEC-filtered pink noise, C-weighted): 89dB in anechoic chamber, 90dB in typical listening room. Impedance: 6 ohms nominal, 4 ohms minimum. Recommended amplification: 20–150W.
Dimensions: 14" (357mm) H by 7.75" (198mm) W by 10.5" (268mm) D. Weight: 14.2 lbs (6.4kg).Finishes: Black Ash, Dark Cherry vinyl.
Serial Numbers Of Units Reviewed: 10210901663/4.
Price: $495/pair. Approximate number of dealers: 250.
Manufacturer: PSB Speakers International, 633 Granite Court, Pickering, Ontario L1W 3K1, Canada. Tel: (905) 831-6555. Fax: (905) 837-6357. Web: www.psbspeakers.com.

COMPANY INFO
PSB Speakers International
633 Granite Court
Pickering, Ontario L1W 3K1
Canada
(905) 831-6555
