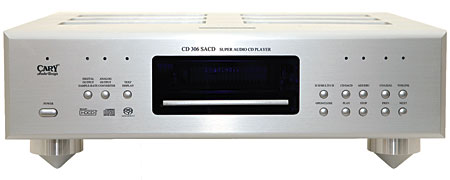

Cary Audio Design CD 306 SACD Professional Version SACD/CD player Specifications

Sidebar 1: Specifications

Description: SACD/CD player with wireless IR remote control, HDCD decoding, and switchable upsampling frequency (CD playback only). Plays SACD, CD, CD-R, CD-RW. Digital outputs: AES/EBU via XLR, S/PDIF via RCA, TosLink. Analog outputs: 1 pair balanced (XLR), 1 pair single-ended (RCA). Digital inputs: AES/EBU via XLR, S/PDIF via RCA, TosLink; capable of accepting sample rates up to 192kHz. Control inputs: RS-232 port via 9-pin D-subminiature connector. Frequency range: 2Hz–22kHz CD, 2Hz–100kHz SACD. Channel separation: 109dB at 1kHz. THD: 0.0004% at 1kHz. Maximum output level: 6V RMS balanced, 3V RMS unbalanced. Output impedance: 440 ohms balanced, 220 ohms unbalanced. Power consumption: 65W.
Dimensions: 18" (457mm) W by 5" (127mm) H by 15" (381mm) D. Weight: 37 lbs (16.8kg).
Finishes: Aluminum: silver or black.
Serial Number Of Unit Reviewed: 08306PV6018.
Price: $8000. Approximate number of dealers: 82. Warranty: 1 year parts & labor.
Manufacturer: Cary Audio Design, Inc., 1020 Goodworth Drive, Apex, NC 27539. Tel: (919) 355-0010. Fax: (919) 355-0013. Web:
