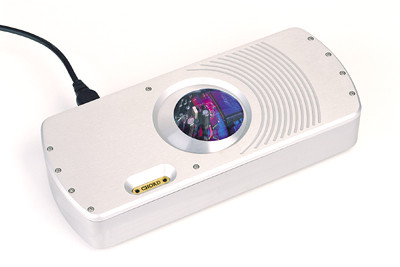

Chord Electronics DAC64 D/A processor Specifications

Sidebar 1: Specifications

Description: D/A processor with three digital inputs (XLR, AES/EBU; TosLink optical and BNC electrical, S/PDIF), RAM input buffer, and balanced and unbalanced analog outputs. Sample frequencies accepted: 32-192kHz. THD: <-98dB (1kHz, 24-bit data). S/N ratio: >110dB. Channel separation: >110dB at 1kHz, >100dB at 22.1kHz. Dynamic range: 120dB. Maximum output level: 6V RMS balanced, 3V RMS unbalanced. Output impedance: 75 ohms (short-circuit protected).
Dimensions: 13.3" (338mm) W by 2.4" (60mm) H by 5.7" (145mm) D. Weight: 15.4 lbs (7kg).
Serial numbers of units reviewed: USD013, USD015.
Price: $3040. Approximate number of dealers: 8.
Manufacturer: Chord Electronics Ltd., The Pumphouse, Farleigh Bridge, Farleigh Lane, Maidstone, Kent ME16 9NB, England, UK. Tel: (44) (0)1622-721444. Fax: (44) (0)1622-721555. Web: US distributor: The Sound Organisation, 11140 Petal Street, Suite 350, Dallas, TX 75238. Tel: (972) 234-0182. Fax: (972) 234-0249. Web:

Chord Electronics
1009 Oakmead Dr.
Arlington, TX 76011
(972) 234-0182
