Paradigm Control Monitor loudspeaker Measurements

Sidebar 2: Measurements

I use a mixture of nearfield, in-room, and quasi-anechoic FFT techniques to investigate possible objective factors that might explain the sound heard. Readers wanting more detail on this regime should read pp.166–167 in the October 1989 issue (Vol.12 No.10).

Fig.1 shows the Control Monitor's response to the rectangular test pulse on the tweeter axis with the grille removed. Both drive-units appear to be connected with the same polarity; ie, they both start moving forward in response to the positive voltage spike. The initial short-risetime pulse is from the tweeter, which leads the woofer in time on this axis, but note that it appears to have a greater degree of undershoot on the negative side of the time axis than its initial positive-going rise, something I haven't seen before when both units appear to have the same polarity.


Fig.1 Paradigm Control Monitor, impulse response on tweeter axis at 50" (5ms time window).

Repeating this measurement over a ±15° lateral window and averaging the resultant FFT-derived responses gives the curve shown in fig.2. The midband and treble are reasonably smooth, though too much energy is present in the top audio octave. With the grille on, a significant suckout between 4 and 7kHz appears in this response, although the top-octave peak is then reduced in level. Fig.2 also shows the nearfield response of the woofer, this 6dB down at 48Hz, not taking the contribution of the port into account.


Fig.2 Paradigm Control Monitor, anechoic response on tweeter axis at 48", averaged across 30° horizontal window and corrected for microphone response, with nearfield woofer and port responses.

At the listening position (fig.3, where the effect of LF standing-waves in the room has been minimized by spatial averaging), these quasi-anechoic measurements translate to a balance with an excess of upper-bass energy, though there is useful output down to 30Hz at moderate listening levels. The midrange and treble balance is again very smooth, though a slight energy lack around the crossover region is followed by what is too much tweeter energy. Personally, I would have gone for a slightly less sensitive tweeter setting on the calibration control. I am sure that this tweeter balance, coupled, again, with a slight peak centered on the 12.5kHz 1/3-octave band, correlates with the "somewhat cold" subjective balance noted.


Fig.3 Paradigm Control Monitor, spatially averaged, 1/3-octave in-room response.

The Control Monitor's impedance (fig.4, plotted with a scaling of 1.9 ohms/vertical division) drops to a minimum of 6.8 ohms in the upper bass and 9 ohms in the treble, suggesting that the speaker will present no drive problems to inexpensive amplifiers. The dimple in the impedance amplitude and phase curves at 460Hz is also present when just the woofer is measured; it is probably due to a resonance of some sort—remember that I noted a strong cabinet sidewall mode in this region—and might correlate with the subjective "thickening" in the midband.—John Atkinson

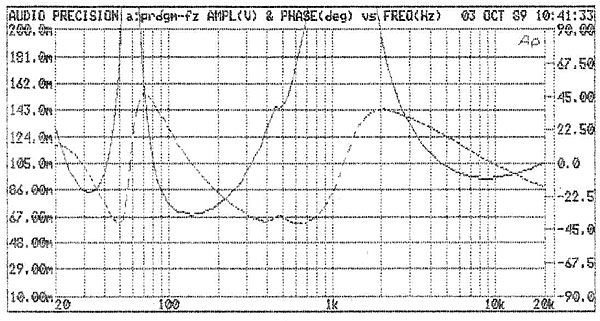

Fig.4 Paradigm Control Monitor, electrical impedance (solid) and phase (dashed) (1.9 ohms/vertical div.). Note that the phase scale is inverted, with inductive phase angles incorrectly shown as negative rather than positive.
