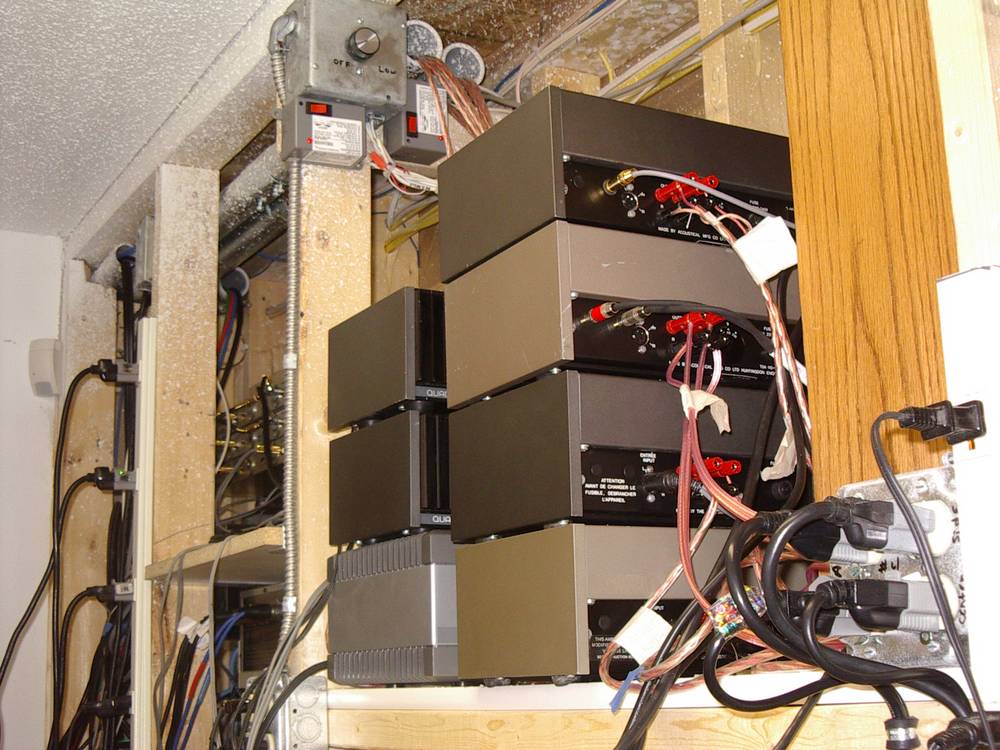

Note the steel speaker cable conduits, the 24 volt DC switching relays for the amplifiers. The control for the amp case extractor fan is seen. This fan is located remote from the studio and is switched from the relay that turns on the front left/right speaker amp bank

Average: 2.5 (2 votes)
mcarter's picture
The amplifier case
mcarter  |  Aug 28, 2006
Views:
Dimensions: 1000x750
Size: 164kb
Filed Under: General
COMMENTS
zundelfan's picture
Submitted by zundelfan (not verified) on December 2, 2006 - 8:35pm

You and DUP are the maddest of the mad! The meticulousness of this installation is truly awe-inspiring!

DrMark's picture
Submitted by DrMark (not verified) on December 3, 2006 - 3:30am

I have always loved Peter Walker's current dumping class C feed forward designs. I have played with them for years. This puts seven of his amps to good use!
