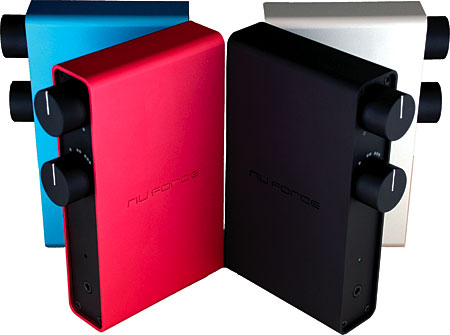

NuForce Icon USB-input integrated amplifier Specifications

Sidebar 1: Specifications

Description: Miniature integrated amplifier with USB DAC, line-level output (for subwoofer) on 3.5mm stereo jack, and headphone output. Inputs: RCA, 3.5mm stereo, analog; USB, (1.1, 2.0 compatible). USB DAC: USB 1.1, 2.0-compatible. USB native bit rate: 16-bit/32–48kHz. Digital signal/noise ratio: 98dB. Speaker outputs: RJ45 connectors with 15µm-thick gold plating to gold-plated banana plug (speaker cables provided). Maximum headphone output into 32 ohms: 31.25mW. THD: <0.03%, 20Hz–20kHz. Frequency response: 20Hz–20kHz, <–1dB. Maximum output power (10.8dBW): 12Wpc. "Peak" power: 15Wpc. THD+N: 0.05%, 1kHz, 2W into 4 ohms, 0.06%, 1kHz, 2W into 8 ohms. Power bandwidth : 26Hz–50kHz, –1dB, 1W into 4 ohms. Signal/noise ratio: 84dB ref. 7W into 8 ohms. Power adapter: 12–14V, 25W, 100–240VAC worldwide voltages.
Dimensions: 6" (155mm) W by 1" (25mm) H by 4.5" (115mm) D. Weights: 1 lb (0.45kg) net, 5 lbs (2.3kg) shipping.
Serial Number Of Unit Reviewed: 0053.
Price: $249. Approximate number of dealers: 50. Warranty: 30 days, satisfaction or money back; 3 years parts & labor.
Manufacturer: NuForce, Inc., 356 South Abbott Ave., Milpitas, CA 95035. Tel: (408) 627-7859. Fax: (408) 262-6877. Web: www.nuforce-icon.com.

COMPANY INFO
NuForce, Inc.
356 South Abbott Ave.
Milpitas, CA 95035
(408) 627-7859
