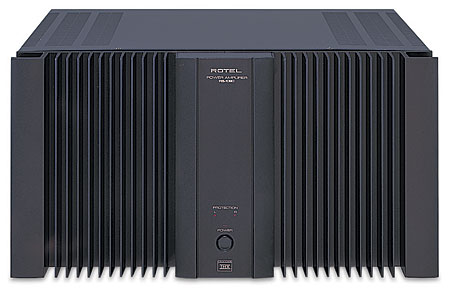

Rotel RB-1090 power amplifier Specifications

Sidebar 1: Specifications

Description: Solid-state stereo power amplifier. Power output: 380Wpc into 8 ohms (25.8dBW), 700Wpc into 4 ohms, (25.4dBW), both 20Hz–20kHz, <0.03%. THD: <0.03%. IM distortion (60Hz:7kHz, 4:1): <0.03%. Frequency response: 10Hz–100kHz, ±1dB. Damping factor (20Hz–20kHz, 8 ohms): 1000. Speaker impedance (combined): 4 ohms minimum. S/N ratio (IHF A network): 125dB. Input impedance/sensitivity: 33k ohms/1.8V. THX Ultra certified. Power consumption: 800W.
Dimensions: 17 3/8" W by 9½" H by 15¾" D. Weight: 83.6 lbs.
Serial number of unit reviewed: 9171058.
Price: $1999. Approximate number of dealers: 250.
Manufacturer: Rotel of America, 54 Concord Street, North Reading, MA 01864-2699. Tel: (978) 664-3820. Fax: (978) 664-4109. Web: www.rotel.com.
