PSB Imagine T3 loudspeaker

I am a big believer in supporting events promoted by specialty audio retailers. They reinforce the idea that audiophiles and manufacturers—even reviewers—are parts of a vibrant community that believes that listening to music with the highest possible quality is one of the more important things in life. The "Music Matters" evenings arranged by Audio Advice in North Carolina, Definitive Audio in Seattle, and Listen Up in Colorado exemplify that idea, and it was in April 2015, at Listen Up's Denver store, that I used a pair of PSB's new Imagine T3 tower speakers to play the audience some of my own recordings. The T3 superficially resembles PSB's Synchrony One, a speaker I very favorably reviewed in April 2008, and I was equally impressed by the new flagship—impressed enough to request a pair for review.

Imagine this
The Imagine T3 costs $7498/pair—significantly more than the Synchrony One's $4500/pair. But with its gracefully curved, veneered enclosure, formed under pressure from MDF laminations that now include the front baffle and taper to a rounded spine at the rear, the T3 is a gorgeous-looking piece of furniture compared to the Synchrony One's more prosaic look. The top panel is now gently curved. And the difference goes more than skin-deep. While the drive-unit complement is the same—three woofers, a midrange unit, and a 1" tweeter—the woofers are now 7" units with cones of compressed felt and fiberglass, and the midrange is now a 5.25" unit, with a cone of the same material. The tweeter is a hand-selected version of PSB's titanium-dome model, which has ferrofluid-cooling and a neodymium magnet. The woofers are constructed on a die-cast aluminum chassis, and have a copper shorting ring over the magnet pole-piece to reduce third-harmonic distortion, and a motor with a symmetrical magnetic field to reduce second-harmonic distortion.

While the Synchrony One's woofers were positioned at the top, middle, and base of the front baffle, the Imagine T3's all lie below the tweeter; it is now the midrange unit that is at the top, in its own subenclosure. But like the Synchrony, each woofer is loaded with its own vented subenclosure with a port firing from the rear panel. The placement of each woofer on the front baffle, the tuning for its port, and its low-pass filter have been arranged to eliminate the usual "floor dip" in the response that results from destructive interference between the drive-units' direct sound and the reflection of that sound from the floor.

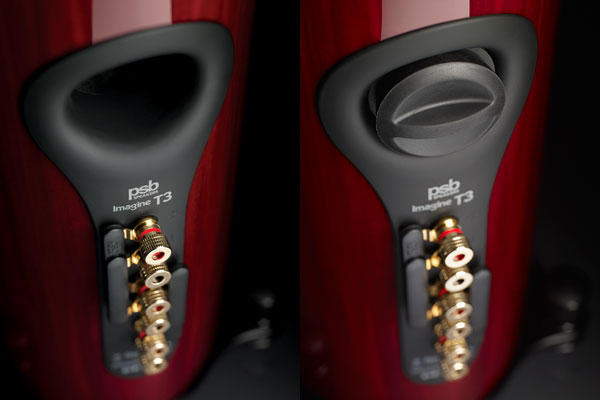

The crossover between the woofers and midrange is a symmetrical, fourth-order Linkwitz-Riley type; that between the midrange unit and tweeter is set at a lower-than-usual 1800Hz. Electrical connection is via six gold-plated binding posts in a vertical array below the bottom port. (These posts are not quite large enough to accept the thick spades fitted to some audiophile cables.) Two pairs of four-way jumpers allow the speaker to be driven single-, bi-, or triwired. The high-gloss–finished enclosure sits on sideways-mounted, black, metal outriggers that can be fitted with carpet-piercing cones or rubber feet. The final voicing of the Imagine T3 was performed by PSB's founder and chief engineer, Paul Barton, at the NRC's facility in Ottawa, Canada.

Listening
Some speakers make a positive first impression because they do one or two things really well; it can take time to grasp that those may be the only things they do well. By contrast, while a speaker that is truly neutral (to use a controversial term) simply steps out of the way of the music, it may well not sound "impressive." PSB's Imagine T3 is an example of such self-abnegation. Once I had the T3s optimally set up, I found it very difficult to get a handle on their sonic character—other than simply getting caught up in the music I played. High frequencies? Present in the correct proportion to the midrange. Midrange? Naturally balanced, uncolored, detailed. Low frequencies? Extended, clean, no boom, and in the correct proportion to the midrange.

On that setup: I listened to the PSBs without their grilles, and the first music I played was a complete set of Brahms piano trios I'd just purchased from HDtracks, with violinist Christian Tetzlaff, cellist Tanja Tetzlaff, and pianist Lars Vogt (DSD128 files, Ondine). With the PSBs driven by Pass Labs XA60.5 monoblocks, the sound was warm, smooth, and uncolored—but, with all of the T3s' ports open, was also perhaps a bit too rich. PSB supplies rubber plugs to stop one or more of the Imagine T3's ports. In addition, the input terminals for the bottommost woofer can be short-circuited, which, in effect, turns that woofer into a bass trap. I experimented first with positioning, to optimize the treble balance and the stereo imaging, then tried adjusting the bass. I ended up with the bottom woofer of each speaker driven but with its port blocked, which gave the best transition from the midbass to the upper bass.

The low-frequency, 1/3-octave warble tones on Editor's Choice (ALAC file ripped from CD, Stereophile STPH016-2) played cleanly down to 40Hz, with the 32Hz tone exaggerated by the lowest-frequency mode in my room. The 25Hz tone was just audible, but the 20Hz tone was missing in action. The half-step–spaced tonebursts on this disc also spoke cleanly, though with some slight emphasis between 500Hz and 1kHz and between 2 and 4kHz, which I could hear with the dual-mono pink-noise track from Editor's Choice. Angling the speakers slightly away from the toed-in positions, so I could just see the inside edge of each speaker, gave the most even treble balance. The central image of the noise signal was narrow at all frequencies and stably positioned, though it changed more with my ear height than the measurements had led me to expect. The smoothest balance was when I sat with my ears level with the T3s' tweeters, which are 37" from the floor.

Once optimized for my room, the Imagine T3s sounded spectacular with well-recorded acoustic bass. A guilty secret: I love the French vocal group the Swingle Singers, particularly their transcriptions of music by J.S. Bach, which—another guilty secret—I first got to know through les Swingles' records rather than through recordings of works played on the original instruments. But part of the appeal of the Jazz Sebastian Bach CDs I ripped to ALAC files was the empathetic double-bass lines, supplied by French player Pierre Michelot, who subsequently became a member of Jacques Loussier's Play Bach ensemble and was also the bassist on Miles Davis's L'Ascenseur pour l'Echafaud. I had assumed that much of what Michelot played was improvised, but when I got round to looking at the music, I found that his swinging four-to-the-bar line in the andante of the Sinfonia from Bach's Keyboard Partita 2 in c, BWV 826, was played exactly as written nearly 300 years ago. And the Imagine T3's excellent low-frequency clarity kept nicely separate the sound of Michelot's bass and the male voice that doubles it an octave higher.

However, when I listened to Ray LaMontagne channeling Pink Floyd in the triple-time anthem "While It Still Beats," from his 2016 album, Ouroboros (24-bit/96kHz FLAC file, RCA/PonoMusic), the T3's low frequencies still sounded a touch gruff. I changed to MBL's Corona C15s. These class-D monoblocks took greater control of the Imagine T3's low frequencies than the Pass Labs amplifiers while preserving the T3's smooth, neutral midrange character. The electric bass on the LaMontagne album benefited, but the treble now sounded a tad too forward. I returned to the Pass XA60.5s for the bulk of my listening sessions.

Still on a guilty-pleasures vocal trip, I cued up Daryl Runswick's mock-baroque arrangement of Noël Coward's "I'll See You Again," from the King's Singers' Sing Flanders & Swann and Noël Coward (24/192 needle drop from LP, EMI). The PSBs let me clearly hear that that this 1977 album was recorded in a studio, with what sounds like plate reverb—Bryan Kay's bass notes never would have sounded this forceful in a non-studio acoustic. But reproduced by the Imagine T3s, all five voices sounded so clean, so much in service to the music, that I could forget the recording's provenance and become immersed in the immaculate performance.

My own choral recordings are always made with the singers performing in a real space. In 2015, I recorded the Portland State Chamber Choir, directed by Ethan Sperry, in the gloriously warm and supportive acoustic of Portland's St. Stephen Catholic Church (footnote 1). One of the works recorded (24/88.2k WAV file) was Water Night, the 1995 composition that established the contemporary American composer Eric Whitacre as a major force in modern music. There is a climax on the word eyes in measure 34, at the end of the phrase "If you open your eyes," where the basses sing a G-flat chord on which Whitacre has superimposed the tenors, altos, and sopranos singing a tone cluster that fills in all the diatonic notes between E-flat4 and A-flat5. I keep returning to that 14-part chord—how could all those stacked, closely spaced notes sound so gloriously tonal?—and through the PSB speakers, gloriously tonal they did indeed sound, yet with sufficient clarity and midrange neutrality for me to pick out the individual notes, if I wished.

I recently purchased the hi-rez digital transfers of Keith Jarrett's The Köln Concert (24/96 ALAC files, ECM/HDtracks), so that I could compare them with the MQA versions in a future review. Well-recorded solo piano is always difficult for speakers to reproduce correctly, because piano notes have high levels of energy in the region where speakers have resonances of various kinds, and because the nature of the music often doesn't mask those resonances once they have been excited. This essential Keith Jarrett album does have a rather close balance, but it sounded superb through the PSBs. I couldn't hear anything untoward in the midrange, other than a faint whistle when I put my ear close to the uppermost ports on the enclosure's rear. I returned to this album after taking the T3's measurements, and found a high-Q resonance in the top and middle port outputs that must be associated with what I heard. However, back at the listening position, even after I knew the resonance was present, I still couldn't hear that it had any noticeable effect on the sound of Jarrett's piano.

As I mentioned before, the first music I listened to through the PSB Imagine T3s was a set of Brahms's Piano Trios. The date was April 21, 2016. And as I was deciding what to play next, I heard the news that Prince had been found dead. I was struck uncharacteristically silent. I set the title track of Purple Rain (ALAC file ripped from CD, footnote 2, Warner Bros.) on repeat and let the music wash over me. The electric guitar, like the tenor saxophone and the cello, has the same tessitura as the male voice, and every great artist who plays one of those instruments develops a unique voice on it. You just have to hear one phrase to know that it is Prince playing the electric guitar. That is the sign of greatness, and that day in April, my PSB-based system allowed Prince's greatness to shine through, unencumbered by artifact.

Conclusions
While more expensive than its predecessor, the Synchrony One, PSB's Imagine T3 offers superb sound quality for what is still a relatively affordable price. To improve on its combination of full frequency-range sound, clarity, and neutrality, you would need to spend almost three times as much. It is also a beautiful piece of audio furniture.



Footnote 1: This should be released on CD in 2017.

Footnote 2: The 1983 live performance of "Purple Rain" at Minneapolis club First Avenue, on which the album version was based, can be found here; or, with better sound and annotations, on Facebook. Dig, if you will, guitarist Wendy Melvoin's extended intro.

COMPANY INFO
PSB Speakers International
633 Granite Court
Pickering, Ontario L1W 3K1
Canada
(905) 831-6555
ARTICLE CONTENTS

COMMENTS
audiodoctornj's picture

We here at Audio Doctor, www.audiodoctor.com, would like to thank John Atkinson for such a nice review of a product we love!

Audio Doctor, has one of the largest collections of high end audio on the East Coast, and we sell many different brands of High End loudspeakers, including Dali, Paradigm, KEF,KEF Reference, KEF Blades, Polymer Audio, Jantzen,Tannoy, Cabasse,and others.

We ordered our demo pair of the T3's, without ever hearing them, based on some positive rumors that the speakers were extremely good, and were comparable to much, much, more expensive loudspeakers.

We also had positive experiences with the previous PSB Syn Ones which were excellent, however on comparison, the PSB T3 were in a totally different league!

The PSB T3's tweeter although it looks to be identical, is actually far cleaner with more extension and sweetness over the earlier incarnation of this tweeter.

The PSB's midrange is also cleaner, and the entire speaker's sound stage is considerably larger.

The bass of the PSB T3 is awesome, deep, tight, and prodigious!

If you look at how much speaker you get with the T3, it is clear that you have to spend $5,000.00-$7,000.00 over the cost of the T3's, to really move into a higher class of speaker one that will be actually better and better by degree.

To say that the T3 is revelation, and a bargain for the price, is an under statement.

Many people would never think that a PSB product could be listed as a true reference and compete with the world's best loudspeakers man you would be so wrong!

Paul Barton has done it again, he has raised the bar for affordable reference speakers, we have found that a pair of the PSB T3's, with good electronics, and a good source, will give you one hell of sound!

low2midhifi's picture

Our friends from the north seem to have some solid offerings with their Paradigm and PSB speaker products.

What happened to the Synchrony line of PSB speakers? I recall that they had a couple of stand-mount models, both of which disappeared from the company's website. If I recall one of these Synchrony stand-mounts had 5.75" or so woofer; the other a 6.5" or 7" woofer.

These products, again by my recollection, had interesting looking drivers (some sort of woven fiberglass), a nice fit and finish, and had a very solid billed weight. Will this Imagine line come with some successor products of sorts to those two discontinued Synchrony stand-mounts?

Allen Fant's picture

Nicely done- JA. Happy Listening!

Axiom05's picture

Hello JA. I have seen you refer to the "lowest-frequency diagonal room mode" in many of your speaker reviews. Would you please elaborate on this and define exactly what this is? I have never heard of a diagonal room mode before and none of the room mode calculators that I use mention this specifically. I would also be interested in learning what steps you have used to try to control this mode (difficult due to the long wavelength involved). Thanks!

smileday's picture

I see very complicated dips and peaks in 1/48 oct smoothed curve. I cannot explain them using the simple standing wave modes between parallel walls of rectangular box.

I am wondering how successful the room mode calculators were in your listening room.

Axiom05's picture

I have found that room mode calculators are of limited help. This is probably due to the presence of windows, doors, closets, different construction materials within room, on and on. I have an unexplainable large peak at 38 Hz which is not listed in any room calculation based on primary, tangential, and oblique modes, thus leading to my question.

smileday's picture

Sorry. Blocked comment test.

smileday's picture

Sorry again. I am doing this test because my real comment is blocked in Stereophile's Bose review page right after I posted a test comment on that page.

tm1070's picture

Not to knock these things, as I am sure they are excellent, but I do miss reading the PSB site in the '90s when PSB described Stratus Gold (paraphrasing) "the best we know how to do for ~$2100". I am sure this Imagine T3 is good deal relatively speaking, but it's pretty expensive. This feels pretty corporate to me.
