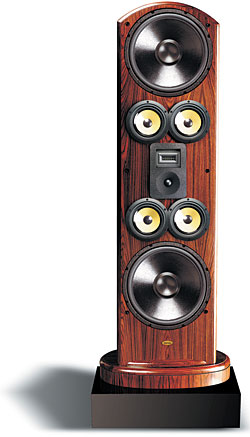

Description: Four-way, bi-ampable, floorstanding loudspeaker with ten drive-units and external bass processor. Drive-units: 4" ribbon tweeter, 1.25" fabric-dome midrange, four 7" double-layered Kevlar Hexacone midrange units, four 15" carbon-fiber/pulp composite-cone woofers. Crossover frequencies: 300Hz, 3kHz, 10kHz. Low-frequency alignment: sixth-order differential. Frequency response: 22Hz–30kHz, ±2dB. Sensitivity: 95dB/2.83V/m. Impedance: 4 ohms. Recommended amplification: 10–600W.
Dimensions: 63" (1615mm) H by 17" (435mm) W by 13" (333mm) D. Base: 24" (615mm) W by 4" (100mm) H by 17" (435mm) D. Weight: 210 lbs (95kg).
Finishes: Standard: Medium Oak, Black Satin Oak. Premium: Ribbon Mahogany, Natural Cherry, Rosewood, Walnut with Cherry Stain.
Serial Numbers Of Units Reviewed: Speakers: AO3136WHRMC1 & 2 (Paul Bolin), AO6027WHARWK1 & 2 (Carl Engebretsen). Step One bass processor: 08089.
Price: $15,750/pair–$17,500/pair. Approximate number of dealers: 42.
Manufacturer: Legacy Audio, 3023 Sangamon Avenue, Springfield, IL 62702. Tel: (800) 283-4644. Web: www.legacy-audio.com.
