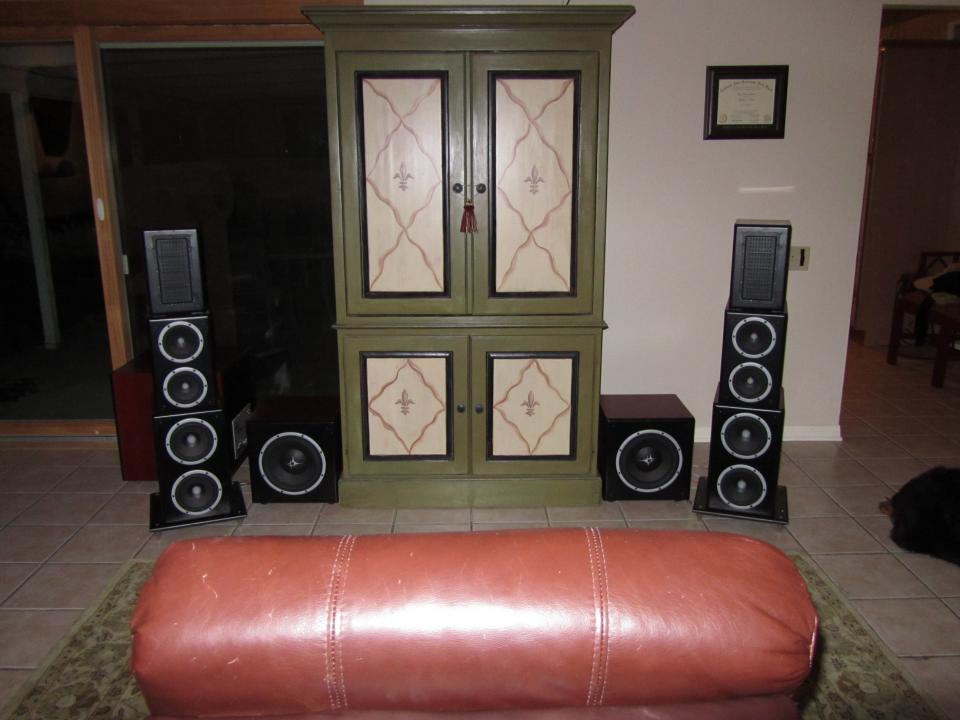

Computer based system consisting of;
Computer
Squeezebox touch
Behringer DEQ 2496, Behringer SRC 2496, and two Behringer DCX 2496's(One per channel).
Signal stays in the digital domain until the DCX outputs..
Conrad Johnson MV 50 for planar magnetic mid-tweet drivers
Three Behringer A500's for woofers
500w Bash subwoofer amp
12" Dayton reference subwoofer driver
Dayton cabs
Peerless XXLS's
Peerless HDS Exclusives
BG Neo 10 planar magnetics in sealed cabinets
Xover points(4th order); 40 80 160 320 (Planar magnetics dsp'd flat from 320hz to 20khz).

5 way active diy system

By remlab • Posted: Aug 26, 2011

Dimensions: 2592x1944

Size: 1089kb

Filed Under: Home Audio Systems

Comments

The digital signal from the

Submitted by remlab on August 26, 2011 - 7:27pm.

The digital signal from the computer is either 24/96 or upsampled to 96khz. The signal is then split and sent to two(One per channel) 24/96 digital crossovers/proccessors where they divide each channel six ways at 48db per octave. Each octave up to 320hz is seperated and sent to its own amplified woofer that is optimized to handle that one particular frequency band. Above 320hz, BG neo 10 and 3 planar ribbon transducers in a half inch thick folded aluminum baffles take over. The crossover on those is set at 1.4khz. High grade 1/2" wool felt is placed on the sides of the back of the dipole to minimize the "horn" loading of the folded back.
