Wharfedale Jade 7 loudspeaker Measurements

Sidebar 3: Measurements

I used DRA Labs' MLSSA system and a calibrated DPA 4006 microphone to measure the Wharfedale Jade 7's frequency response in the farfield, and an Earthworks QTC-40 for the nearfield responses. My estimate of the Wharfedale's voltage sensitivity was 87.7dB(B)/2.83V/m, which is within experimental error of the specified 88dB. The speaker's nominal impedance is specified as 6 ohms; the solid trace in fig.1 shows that the impedance magnitude remains between 4 and 6 ohms for much of the audioband, with a minimum of 3.2 ohms at 91Hz. The electrical phase angle (dotted trace) is generally low, however, meaning that a good 4 ohm–rated amplifier or receiver will have no difficulty driving the Jade 7.

Fig.1 Wharfedale Jade 7, electrical impedance (solid) and phase (dashed) (2 ohms/vertical div.).

The small discontinuity at 20kHz in the impedance traces suggests that this is the tweeter's fundamental dome resonance (ie, where the center of the dome is moving in antiphase to the outer ring)—a lower frequency than normal for a modern metal-dome tweeter. The traces in fig.1 are free from the wrinkles in the midrange that would hint at the existence of enclosure panel resonances of some kind. However, investigating the behavior of the gracefully curved cabinet with a simple plastic-tape accelerometer did uncover several resonant modes, the highest in level lying at 246, 438, and 750Hz (fig.2). This graph was taken with the accelerometer in the center of a sidewall level with the bottom woofer. The mode at 438Hz was the only one that could be detected at other positions on the sidewall. As Robert Deutsch heard no colorations that could have been laid at the feet of resonances in what he described as "an enclosure that is, to a large extent, sonically inert," this behavior looks worse than it sounds.

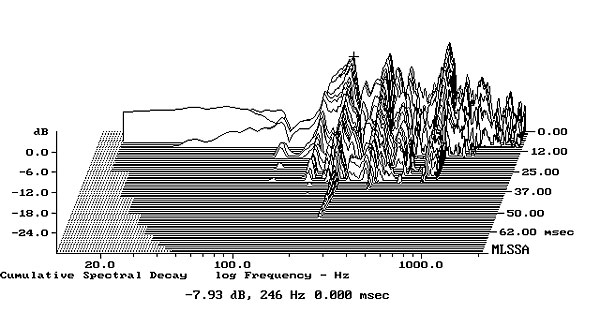

Fig.2 Wharfedale Jade 7, cumulative spectral-decay plot calculated from output of accelerometer fastened to center of side panel level with bottom woofer (MLS driving voltage to speaker, 7.55V; measurement bandwidth, 2kHz).

The single impedance peak centered on 45Hz in fig.1 suggests that Wharfedale's aperiodic woofer alignment is closer to that of a sealed box than a reflex enclosure of some kind. Certainly I could find no appreciable acoustic output coming from the slot between the cabinet proper and the plinth. The blue trace in fig.3 shows the output of the dual woofers; it peaks broadly between 60 and 120Hz, with a second-order high-pass rolloff and closer to a third-order low-pass rolloff. The crossover to the lower-midrange drive-unit (red trace) appears to occur just below 200Hz, as specified, and this driver's output actually overlaps that of the woofers to some extent before rolling off below 600Hz. There is also a broad overlap between the lower-midrange driver's output and that of the small upper-midrange driver (green trace below 3kHz) at the other end of its passband. The tweeter's on-axis response (green trace above 3kHz) rises slightly before ducking in the region below the tweeter's dome resonance, which occurs, as I suspected from the impedance plot, just below 20kHz.

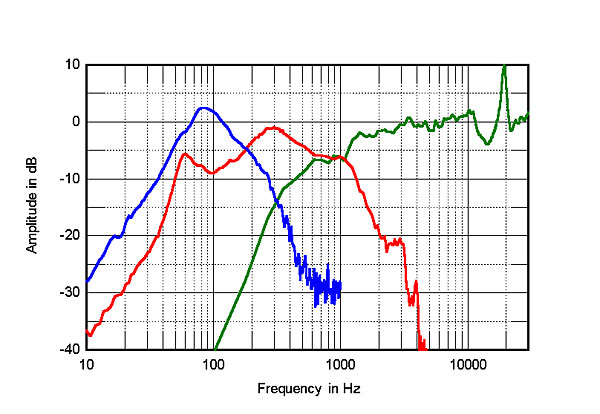

Fig.3 Wharfedale Jade 7, acoustic crossover on HF axis at 50", corrected for microphone response, with nearfield responses of woofers (blue) and lower-midrange driver (red), respectively plotted below 500Hz and 1kHz.

Fig.4 shows how these individual outputs sum in the farfield, averaged across a 30° horizontal window centered on the tweeter axis. Other than the boost of 4dB in the upper bass, which will be an artifact of the nearfield technique used to measure the response in this region, the Jade 7's response is extraordinarily flat! For listeners older than 40 or so, that tweeter resonance will be moot. But I do know a couple of younger listeners whose hearing sensitivity extends up to 20kHz, and it would be a problem for them. In the bass, the speaker gives full output to 50Hz and, with its gentle rolloff, will offer useful extension to 30Hz with the usual boundary reinforcement, as RD found in his listening.

Fig.4 Wharfedale Jade 7, anechoic response on HF axis at 50", averaged across 30° horizontal window and corrected for microphone response, with complex sum of nearfield woofer and midrange responses plotted below 300Hz.

Bob also remarked on the Jade 7's excellent stereo imaging, which tends to be associated with lateral off-axis behavior that is smooth and even. Fig.5 reveals that this is indeed the case with the Jade 7. Each drive-unit's radiation pattern smoothly blends with those of the others to give textbook dispersion. This graph also shows that the on-axis trough in the top octave fills in to the speaker's sides. In the vertical plane (fig.6), the Wharfedale's dispersion, normalized to the response on the tweeter axis, is wide and even—just as well, given that the tweeter is a high 45" above the floor.

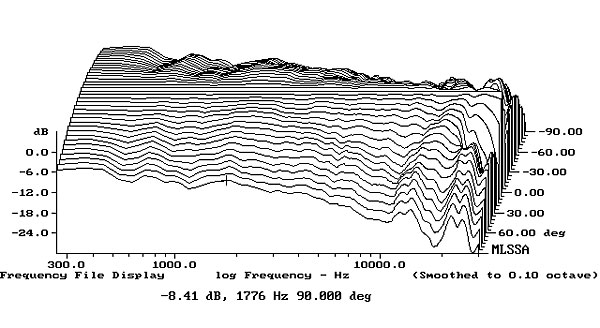

Fig.5 Wharfedale Jade 7, lateral response family at 50", normalized to response on HF axis, from back to front: differences in response 90–5° off axis, reference response, differences in response 5–90° off axis.

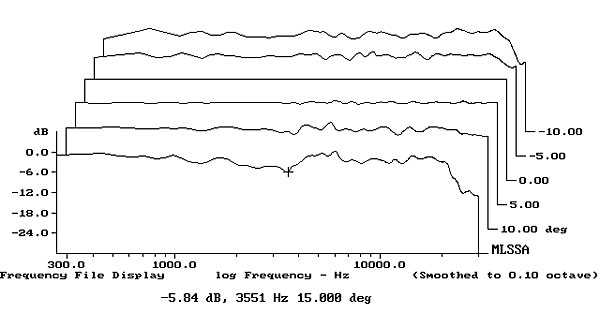

Fig.6 Wharfedale Jade 7, vertical response family at 50", normalized to response on HF axis, from back to front: differences in response 10–5° above axis, reference response, differences in response 5–15° below axis.

In the time domain, the Jade 7's step response on the tweeter axis (fig.7) suggests that the tweeter, the upper-midrange driver, and the woofers are connected in positive acoustic polarity, and the lower-midrange driver in negative polarity; this is confirmed by looking at their individual step responses (not shown). In conjunction with the phase shift from the crossover filters and the differing physical depths of the drive-units' acoustic centers, this allows the decay of each driver's step to smoothly blend with the start of the step next lower in frequency. This correlates with the excellent frequency-domain integration of their outputs seen in fig.3. Finally, other than a ridge of delayed energy at the tweeter's dome resonance frequency of 19.3kHz, the Jade 7's cumulative spectral-decay plot on the tweeter axis (fig.8) is superbly clean.

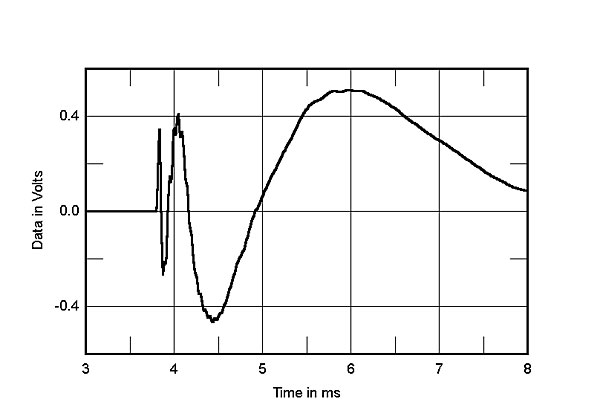

Fig.7 Wharfedale Jade 7, step response on HF axis at 50" (5ms time window, 30kHz bandwidth).

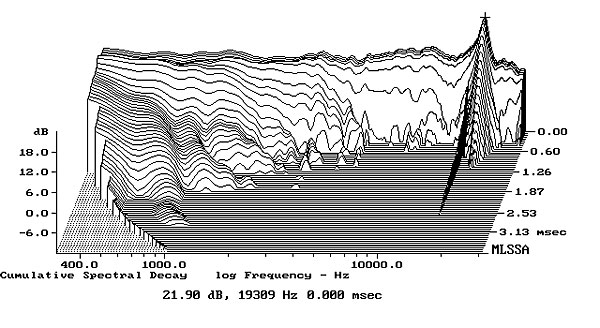

Fig.8 Wharfedale Jade 7, cumulative spectral-decay plot on HF axis at 50" (0.15ms risetime).

It is rare to find even an expensive speaker that measures as well as this. That Wharfedale's Jade 7 does so at a price of a dollar less than $4200/pair is especially commendable. I am not surprised RD liked this speaker as much he did.—John Atkinson
