Moscode 401HR power amplifier Specifications

Sidebar 1: Specifications

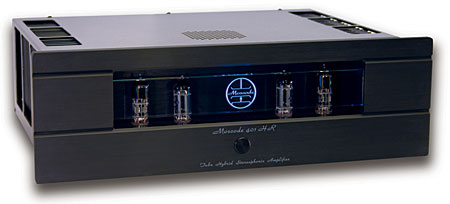

Description: Two-channel, solid-state power amplifier with tubed input stage. Tube complement: choice of 6H30Pi, 6GU7, 6DJ8, 6922, 6FQ7, 5814, 7730, or 12AU7 (2 each). Tubes supplied: two 6H30Pi, two 6GU7. Maximum output power: 200Wpc into 8 ohms (23dBW), +300W into 4 ohms (21.8dBW), both channels operating. Voltage gain (tube dependent): ca 30–33dB. THD at full output (tube dependent; value with 6H30pi for V101 & 201): <0.15% at full power. Input impedance: 100k ohms. Noise (inputs shorted): <1mV. Power requirements: ca 120W at idle (1A), ca 960W at full output (8A).
Dimensions: Chassis: 17.5" (450mm) W by 6.25" (160mm) H by 14.5" (370mm) D. Faceplate: 19" (485mm) W. Weight: 52 lbs (23.5kg) shipping.
Serial Number Of Unit Reviewed: A050005.
Price: $4995. Available direct only. Warranty: 3 years parts & labor, 90 days tubes.
Manufacturer: Moscode, 74 Cotton Mill Hill, Suite A221, Brattleboro, VT 05301. Tel.: (877) PWR-TUBE, (877) 797-8823. Web: www.moscode.com.

Company Info
Moscode
74 Cotton Mill Hill, Suite A221
Brattleboro, VT 05301
(877) PWR-TUBE
