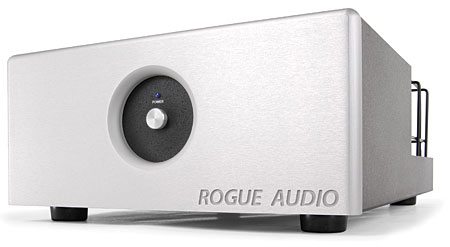

Rogue Audio M-180 monoblock power amplifier Specifications

Sidebar 1: Specifications

Description: Tube monoblock power amplifier. Tube complement (hand-matched): four KT88, two 12AU7, one 12AX7. Maximum output power: 180Wpc in ultralinear mode (22.6dBW into 8 ohms). Frequency response: 5Hz–50kHz, ±1dB. THD: <0.1% typical, >1% at rated power. Input sensitivity: 1.0V RMS. Input impedance: 200k ohms. Power requirements: 115/230V, 50/60Hz.
Dimensions: 14.5" (370mm) W by 7" (180mm) H by 19" (490mm) D. Weight: 55 lbs (25kg).
Finishes: Black or silver.
Serial Numbers Of Units Reviewed: M150-1059 & 1060.
Price: $5495/pair. Approximate number of dealers: 60. Warranty: 3 years, limited; tubes, 6 months.
Manufacturer: Rogue Audio Inc., 3 Marian Lane, Brodheadsville, PA 18322. Tel: (570) 992-9901. Fax: (570) 992-1978. Web: www.rogueaudio.com.

COMPANY INFO
Rogue Audio Inc.
3 Marian Lane
Brodheadsville, PA 18322
(570) 992-9901
