Creek Evolution 100A integrated amplifier Measurements

Sidebar 3: Measurements

I measured the Creek Evolution 100A using my Audio Precision SYS2722 system (see, and the January 2008 "As We See It"). Like many modern integrated amplifiers, the Evolution 100A covers all the bases in terms of sources and purposes, with USB, S/PDIF, and Bluetooth digital, FM, analog line-level, and analog phono inputs, as well as speaker, headphone, and line-level preamplifier outputs. To minimize strain on the amplifier's output stage, I measured the performance of the optional phono and D/A modules at the preamplifier outputs with the speaker outputs disabled.

The Evolution 100A is very similar to Creek's Evolution 50A, which Robert J. Reina reviewed in August 2013; it is instructive to refer to my measurements of that amplifier. Before measuring an amplifier, I precondition it at one-third power into 8 ohms for an hour, which, with a class-A/B design, puts the maximum thermal load on the output transistors. However, the Evolution 50A turned itself off after 20 minutes, its front panel displaying the message "Overheated" and the internal heatsinks at 140.9°F (61.3°C). By contrast, after 20 minutes running at one-third power, the Evolution 100A's heatsinks were a much cooler 109.8°F (43.3°C). As the 100A is a class-G design, I suspect that this was due to this power level lying below the point at which the high-power output devices turn on, and so is actually not the most thermally stressful condition for the main output devices.

The review sample had a problem: the only front-panel button that worked was the Source selector. Fortunately, most of the functions could be operated with the remote control, though I couldn't access the Menu or Info screens from the remote and thus couldn't access them at all.

The volume control operated in accurate 1dB steps, and its –80dB setting was actually a full mute. Measured at the speaker outputs, the Evolution 100A's maximum gain into 8 ohms was 32.5dB for single-ended line-level sources, and, as with the 50A, the gain was 6dB lower for balanced sources rather than 6dB higher, as is usually the case. The amplifier preserved absolute polarity for both single-ended and balanced inputs at all three outputs (speaker, headphone, preamplifier), meaning that the XLR jacks are wired with pin 2 hot. The maximum gain at the headphone jack was 8.9dB; at the preamplifier output, there was a negligible insertion loss of 1dB.

The balanced line-level input impedance was a uniform 42k ohms across the audioband, while the unbalanced input impedance was 10.9k ohms. The output impedance at the preamplifier jacks was an appropriate 200 ohms, while at the headphone jack it was 22 ohms—a little on the high side. The output impedance at the speaker terminals was less than 0.1 ohm, including 6' of speaker cable. As a result, the modulation of the amplifier's frequency response with our standard simulated loudspeaker was minimal (fig.1, gray trace). Commendably, there was no change in small-signal bandwidth with changes in load impedance or volume-control setting, and the 100A's –3dB point is a high 200kHz, correlating with the amplifier's superb reproduction of a 10kHz squarewave (fig.2). However, when I tried measuring the response at the headphone jack with the volume control at its maximum and 1V output, and with the speaker outputs disabled, the amplifier turned off at 60kHz and displayed the message "Overcurrent." Turning down the volume restored operation, but the Creek's protection circuitry appears to operate independently of the actual state of the output devices.


Fig.1 Creek Evolution 100A, volume control set to maximum, frequency response at 2.83V into: simulated loudspeaker load (gray), 8 ohms (left channel blue, right red), 4 ohms (left cyan, right magenta), 2 ohms (green) (2dB/vertical div.).


Fig.2 Creek Evolution 100A, small-signal, 10kHz squarewave into 8 ohms.

Channel separation was good, at >80dB below 2kHz. The wideband, unweighted signal/noise ratio, measured at the speaker terminals with the single-ended inputs shorted to ground but the volume control at its maximum, was an okay 71dB ref. 2.83V, this improving to 81dB when A-weighted. Spectral analysis of the Creek's output while it drove 1kHz at 1W into 8 ohms (fig.3) indicated that the highest-level spuriae were the even-order harmonics of the 60Hz AC frequency.

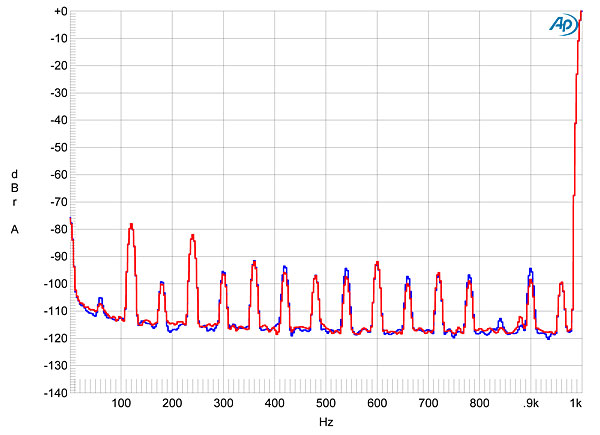

Fig.3 Creek Evolution 100A, spectrum of 1kHz sinewave, DC–1kHz, at 1W into 8 ohms (linear frequency scale).

With both channels driven, the Evolution 100A met its specified power output at 1% THD+noise, delivering 113Wpc into 8 ohms (20.5dBW, fig.4) and 180Wpc into 4 ohms (19.5dBW, fig.5). The downward slope of the traces below a few tens of watts in figs. 4 and 5 suggests that actual distortion lies below the noise floor. However, note the kink in these traces at 33W into 8 ohms and at 50W into 4 ohms. These, presumably, are the voltage levels—respectively, 16.25V into 8 ohms and 14.15V into 4 ohms—at which the output stage's higher-voltage devices turn on. But the distortion at high power below clipping remains very low in absolute terms.


Fig.4 Creek Evolution 100A, distortion (%) vs 1kHz continuous output power into 8 ohms.

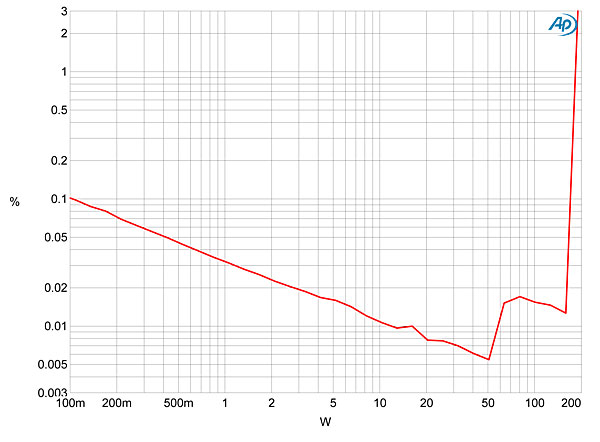

Fig.5 Creek Evolution 100A, distortion (%) vs 1kHz continuous output power into 4 ohms.

Fig.6 plots the percentage of THD+N against frequency at 12.65V, equivalent to 20W into 8 ohms and 40W into 4 ohms. The THD lies under the noise floor below 1kHz, and though it rises at higher frequencies, it is still low. Fig.7 shows the 100A's THD+N residual waveform at 10W into 8 ohms; though there is a suggestion of second-harmonic distortion, the waveform is primarily noise, even after averaging 32 captures. By contrast, the Evolution 50A's output stage appeared to be underbiased, with some crossover artifacts present in its residual waveform.

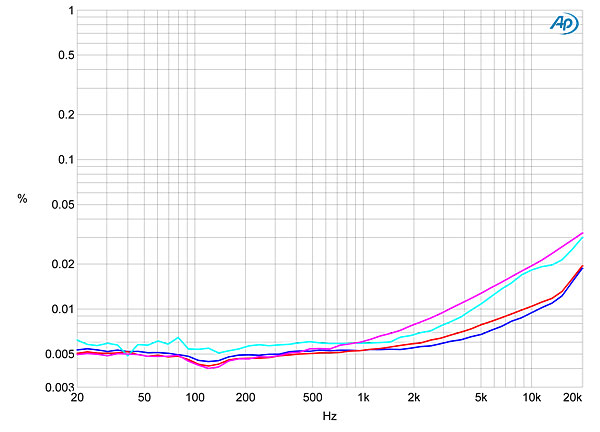

Fig.6 Creek Evolution 100A, THD+N (%) vs frequency at 12.75V into: 8 ohms (left channel blue, right red), 4 ohms (left cyan, right magenta).

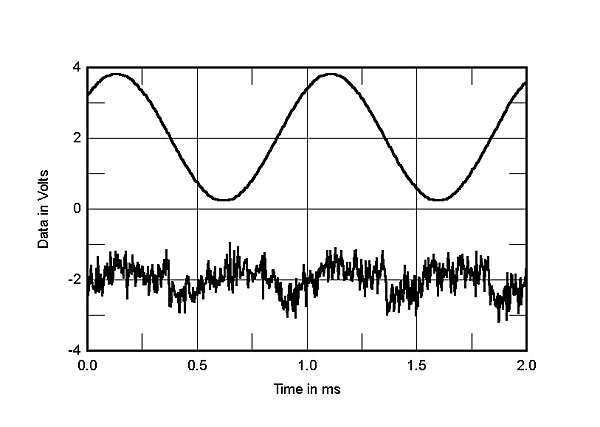

Fig.7 Creek Evolution 100A, 1kHz waveform at 10W into 8 ohms, 0.006% THD+N (top); distortion and noise waveform with fundamental notched out (bottom, not to scale).

Repeating the residual waveform capture at 40W into 8 ohms with the 100A's higher-voltage output devices turned on gave the waveform shown in fig.8. The pairs of spikes bracketing each waveform peak are due to the higher-voltage devices switching on and off each cycle. However, the distortion level is still very low, at 0.009% vs 0.006%, so this behavior looks worse than it actually is. This was confirmed by spectral analysis of the Creek's output while it drove 50Hz at a level below the switching voltage (fig.9) and above it (fig.10). At 20Wpc into 8 ohms, the highest-level harmonic is the second at just –116dB, well below the level of the power-supply spuriae, while at 80Wpc into 8 ohms, though odd-order harmonics can now be seen, these still lie at a low level. Intermodulation distortion (fig.11) was also very low.


Fig.8 Creek Evolution 100A, 1kHz waveform at 40W into 8 ohms, 0.009% THD+N (top); distortion and noise waveform with fundamental notched out (bottom, not to scale).


Fig.9 Creek Evolution 100A, spectrum of 50Hz sinewave, DC–1kHz, at 20W into 8 ohms (linear frequency scale).

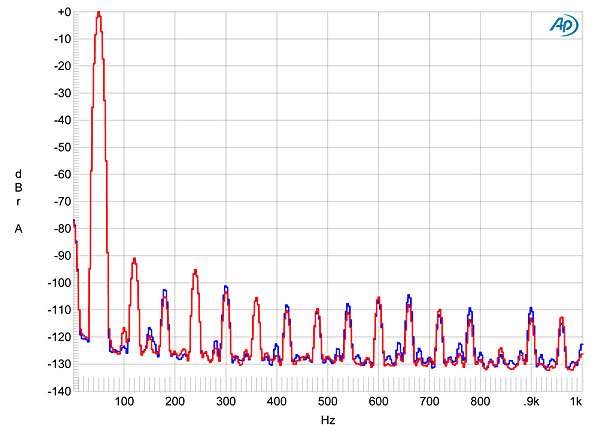

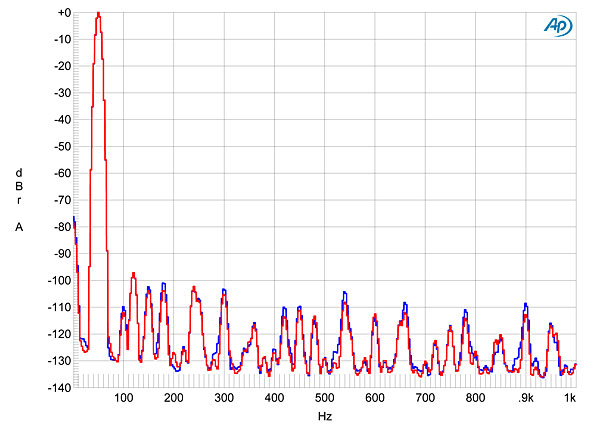

Fig.10 Creek Evolution 100A, spectrum of 50Hz sinewave, DC–1kHz, at 80W into 8 ohms (linear frequency scale).

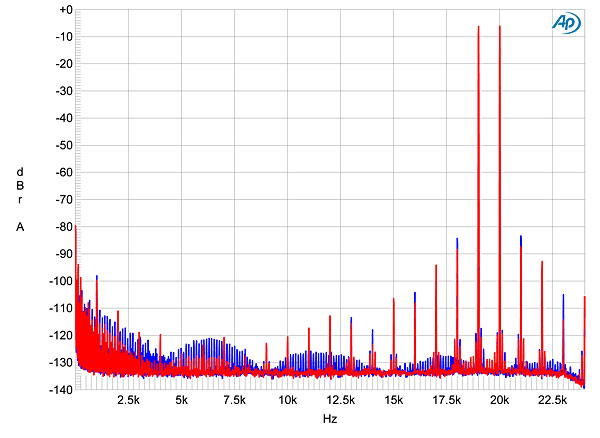

Fig.11 Creek Evolution 100A, HF intermodulation spectrum, DC–24kHz, 19+20kHz at 40W peak into 8 ohms (linear frequency scale).

The Evolution 100A's Sequel Mk.2 phono module is based on vintage dual op-amp chips: one TL072 and two NE5532s. But measured at the preamp outputs, its performance was exemplary. The voltage gain was 40.1dB, and the Sequel's input impedance was 46k ohms at 20Hz and 1kHz, 42k ohms at 20kHz—all perfect for moving-magnet cartridges. The unweighted, wideband S/N ratio, ref. 1kHz at 5mV, was a good 61dB, this improving to 70.5dB when A-weighted. The phono module was non-inverting, and its RIAA equalization was superb (fig.12), with respect to both its accuracy and the match between channels.


Fig.12 Creek Evolution 100A, phono input, response with RIAA correction (left channel blue, right red) (1dB/vertical div.).

The phono module also had superb overload margins, at close to 20dB across the audioband, and harmonic distortion was very low—with a 1kHz tone at 5mV, the highest-level harmonic was the third, at just –87dB. Intermodulation distortion (fig.13) was also very low.


Fig.13 Creek Evolution 100A, phono input, HF intermodulation spectrum, DC–30kHz, 19+20kHz at 500mV peak into 100k ohms (linear frequency scale).

Measuring the performance of Creek's Ruby digital-input module with the 100A's volume control set to its maximum, 1kHz data at –12dBFS gave rise to 754.3mV at the preamp outputs but a clipped output at the speaker terminals. Reducing the digital level to –20dBFS gave an output power of 14.2W, meaning that digital inputs should not be used with the volume control set above "–9dB" if the output stage is not to be driven into overload. Even so, I ran into the same problem mentioned earlier: With 192kHz-sampled data above 50kHz, the amplifier turned itself off even though the speaker outputs were inactive. This time, the output remained muted after I'd lowered the volume, and even after I'd turned the 100A off and on again. After some reflection, I used the remote control to turn off both sets of speakers; selecting Speakers A then brought the Creek back to life.

The TosLink inputs locked to all sample rates up through 192kHz, though the USB input was limited to 96kHz and below. Apple's USB Prober utility identified the 100A as "Evolution USB\000\000\000\000\000" from "Creek Audio," and revealed that the USB input operated in the isochronous adaptive mode. The Creek's impulse response with 44.1kHz data (fig.14) indicated that the digital reconstruction filter was a conventional time-symmetrical type, and 44.1kHz-sampled white noise at –4dBFS (fig.15, blue and cyan traces) rolled off rapidly above the Nyquist frequency (green vertical line). As a result, the image of a full-scale, 19.1kHz tone at 25kHz (44,100–19,100=25,000) was suppressed by 110dB (fig.15, red and magenta traces). The harmonics of the 19.1kHz all lie at or below –80dB (0.01%).


Fig.14 Creek Evolution 100A, digital input, impulse response at 44.1kHz (4ms time window).

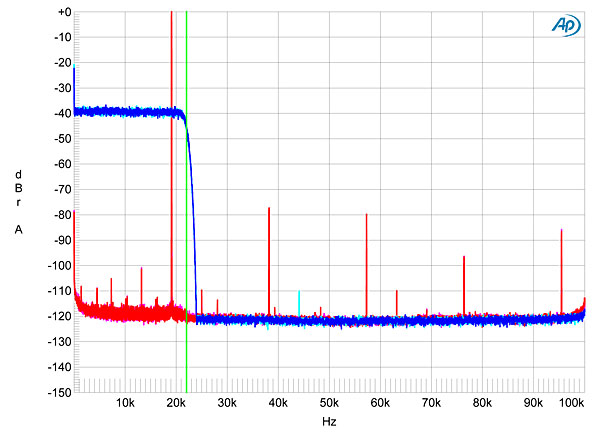

Fig.15 Creek Evolution 100A, digital input, wideband spectrum of white noise at –4dBFS (left channel blue, right cyan) and 19.1kHz tone at 0dBFS (left red, right magenta), with data sampled at 44.1kHz (20dB/vertical div.).

Fig.16 shows the Ruby module's frequency response with 44.1, 96, and 192kHz data. The audioband response is the same at all three sample rates. Though there is, as expected, a sharp rolloff above 20kHz with 44.1kHz data, the ultrasonic response with the two higher sample rates was not as extended as I had expected. With 192kHz data, the output was –3dB at 42kHz rather than at the anticipated 90kHz or so. Perhaps the DAC's digital filter at the higher sample rates is optimized for time-domain performance?

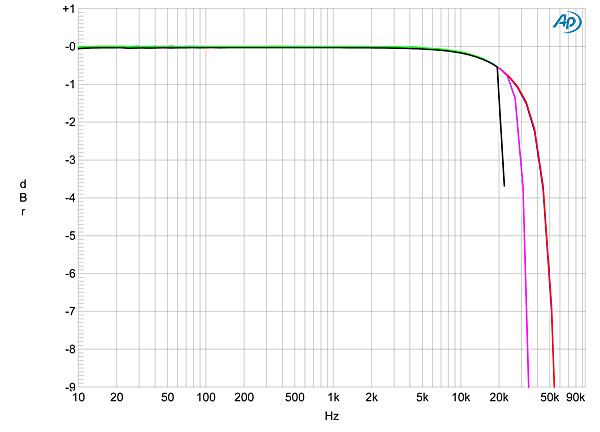

Fig.16 Creek Evolution 100A, digital input, frequency response at –12dBFS into 100k ohms with data sampled at: 44.1kHz (left channel green, right gray), 96kHz (left cyan, right magenta), 192kHz (left blue, right red) (0.5dB/vertical div.).

I test a DAC's resolution by feeding it first dithered 16-bit data representing a 1kHz tone at –90dBFS, then 24-bit dithered data representing the same signal. The results for the 100A are shown in fig.17. The drop in the noise floor with the increase in bit depth is around 16dB, suggesting resolution close to 19 bits, which is good. However, the low-level power-supply spuriae seen in earlier graphs are also evident here. Repeating this test with USB data gave the same result, confirming that the 100A's USB input correctly handles 24-bit data. With undithered 16-bit data at exactly –90.31dBFS, the result was three clearly defined DC voltage levels and a symmetrical waveform (fig.18), while with 24-bit undithered data the result was a good sinewave (fig.19).

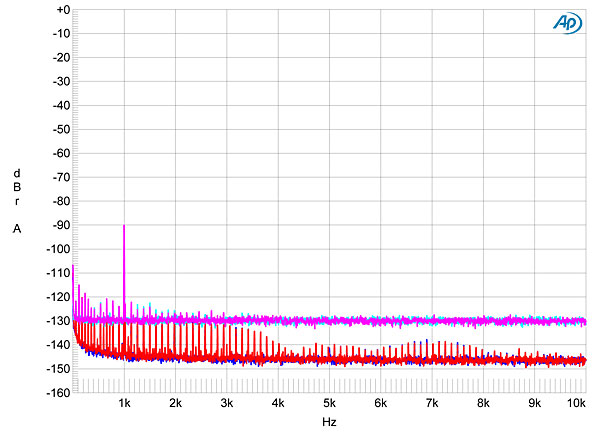

Fig.17 Creek Evolution 100A, digital input, spectrum with noise and spuriae of dithered 1kHz tone at –90dBFS with: 16-bit data (left channel cyan, right magenta), 24-bit data (left blue, right red) (20dB/vertical div.).


Fig.18 Creek Evolution 100A, digital input, waveform of undithered 1kHz sinewave at –90.31dBFS, 16-bit data (left channel blue, right red).

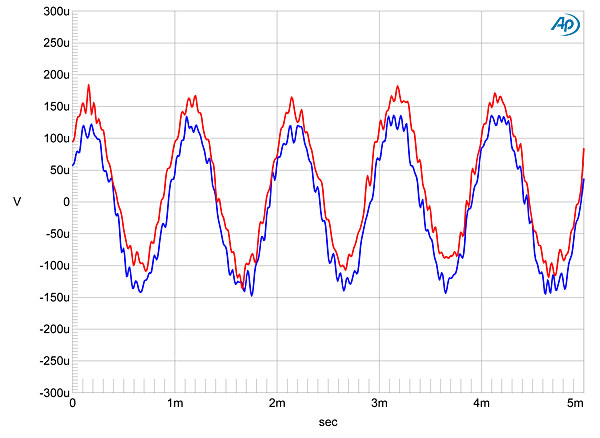

Fig.19 Creek Evolution 100A, digital input, waveform of undithered 1kHz sinewave at –90.31dBFS, 24-bit data (left channel blue, right red).

Finally, tested for rejection of jitter the TosLink and USB inputs behaved identically, with the odd-order harmonics of an LSB-level, 16-bit, low-frequency squarewave mostly at the correct level (fig.20, green line), and no jitter-related sidebands visible. However, some very low-level power-supply spuriae are visible in this graph.

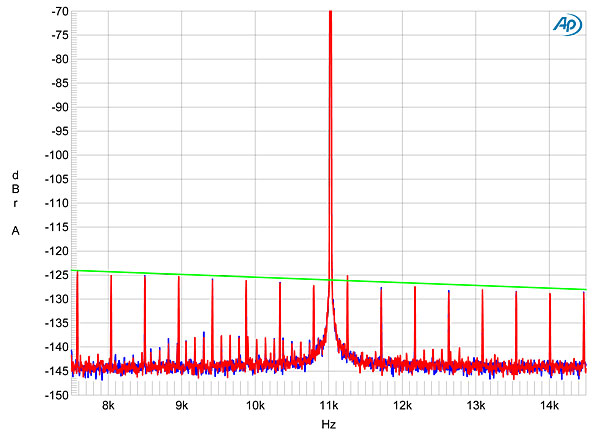

Fig.20 Creek Evolution 100A, digital input, high-resolution jitter spectrum of analog output signal, 11.025kHz at –6dBFS, sampled at 44.1kHz with LSB toggled at 229Hz: 16-bit data from SYS2722 via TosLink (left channel blue, right red). Center frequency of trace, 11.025kHz; frequency range, ±3.5kHz.

Assuming that the operational problems I encountered were specific to this well-traveled review sample, Creek's Evolution 100A integrated amplifier measured quite well. The dual-voltage-rail supply for the output stage works as advertised in increasing the output power compared with the Evolution 50A. I was particularly impressed by the $200 moving-magnet module, so it is a puzzle why HR felt it to be the 100A's weak point.—John Atkinson
