JL Audio's home high-end audio subwoofer engineer, Brett Hanes, proudly shows off the company's new $1700 ES-112 subwoofer (wood finish) that uses clever engineering principles to coax better performance and value from a less-expensive product. The ES-112's woofer features the company's only dual-spider driver construction, a smaller voice-coil, though the cone is designed for the same 3" peakpeak excursions found in the company's flagship f212 and Gotham models. Other construction simplificationsyou change line input voltage by changing fuses in external fuse holdermake the product more adaptable for international sales. It also has a high-pass output with variable frequency crossover, which will be appreciated by those of us using subwoofers in a two-channel home audio system.
Audio Research's Chris Ossanna proudly shows off the company's new $25,000/pair, two-chassis Reference 250 monoblocks, which employ the new KT-120 output tube. This amplifier has 50% more power-supply capacitance than their previous flagship, the Reference Anniversary 110, and uses the same type of Teflon coupling capacitors they sourced for their Reference Anniversary preamplifier. The front panel metering allows the consumer to check the bias and to adjust the speed of their response to either fast or slow.
Ypsilon's Demetrius Baklavas (right in photo) and Ypsilon's US distributor, Brian Ackerman of AAImports, demonstrated the Aelius amplifier to John Atkinson (left) and myselfthe amplifiers were doing a fine job of producing dynamics and superb open highs from the plasma tweeters of the new, floorstanding Lansche 7 loudspeakers.
Ypsilon Electronics’ Demetrius Baklavas designed the new $36,000/pair Aelius monoblock amplifier. The Aelius is rated at 220W into 8 ohms, 308W into 4 ohms, and 500W into 2 ohms. It is a hybrid design that features tube inputs, hand-wound interstage coupling transformers, and MOSFET output devices wired in the same type of push-pull Circlotron output configuration that was found in some Output-Transformer-Less tube (OTL) designs. The Circlotron configuration was developed years ago by Electro-Voice, and while the Aelius's output devices are all N-channel MOSFETs, the Circlotron approach is very different from conventional quasi-complementary approaches.
Each Xs channel has two chassis, one for the power supply and the other for signal amplification. The amplifier acts as a voltage source, and is rated at 300W into 8 ohms, 600W into 4 ohms, and 1200W into 2 ohms. It is biased to ensure make certain that the amplifier remains in class-A mode into all loads. Each channel has 122 output devices with a total rating of 10kW, and the extensive heatsinking allows the Xs 300 to deliver 2kW into a load "all day long." Though the Xs 300 stack was a silent exhibit, the company was using the more modest $65,000/pair Xs 150s to drive the Pass Lab RM2 loudspeakers, which showed a wide dynamic range and outstanding detailing.
Pass Labs’ engineer Wayne Colburn insisted that the name of their latest amplifier, the Xs, was not a pun. He spent over an hour detailing the 3-year design project that culminated in the company's $85,000/pair, solid-state, two-chassis-per-channel, class-A amplifier. Leaning on the 4.5-foot stack of the amplifier's stereo configuration, Wayne spoke about how the design was based on the results of an examination of transfer characteristics of a diverse set of gain devices, including tubes and SITs (silicon-carbide devices that are exclusive, we believe, to Pass Labs for use in audio). The output stage was designed to reproduce the transfer characteristics preferred by a panel of listeners, who lived with a variety of different output stages for a lengthy period of time.
"Larry, you have too many amplifiers!" exclaimed John Atkinson during a recent visit. This surprised meI didn't think it was possible to have too many amps. While I'm not going to open an amp museum, I do have a starter collection of Mark Levinson amplifiers from different eras. This either makes me exactly the right or the wrong person to size up Mark Levinson's new No.532H.
James Tanner, VP of marketing at Bryston Ltd., was frustrated. He'd borrowed a Music Vault 4000 music server to play high-resolution digital music files at Bryston's exhibit at the 2009 Consumer Electronics Show. Most of the time, the server delivered some of the best sound at that event. The rest of the time, there were dropouts and crashes. Tanner later experienced similar dropouts and crashes when he streamed hi-rez digital files over his home network to a Bryston BDA-1 digital-to-analog converter (see my review in the February 2010 issue).
I found a more relaxed Tanner at the 2010 CES. This time, he'd borrowed an Auraliti L-1000 digital file server ($3000 at www.auraliti.com), a box with no front-panel controls, no display, no hard drive, no fans, and no CD drive. Instead of a Windows operating system, the L-1000 ran a stripped-down version of the Linux open-source operating system. Its simplicity of design solved the reliability problems Tanner had encountered the year before.
Then and there, Tanner decided to ask Auraliti to help Bryston create a simple digital music file player. The result is the BDP-1.

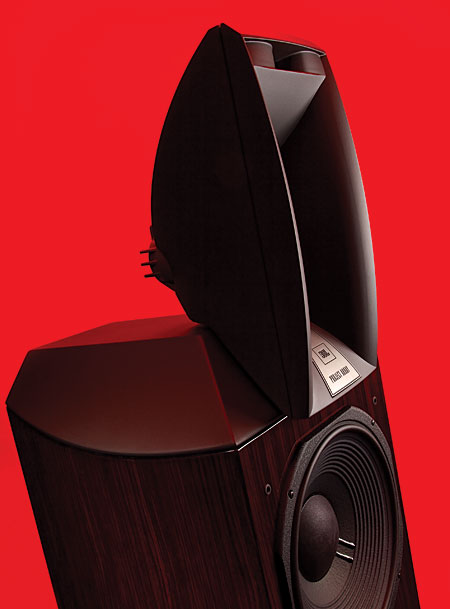

JBL was founded 60 years ago, by Jim Lansing. Its history has been amply detailed in the book The JBL Story: 60 Years of Audio Innovation, by the late John Eargle's (JBL Professional, 2006). Although it is primarily known for its pro-audio loudspeakers, the Californian company has offered a steady stream of high-performance domestic loudspeakers to the home market, including the 1971 Paragon, the L100 bookshelf speaker, and the JBL 250Ti floorstander, all of which remained in JBL's catalog for 20 years. In 1990, JBL produced the Project K2 S9500 flagship speaker for the Japanese high-end market. The K2 Project culminated in the $60,000/pair DD55000 Everest system, with its cross-firing asymmetric horns, and the subject of this review, the Synthesis 1400 Array BG, was a spin-off from the K2 project. It features horn-loaded midrange and tweeters to attain a flat response out to a claimed 48kHz.
It's been over two years since I reviewed a pair of JL Audio's Fathom f113 subwoofers. Kalman Rubinson and I both gave the f113 top marks for delivering clean, powerful bass in a wide variety of full-range systems. At the end of the review period, JL Audio's Carl Kennedy told me that they wouldn't send me another subwoofer for review until they had developed one that outperformed the Fathom f113 (footnote 1). To this day, the Fathom f113 tops the subwoofer category in Stereophile's "Recommended Components."
