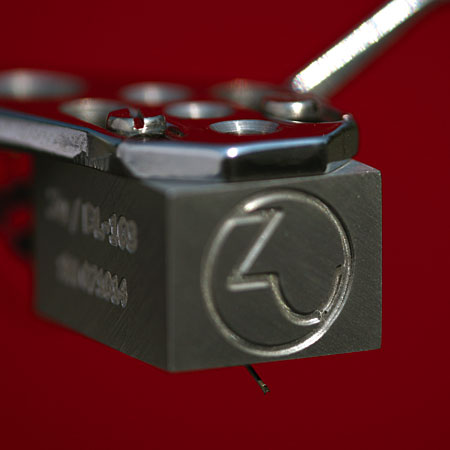

Zu Audio DL-103 MC phono cartridge Specifications

Sidebar 1: Specifications

Description: Low-output, moving-coil cartridge. Frequency range: 20Hz–45kHz. Output: 0.3mV. Compliance: 5x 10–6 cm/dyne. Channel separation: >25dB at 1kHz. Channel balance: 1dB. Cantilever: two-piece aluminum tube. Stylus tip: spherical. Internal impedance: 40 ohms. Recommended active load: >100 ohms. Recommended transformer load: unspecified. Recommended downforce: 2.5gm.
Weight: 14gm.
Serial Number Of Unit Reviewed: 0001.
Price: $399. Approximate number of dealers: Sold direct only.
Manufacturer: Zu Audio, Ogden Commercial Industrial Park, 3350 South 1500 West, Ogden, UT 84401. Tel: (800) 516-8925, (801) 627-1040. Fax: (801) 627-1108. Web: www.zuaudio.com.

COMPANY INFO
Zu Audio
Ogden Commercial Industrial Park
3350 South 1500 West
Ogden, UT 84401
(800) 516-8925
