Yamamoto A-08 power amplifier Specifications

Sidebar 1: Specifications

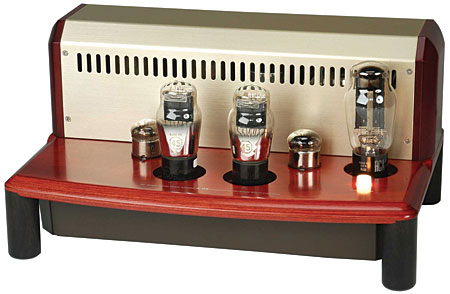

Description: Two-channel, single-ended, tube power amplifier. Tube complement: two 717A pentodes, two 45 triodes, and one 5U4G. Maximum output power: 2Wpc into 8 ohms (3dBW) at 5% THD. Frequency range: 18Hz–30kHz at 1W. Voltage gain: 15dB. Input impedance: 200k ohms.
Dimensions: 16" (410mm) W by 8.5" (220mm) H by 12" (310mm) D. Weight: 19 lbs (8.6kg).
Serial Number of Unit Reviewed: 05010060.
Price: $2250. Approximate number of dealers: 1 (sold direct only).
Manufacturer: Yamamoto Sound Craft, Inc., 726 Sakaki-tyo, Ono-city, Hyogo 675-1323, Japan. Tel: (81) 794-62-5655. Fax : (81) 794-63-6405. Web: www2.117.ne.jp/~y-s/index-e.html. US distributor: Venus Hi-Fi, 864 Pebblebrook Lane, East Lansing, MI 48823. Tel: (517) 881-7753. Web: www.venushifi.com.

COMPANY INFO
Yamamoto Sound Craft
US distributor: Venus Hi-Fi
864 Pebblebrook Lane
East Lansing, MI 48823
(517) 881-7753
