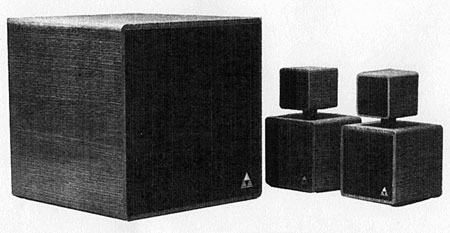

Triad Design System Seven satellite/subwoofer loudspeaker Specifications

Sidebar 1: Specifications

Description: Satellite/woofer loudspeaker system. Drivers: 5" cone midrange, 1" ferrofluid-cooled, fabric-dome tweeter (satellites), 12" polypropylene-cone woofer in separate enclosure powered by internal 70W amplifier. Frequency response: 140Hz–20kHz ±2dB (satellites), 28Hz–110Hz ±3dB (woofer). Impedance: 8 ohms (satellites), 1000 ohms (speaker-level woofer input), 47k ohms (line-level woofer input). Sensitivity: 88dB 1W/1m (satellites), woofer level control allows matching to any satellites up to sensitivity of 96dB 1W/1m. Power handling: 100W continuous, 300W program peaks. Input connection: five-way binding posts (satellites), five-way binding posts on woofer (speaker-level input) and RCA jacks (line-level input).
Dimensions: 5¼" W by 10" H by 5¼" D (satellites), 13" W by 13" H by 13" D (woofer). Shipping weight: 40 lbs.
Finish: light oak, medium oak, and walnut wood veneers with lacquer finishes or black, white, red, yellow, blue, or green lightly textured paint. Rosewood, teak, zebrawood, and other exotic veneers available on special order at extra cost.
Price: $1000 (optional stands, $100), 1990; no longer available, 2008. Approximate number of dealers: 60. Warranty: 5 years.
Manufacturer: Triad Speakers, Inc., 15835 NE Cameron Blvd., Portland, OR 97230. Tel: (877) 264.6315. Web: www.triadspeakers.com.

COMPANY INFO
Triad Speakers, Inc.
15835 NE Cameron Blvd.
Portland, OR 97230
(877) 264.6315
