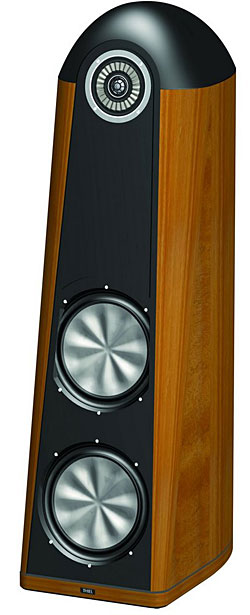

Thiel CS3.7 loudspeaker Specifications

Sidebar 1: Specifications

Description: Three-way, floorstanding loudspeaker. Drive-units: 1" (25mm) aluminum-dome tweeter mounted coincidentally within 4.5" flat aluminum midrange driver, 10" (254mm) flat aluminum woofer, 10" (254mm) flat aluminum passive radiator. Crossover slopes: acoustic first-order. Frequency response: 33Hz–26kHz, ±2dB. Phase response: ±10° minimum. Impedance: 4 ohms nominal, 2.8 ohms minimum. Sensitivity: 90 dB/2.83V/m. Recommended power: 100–600W.
Dimensions: 44.9" (1140mm) H by 12.6" (320mm) W by 21.3" (540mm) D. Weight: 91 lbs (41.5kg).
Finishes: Walnut, Black Ash, Cherry, Oak, Maple; others available at higher cost.
Serial Numbers Of Units Reviewed: 659, 660.
Price: $12,900/pair. Approximate number of dealers: 110. Warranty: 10 years.
Manufacturer: Thiel Audio Products, 1026 Nandino Boulevard, Lexington, KY 40511. Tel: (606) 254-9427. Fax: (606) 254-0075. Web: www.thielaudio.com.

COMPANY INFO
Thiel Audio Products
1026 Nandino Boulevard
Lexington, KY 40511
(606) 254-9427
