Snell XA90ps loudspeaker Specifications

Sidebar 1: Specifications

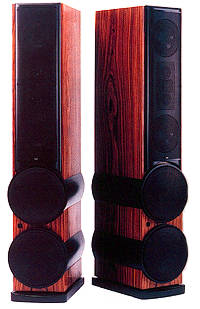

Description: Four-way floorstanding loudspeaker with 5-element "Expanding Array" line source and rear-firing tweeter. Integrated with internally powered, dual-driver subwoofer with reflex alignment. Drive-units: 1" (25mm) aluminum-dome tweeter, 1" (25mm) rear tweeter, two 2.5" (60mm) midrange drivers, two 6.5" (160mm) midwoofers, two 10" (250mm) subwoofers powered by internal 300W amplifier. Crossover frequencies: 100Hz, 500Hz, and 2.5kHz (9kHz for rear tweeter). Crossover filters: 2nd-order electrical, 4th-order acoustical. Frequency response: 32Hz-22kHz, ±3dB. Equalized response in reviewer's listening room: 25Hz-10kHz, ±3dB. Rear-panel level controls: amplifier power on/off, automatic signal sensing on/off, remote link, parametric equalizer panel (level, bandwidth, frequency), LFE level, overall bass level, rear-firing tweeter on/off, placement midbass shaping (normal/boundary). Remote: bass level, bass shape (Cinema, Reference), treble Boost/Cut). Nominal impedance: 4 ohms. Sensitivity: 90dB/W/m.
Dimensions: 54.5" (1380mm) H by 11" (280mm) W by 19.5" (500mm) D. Weight: 198 lbs (90kg) each.
Finishes: black oak or cherry, standard; others by special order.
Serial numbers of units reviewed: 12375, 12376.
Price: $7000/pair. Approximate number of dealers: 90.
Manufacturer: Snell Acoustics, 143 Essex Street, Haverhill, MA 01832. Tel: (978) 373-6114. Fax: (978) 373-6172. Web: www.snellacoustics.com
