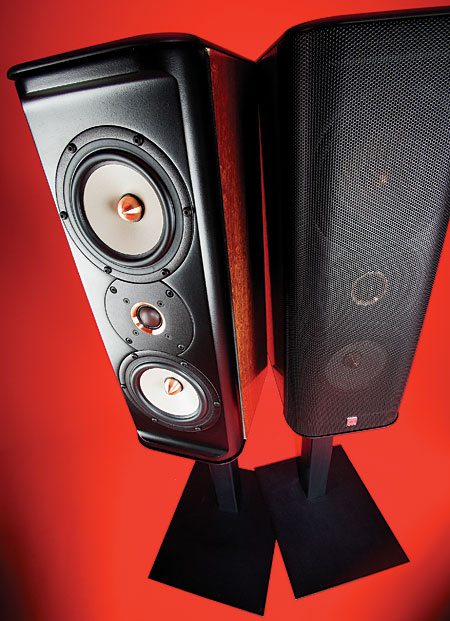

Description: Stand-mounted, magnetically shielded, sealed-box, two-way loudspeaker intended for left, right, or center use. Drive-units: 1" soft-dome tweeter, two 5.25" magnesium-cone woofers. Crossover frequency: 2kHz. Frequency response: 75Hz–22kHz, ±3dB. Dispersion angle (±1dB of on-axis response): ±15° horizontal and vertical. Nominal impedance: 4 ohms. Sensitivity: 90dB/W/m. Recommended amplifier power: 50–300W. Maximum SPL (pair): 110dB.
Dimensions: 19" (483mm) H by 7" (178mm) W by 8.75" (223mm) D. Weight: 26 lbs (11.8kg).
Finishes: Cherry veneer or hand-rubbed satin black walnut (most wood and paint finishes available on special order), with silver or black perforated metal grilles and solid aluminum end caps, anodized silver or black.
Serial Numbers Of Units Reviewed: 0269, 0270.
Price: $6000/pair. Approximate number of dealers: 160.
Manufacturer: Snell Acoustics, 300 Jubilee Drive, PO Box 3717, Peabody, MA 01961-3717. Tel: (978) 538-6262. Fax: (978) 538-6266. Web: www.snellacoustics.com.
