Simon Yorke Designs Series 9 turntable & tonearm Specifications

Sidebar 1: Specifications

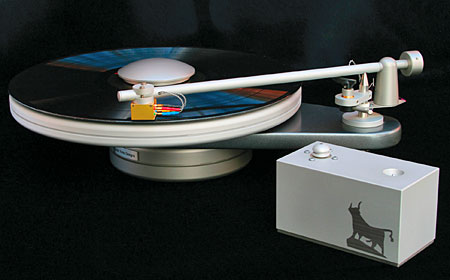

Description: Belt-driven, non-suspended turntable with unipivot tonearm and DC motor. Speeds: 331/3, 45rpm (adjustable). Speed accuracy: not specified. Wow & flutter: not specified. Rumble: not specified. Tonearm pivot to stylus tip: 233.2mm. Pivot to turntable center: 215.4mm. Offset angle: 23.64°. Overhang: 17.8mm.
Dimensions: Platter diameter plus armboard: 16" (410mm) W by 11.75" (300mm) D. Platter: 11.75" (300mm) diameter; weight 8 lbs (3.6kg). Weight of plinth with armboard: 14 lbs (6.4kg). Motor plus housing: 4.75" (120mm) W by 2.75" (70mm) H by 2.5" (65mm) D; 3 lbs (1.4kg). Total weight: 25 lbs (11.4kg).
Serial Number Of Unit Reviewed: S9fv-02.
Price: $8250 with tonearm. Approximate number of dealers: sold direct. Warranty: 2 years.
Manufacturer: Simon Yorke Designs, Calle Mayor 48, Cañada del Trigo 30520, Jumilla, Murcia, Spain. Tel: (34) 966-976-022. Fax: (34) 966-976-019. Web: www.recordplayer.com. US distributor: Sounds of Silence, 14 Salmon Brook Drive, Nashua, NH 03062. Tel: (603) 888-5104. Fax: (603) 888-2773. Web: www.soundsofsilence.com.

Company Info
Simon Yorke Designs
US distributor: Sounds of Silence
14 Salmon Brook Drive
Nashua, NH 03062
(603) 888-5104
