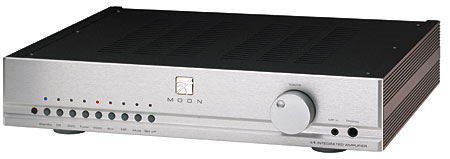

Simaudio Moon i-1 integrated amplifier Specifications

Sidebar 1: Specifications

Description: Solid-state, class-AB, remote-controlled integrated amplifier. Power-supply transformer: 320VA. Power-supply capacitance: 20,000µF. Inputs: 5 pairs single-ended (RCA). Input device types (preamp): J-FET. Maximum output power: 50Wpc into 8 ohms (17dBW), 100Wpc into 4 ohms (17dBW). Maximum output: 22V. Slew rate: 20V/µs. Maximum current: 15A peak, 9A continuous. Dynamic headroom: 3dB. Input sensitivity: 370mV–3.0V RMS. Input impedance: 11k ohms. Output impedance: 0.04 ohm. Damping factor: >200. Gain: 37dB. Signal/noise: 101dB at full power. Frequency response: 10Hz–100kHz, +0/–3dB. Crosstalk at 1kHz: –78dB. IMD: <0.05%. THD: <0.015% (20Hz–20kHz at 1W), &#60l0.02% (20Hz–20kHz at 50W).
Dimensions: 16.9" (430mm) W by 3" (76mm) H by 12.75" (324mm) D. Shipping weight: 22 lbs (10kg).
Serial Number Of Unit Reviewed: I602999.
Price: $1500. Approximate number of dealers: 80. Warranty: 10 years.
Manufacturer: Simaudio Ltd., 2002 Ridge Road, Champlain, NY 12919. Tel: (877) 980-2400, (450) 449-2212. Web: www.simaudio.com.

COMPANY INFO
Simaudio Ltd.
2002 Ridge Road
Champlain, NY 12919
(877) 980-2400
