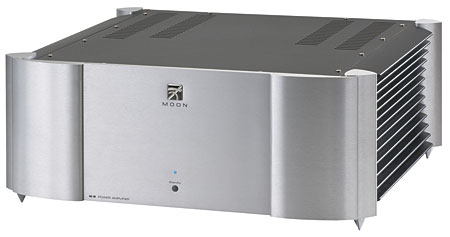

Simaudio Moon Evolution W-8 power amplifier Specifications

Sidebar 1: Specifications

Description: Solid-state, two-channel power amplifier. Inputs: 1 pair unbalanced (RCA), 1 pair balanced (XLR). Outputs: 2 pairs binding posts per channel. Maximum output power: 250Wpc into 8 ohms (24dBW), 500Wpc into 4 ohms (24dBW), 1kWpc into 2 ohms (24dBW), 1kW bridged into 8 ohms (30dBW). Voltage gain: 33dB. Frequency response: 10Hz–200kHz, +0/–3dB. Signal/noise: >106dB ref. full power. THD: <0.015%, 20Hz–20kHz at 1W; <0.04%, 20Hz–20kHz at 250W. Input impedance: 47.5k ohms. Input sensitivity: 1050mV for full output. Output impedance: 0.01 ohm. Damping factor: 800. Slew rate: 42V/µs. Maximum output current: 64A peak, 26A continuous. Power consumption at idle: 48W.
Dimensions: 18.75" (480mm) W by 7.5" (190mm) H by 16.5" (420mm) D. Weight: 95 lbs (43kg).
Serial Number Of Unit Reviewed: G468691.
Price: $10,200. Approximate number of dealers: 80. Warranty: 10 years, transferable.
Manufacturer: Simaudio Ltd., 95 Chemin du Tremblay Street, Unit 3, Boucherville, Quebec J4B 7K4, Canada. Tel: (450) 499-2212. Fax: (450) 499-2212. Web: www.simaudio.com.

COMPANY INFO
Simaudio
95 Chemin du Tremblay Street, Unit 3
Boucherville, Quebec J4B 7K4
Canada
(450) 499-2212
