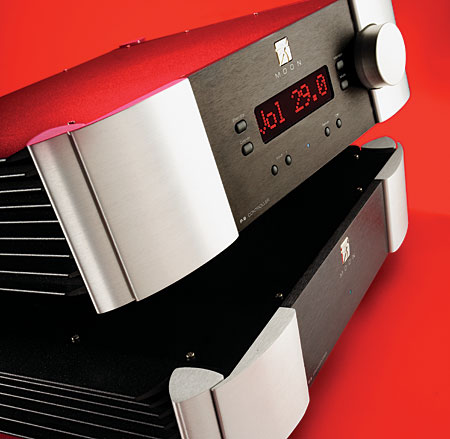

Simaudio Moon Evolution P-8 preamplifier Specifications
Description: Solid-state, two-channel, two-chassis preamplifier. Inputs: 3 pairs balanced (XLR), 4 pairs single-ended (RCA). Outputs: 2 pairs balanced (XLR), 2 pairs unbalanced (RCA, fixed and variable). Tape input/output loops: 1 pair unbalanced (RCA). Input impedance: 11k ohms. Output impedance: 50 ohms. Voltage gain: 9dB. Frequency response: 5Hz–100kHz, +0/–0.1dB. IM distortion: unmeasurable. THD: <0.002%, 20Hz–20kHz. Signal/noise ratio: 130dB, 20Hz–20kHz, ref. full output. Maximum output: 12V balanced, 6V unbalanced.
Dimensions: Preamplifier: 18.75" (480mm) W by 4" (100mm) H by 16.5" (420mm) D. Controller: 18.75" (480mm) W by 5.5" (140mm) H by 16.5" (420mm) D. Weight: 74 lbs (33kg).
Serial Number Of Unit Reviewed: G428876.
Price: $11,000. Approximate number of dealers: 80. Warranty: 10 years, transferable.
Manufacturer: Simaudio, 95 Chemin Du Tremblay Street, Unit 3, Boucherville, Quebec J4B 7K4, Canada. Tel: (450) 449-2212, toll-free (877) 980-2400 (sales). Fax: (450) 499-9947. Web: www.simaudio.com.
