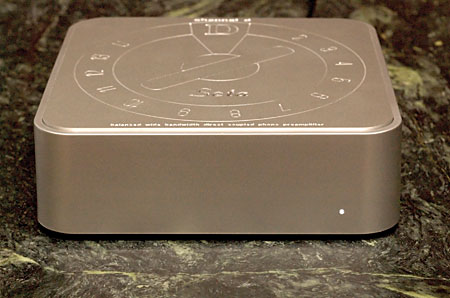

Seta Nano phono preamplifier Specifications

Sidebar 1: Specifications

Description: Solid-state phono preamplifier with flat and RIAA-equalized inputs. Inputs: XLR (balanced); RCA (functions as single-ended/balanced adapter). Outputs: Flat signal, XLR (balanced); RIAA Corrected (switchable to Flat) on single-ended RCAs. RIAA compensation curve accuracy: ±0.1dB, 20Hz–20kHz. RIAA compensation curve channel match: ±0.02dB, 20Hz–20kHz. Switchable RIAA high-pass filter: 10Hz, 12dB/octave, –0.3dB at 20Hz. Voltage Gain: 47dB (flat output): 60dB (RIAA). Frequency Response: DC–8MHz, –3dB (Flat Outputs, Balanced Input, with MC Cartridge Source Impedance of less than 25 ohms); DC–3MHz, –3dB (Flat Outputs, Single Ended Input); DC–3MHz, –3dB (RIAA Outputs). Input Load Resistance: 25, 50, 100, 150, 200, 500, 1000, 2000 ohms, rear panel adjustable; internal sockets for custom values. Input Capacitance 50 pF; internal sockets for additional capacitance. Distortion: <0.02%, 20Hz–20kHz. S/N Ratio (ref: 0dBV, 20Hz–20kHz, RMS measurement): Flat outputs: >94dB A-weighted, >92dB unweighted. RIAA compensated outputs: >86dB A-weighted, >74dB unweighted. Output impedance: <40 ohms.
Dimensions: 6" (155mm) W by 2" (50mm) H by 6" (155mm) D. Weight: 1.5 lbs (0.7kg).
Price: $1599. Approximate number of dealers: Sold direct. Warranty: 1 year parts & labor.Manufacturer: Channel D, Trenton, NJ. Tel: (609) 393-3600. Web: www.channld.com.

Company Info
Channel D
Trenton, NJ.
(609) 393-3600
