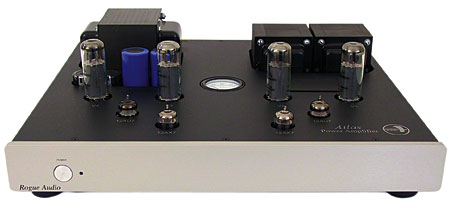

Rogue Audio Atlas power amplifier Specifications

Sidebar 1: Specifications

Description: Two-channel, tubed power amplifier. Tube complement: four KT77 (or EL34), two 12AU7, two 12AX7. Maximum output power: 55Wpc into 8 ohms (17.4dBW). THD: <0.1% typical, <1% at rated power. Input sensitivity: 1.0V RMS.
Dimensions: 18" (460mm) W by 5.5" (140mm) H by 17" (435mm) D. Weight: 50 lbs (22.7kg) net, 55 lbs (25kg) shipping.
Serial Number Of Unit Reviewed: ATL-0604.
Price: $1395. Optional cover, $100. Approximate number of dealers: 55. Warranty: 3 years (6 months for tubes).
Manufacturer: Rogue Audio Inc., 3 Marian Lane, Brodheadsville, PA 18322. Tel: (570) 992-9901. Fax: (570) 992-1978. Web: www.rogueaudio.com.

COMPANY INFO
Rogue Audio Inc.
3 Marian Lane
Brodheadsville, PA 18322
(570) 992-9901
