Revel Ultima Salon2 loudspeaker Specifications

Sidebar 1: Specifications

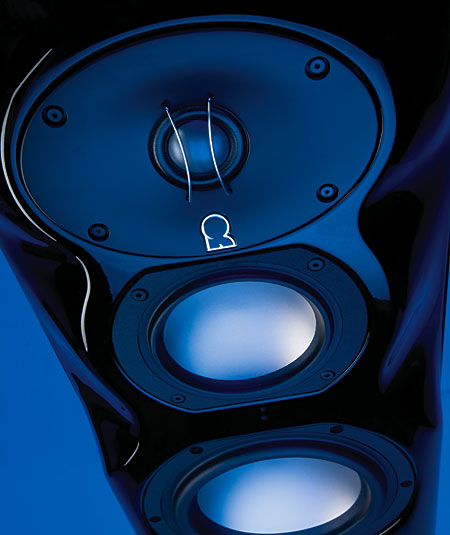

Description: Four-way, reflex-loaded, floorstanding loudspeaker. Drive units: 1" (25mm) beryllium-dome tweeter, 4" (102mm) inverted titanium-dome midrange driver, 6.5" (185mm) titanium-cone midbass driver, three 8" (210mm) aluminum-cone woofers. Crossover frequencies: 150Hz, 575Hz, 2.3kHz. Frequency response: 23Hz–45kHz, ±3dB. In-room response relative to target response: ±0.5dB, 29Hz–18kHz. Listening window (on-axis) response: ±1.0dB, 26Hz–20kHz. Low-frequency extension: –3dB at 23Hz, –6dB at 20Hz, –10dB at 17Hz. Sensitivity: 86.4dB SPL/2.83V/m (4 pi anechoic). Impedance: 6 ohms nominal, 3.7 ohms minimum at 90Hz. Recommended power: not given. Controls: Tweeter Level, Low-Frequency Compensation.
Dimensions: 53.25" (1353mm) H by 14" (356mm) W by 23" (584mm) D. Shipping weight: 178 lbs (80.7kg). Adjustable combination spike/glides add 1.5" (38mm) H.
Finishes: High-gloss black or mahogany veneer.
Serial Numbers Of Units Reviewed: 0343, 0344.
Price: $22,000/pair. Approximate number of dealers: 40.
Manufacturer: Revel, 3 Oak Park Drive, Bedford, MA 01730-1413. Tel: (781) 280-0300. Fax: (781) 280-0490. Web:
