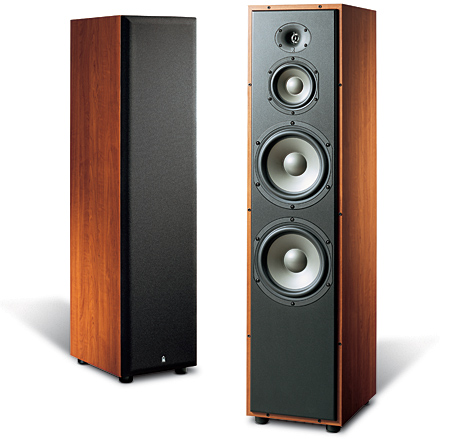

Revel Concerta F12 loudspeaker Specifications

Sidebar 1: Specifications

Description: Three-way, rear-ported, floorstanding loudspeaker. Drive-units (all Organic Ceramic Composite diaphragms): 1" ferrofluid-damped dome tweeter with underhung copper-clad aluminum voice-coil, 5.25" magnetically shielded midrange unit with 1" voice-coil, two 8" cone woofers with 1.5" voice-coils. Crossover frequencies: 575Hz, 3kHz. In-room response and first-reflections response, 55Hz–15kHz, ±1.5dB. Low-frequency extension: –10dB at 28Hz, –6dB at 40Hz, –3dB at 52Hz. Impedance: 6 ohms nominal, 3.7 ohms minimum at 188Hz. Sensitivity: 90.5dB/2.83V/m (4pi anechoic).
Dimensions: 42.3" (1074mm) H by 9.75" (248mm) W by 14.3" (363mm) D. Weight: 62.6 lbs (28.4kg) net.
Finishes: Black Ash, Natural Cherry, Maple.
Serial Numbers of Units Reviewed: 01318, 01398.
Price: $1498/pair. Approximate number of dealers: 160.
Manufacturer: Revel, 3 Oak Park, Bedford, MA 01730-1413. Tel: (781) 280-0300. Fax: (781) 280-0490. Web: www.revelspeakers.com.
